232-63-33100 2326333100 Scarifier Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-33100 2326333100 Scarifier Cylinder Seal Kit For Komatsu GD600R-1 GD605A-1
| Name | 232-63-33100 2326333100 Scarifier Cylinder Seal Kit |
| Type | Scarifier Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 721-98-04320 | 208-63-64101 | 209-63-76500 |
| 721-98-04330 | 208-63-52100 | 209-63-86301 |
| 721-98-04350 | 208-63-54101 | 209-63-86401 |
| 707-99-59650 | 208-63-72100 | 707-99-56300 |
| 20S-63-66101 | 208-63-74100 | 721-98-01360 |
| 20S-63-96101 | 208-63-95300 | 721-98-01370 |
| 20S-63-56102 | 208-63-94100 | 721-98-02220 |
| 20S-63-56101 | 707-99-67125 | 707-98-55500 |
| 20S-63-76101 | 707-99-68515 | 707-98-43130 |
| 20S-63-86102 | 707-99-67015 | YM172187-72020 |
| 20S-63-86101 | 707-99-69520 | YM172187-72040 |
| 20S-63-66300 | 707-99-50600 | YM172187-72250 |
| 20S-63-96300 | 707-99-69505 | YM172187-72770 |
| 20S-63-56500 | 707-99-69525 | YM172187-72290 |
| 20S-63-76102 | 707-99-68565 | 21D-61-16160 |
| 20S-63-86300 | 707-99-67305 | 22E-61-11250 |
| 20S-63-02030 | 707-99-67315 | 22E-61-11170 |
| 20S-63-02062 | 707-99-76140 | 22E-61-11380 |
| 20S-63-02011 | 707-99-69585 | 226-61-11320 |
| 20S-63-02040 | 707-99-69770 | 707-99-25700 |
| 20S-63-02050 | 707-99-72310 | 707-99-27740 |
| 878000413 | 707-99-65210 | 707-99-37710 |
| 878000205 | 707-99-72270 | 707-99-27390 |
| 878000412 | 707-99-65200 | 707-98-35140 |
| 878000204 | 707-99-47820 | 707-98-35270 |

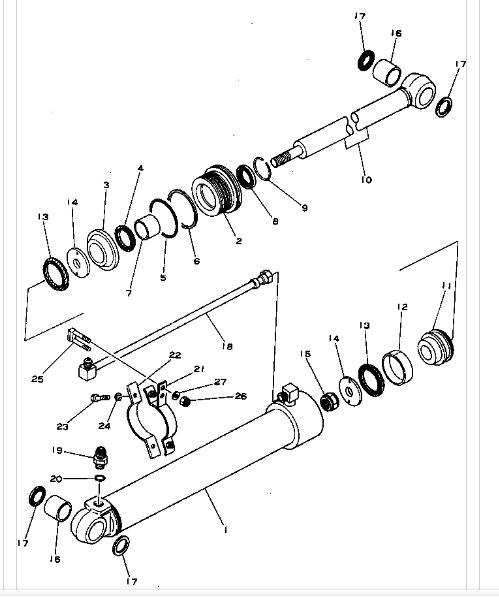

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-33100 | [1] | CYLINDER AS'Y | |
| 1. | 232-63-33140 | [1] | CYLINDER |
| 2. | 232-63-13130 | [1] | HEAD |
| 3. | 232-63-13230 | [1] | RETAINER |
| 4. | 232-63-62173 | [1] | PACKING |
| 5. | 07000-12095 | [1] | O-RING |
| 6. | 07001-02095 | [1] | RING |
| 7. | 07177-05030 | [1] | BUSHING |
| 8. | 07016-00507 | [1] | SEAL |
| 9. | 07179-00069 | [1] | RING |
| 10. | 232-63-33120 | [1] | ROD |
| 11. | 10E-63-56170 | [1] | PISTON |
| 12. | 07155-00820 | [1] | RING |
| 13. | 20R-63-56280 | [2] | U-PACKING |
| 14. | 111-63-99330 | [2] | RETAINER |
| 15. | 07165-13033 | [1] | NUT |
| 16. | 07143-10405 | [2] | BUSHING |
| 17. | 07145-00045 | [4] | SEAL |
| 18. | 232-63-33180 | [1] | TUBE |
| 19. | 07230-10422 | [1] | UNION |
| 20. | 07002-12034 | [1] | O-RING |
| 21. | 232-63-33270 | [1] | BAND |
| 22. | 237-60-14670 | [1] | CLAMP |
| 23. | 01010-30830 | [2] | BOLT |
| 24. | 01602-00825 | [2] | WASHER |
| 25. | 07283-21529 | [1] | CLIP |
| 26. | 01598-00809 | [2] | NUT |
| 27. | 01643-30823 | [2] | WASHER |
