232-63-38100 2326338100 Front Blade Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-38100 2326338100 Front Blade Cylinder Seal Kit For Komatsu GD505A-3 GD511A-1 GD521A-1 GD605A-5 GD611A-1 GD621A-1 GD623A-1 GD625A-1 GD661A-1 GD663A-2
| Name | 232-63-38100 2326338100 Front Blade Cylinder Seal Kit |
| Type | Front Blade Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-98-34120 | 707-99-27520 | 707-99-H0P10 |
| 707-98-26620 | 707-99-45180 | 707-00-02140 |
| 707-98-12320 | 707-98-37500 | 707-00-02150 |
| 707-99-11730 | 707-98-38600 | 707-00-01840 |
| 707-99-33420 | 707-98-36110 | 707-00-01940 |
| 707-98-30700 | 707-99-44280 | 707-99-44500 |
| 707-98-25960 | 707-98-27620 | 707-99-42500 |
| 707-98-26710 | 707-99-37300 | 707-98-54140 |
| 707-98-32900 | 707-99-44340 | 707-99-41110 |
| 707-98-29700 | 707-99-25870 | 707-98-41160 |
| 707-98-27500 | 707-99-37340 | 707-98-54120 |
| 707-99-36630 | 707-99-36330 | 707-98-52150 |
| 707-99-26640 | 707-99-44380 | 707-99-64050 |
| 707-99-35230 | 707-99-44290 | 411-63-15103 |
| 707-98-43510 | 707-99-37170 | 410-63-11104 |
| 707-98-36590 | 707-99-38780 | 144-63-52100 |
| 707-98-26580 | 707-99-38790 | 581-63-05041 |
| 707-98-35181 | 707-99-36300 | 707-99-82405 |
| 707-98-43170 | 707-98-38510 | 707-99-44520 |
| 707-99-27600 | 707-98-45100 | 581-43-05010 |
| 20X-63-02220 | 707-98-37510 | 707-99-53050 |
| 707-99-36710 | 707-98-38520 | 721-98-01050 |
| 707-99-26710 | 707-99-46200 | 721-98-04490 |
| 707-99-35350 | 707-98-37110 | 721-98-02410 |
| 707-99-42550 | 707-99-38720 | 721-98-02400 |
| G-30149694 G30149694 | 707-99-46320 | 721-98-03020 |
| K-30149697 K30149697 | 707-99-37290 | 721-98-03030 |
| H-30149695 H30149695 | 205-63-59300 | 567-63-23100 |
| 707-98-37600 | 205-63-59400 | 567-63-23101 |
| 707-98-34520 | 205-63-69300 | 565-74-13001 |
| 707-98-26520 | 707-99-57200 | 567-63-22100 |
| 707-98-43210 | 707-98-45250 | 566-43-05010 |
| 707-98-36630 | 707-99-27780 | YM933120-28100 |

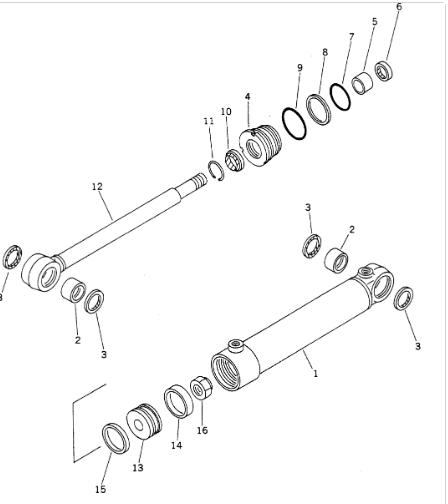

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-38100 | [1] | CYLINDER AS'Y | |
| 1. | 232-63-38140 | [1] | CYLINDER |
| 2. | 07143-10505 | [2] | BUSHING |
| 3. | 07145-00050 | [4] | SEAL,DUST OEM |
| 4. | 707-29-90920 | [1] | HEAD,CYLINDER |
| 5. | 07177-04530 | [1] | BUSHING |
| 6. | 707-51-45210 | [1] | PACKING |
| 7. | 07000-12085 | [1] | O-RING |
| 8. | 07001-02085 | [1] | RING,BACK-UP |
| 9. | 07000-02090 | [1] | O-RING |
| 10. | 112-63-15370 | [1] | SEAL,DUST |
| 11. | 07179-12057 | [1] | RING,SNAP |
| 12. | 232-63-38120 | [1] | ROD,PISTON |
| 13. | 707-36-90910 | [1] | PISTON |
| 14. | 07155-00925 | [1] | RING,WEAR |
| 15. | 707-44-90070 | [1] | RING,PISTON |
| 16. | 07165-13033 | [1] | NUT,NYLON |
