232-63-43100 2326343100 Blade Side Shift Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-43100 2326343100 Blade Side Shift Cylinder Seal Kit For Komatsu CS360SD-2 GD600R-1 GD605A-1
| Name | 232-63-43100 2326343100 Blade Side Shift Cylinder Seal Kit |
| Type | Blade Side Shift Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 569-63-41202 | 707-01-02670 | 236-63-11204 |
| 569-63-41203 | 707-99-85300 | 236-63-11205 |
| 707-99-73800 | 707-99-85350 | 236-63-42101 |
| 707-99-73820 | 707-01-15071 | 237-63-62300 |
| 707-98-26900 | 202-63-59300 | 237-63-62301 |
| 707-99-26980 | 202-63-59400 | 237-63-12100 |
| 721-98-00210 | 202-63-69300 | 237-63-12101 |
| 707-99-26135 | 202-63-52100 | 237-63-42100 |
| 721-98-01580 | 202-63-52200 | 237-63-52100 |
| 721-98-01920 | 202-63-62100 | 237-63-52101 |
| 568-63-92100 | 707-98-46220 | 236-63-32100 |
| 568-63-22101 | 203-63-79300 | 237-63-62500 |
| 568-63-22102 | 202-63-52500 | 237-63-62501 |
| 568-63-23100 | 202-63-62500 | 237-63-12500 |
| 568-63-12100 | 202-63-72500 | 237-63-42500 |
| 568-63-91100 | 21K-63-66500 | 232-63-52500 |
| 568-63-23101 | 21K-63-56500 | 237-63-32500 |
| 568-63-12101 | 21K-63-76500 | 23E-63-12101 |
| 568-63-12300 | 206-63-55300 | 23E-63-12102 |
| 561-63-22600 | 206-63-65101 | 23E-63-42101 |
| 561-63-12600 | 206-63-75101 | 23E-63-42102 |
| 707-98-37570 | 202-63-72100 | 707-98-12170 |
| 707-99-79400 | 206-63-52100 | 233-63-86300 |
| 707-99-37591 | 206-63-62101 | 23D-63-18101 |
| 707-98-03180 | 206-63-72100 | 23D-63-32100 |
| 707-98-02070 | 206-63-59300 | 23E-63-32101 |
| 707-99-79430 | 206-63-69300 | 23D-63-32201 |
| 707-99-37670 | 206-63-79300 | 233-71-00010 |
| 707-99-79440 | 707-99-47670 | 233-71-00011 |
| 707-98-37690 | 707-98-36240 | 233-71-00150 |
| 707-99-37590 | 707-99-58390 | 233-71-00151 |
| 707-99-79420 | 707-99-46140 | 233-71-00060 |
| 721-98-00300 | 707-99-57180 | 233-71-00061 |
| 707-01-02320 | 707-99-45220 | 233-71-00100 |
| 707-01-02030 | 707-99-47780 | 233-71-00101 |
| 707-01-02010 | 707-99-74060 | 232-27-05010 |
| 707-01-02020 | 721-98-00550 | 233-32-05010 |
| 707-01-02040 | 195-22-05010 | 233-32-05011 |

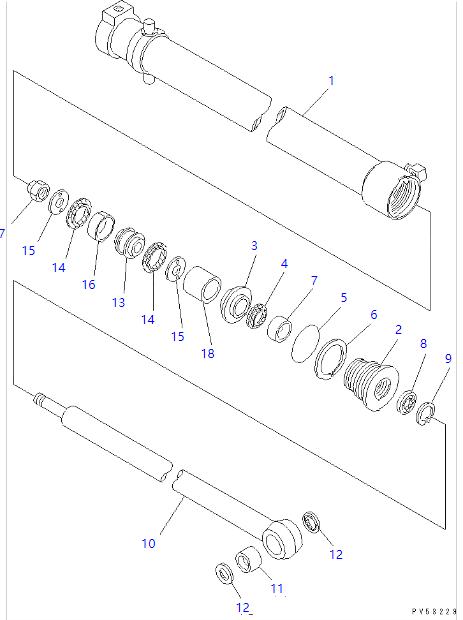

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 263-77-33360 | [1] | CYLINDER AS'Y,ROTOR SHIFT | |
| 263-78-11370 | [1] | CYLINDER AS'Y,ROTOR SHIFT | |
| 232-63-43100 | [1] | CYLINDER AS'Y,ROTOR SHIFT | |
| 1 | 232-63-43140 | [1] | CYLINDER |
| 2 | 232-63-13130 | [1] | HEAD,CYLINDER |
| 232-63-13230 | [1] | RETAINER | |
| 4 | 236-63-62173 | [1] | PACKING,ROD |
| 5 | 07000-12095 | [1] | O-RING |
| 6 | 07001-02095 | [1] | RING,BACK-UP |
| 7 | 07177-05030 | [1] | BUSHING |
| 8 | 07016-00507 | [1] | SEAL,DUST |
| 9 | 07179-00069 | [1] | RING,SNAP |
| 10 | 232-63-43120 | [1] | ROD,PISTON |
| 11 | 07143-10405 | [1] | BUSHING |
| 12 | 07145-00045 | [2] | SEAL,DUST |
| 13 | 10E-63-56170 | [1] | PISTON |
| 14 | 20R-63-56280 | [2] | U-PACKING,PISTON |
| 15 | 111-63-99330 | [2] | RETAINER |
| 16 | 07155-00820 | [1] | RING,WEAR |
| 17 | 07165-13033 | [1] | NUT,NYLON |
| 18. | 263-78-11360 | [1] | SPACER |
