232-63-53101 2326353101 Leaning Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-53101 2326353101 Leaning Cylinder Seal Kit For Komatsu GD600R-1 GD605A-1 GS360-1
| Name | 232-63-53101 2326353101 Leaning Cylinder Seal Kit |
| Type | Leaning Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-99-27520 | 707-99-H0P10 | 569-63-22103 |
| 707-99-45180 | 707-00-02140 | 566-63-11100 |
| 707-98-37500 | 707-00-02150 | 566-63-11200 |
| 707-98-38600 | 707-00-01840 | 566-63-11300 |
| 707-98-36110 | 707-00-01940 | 566-63-11400 |
| 707-99-44280 | 707-99-44500 | 569-63-05010 |
| 707-98-27620 | 707-99-42500 | 569-63-41100 |
| 707-99-37300 | 707-98-54140 | 569-63-42100 |
| 707-99-44340 | 707-99-41110 | 569-63-41202 |
| 707-99-25870 | 707-98-41160 | 569-63-41203 |
| 707-99-37340 | 707-98-54120 | 707-99-73800 |
| 707-99-36330 | 707-98-52150 | 707-99-73820 |
| 707-99-44380 | 707-99-64050 | 707-98-26900 |
| 707-99-44290 | 411-63-15103 | 707-99-26980 |
| 707-99-37170 | 410-63-11104 | 721-98-00210 |
| 707-99-38780 | 144-63-52100 | 707-99-26135 |
| 707-99-38790 | 581-63-05041 | 721-98-01580 |
| 707-99-36300 | 707-99-82405 | 721-98-01920 |
| 707-98-38510 | 707-99-44520 | 568-63-92100 |
| 707-98-45100 | 581-43-05010 | 568-63-22101 |
| 707-98-37510 | 707-99-53050 | 568-63-22102 |
| 707-98-38520 | 721-98-01050 | 568-63-23100 |
| 707-99-46200 | 721-98-04490 | 568-63-12100 |
| 707-98-37110 | 721-98-02410 | 568-63-91100 |
| 707-99-38720 | 721-98-02400 | 568-63-23101 |
| 707-99-46320 | 721-98-03020 | 568-63-12101 |
| 707-99-37290 | 721-98-03030 | 568-63-12300 |
| 205-63-59300 | 567-63-23100 | 561-63-22600 |
| 205-63-59400 | 567-63-23101 | 561-63-12600 |
| 205-63-69300 | 565-74-13001 | 707-98-37570 |
| 707-99-57200 | 567-63-22100 | 707-99-79400 |
| 707-98-45250 | 566-43-05010 | 707-99-37591 |
| 707-99-27780 | YM933120-28100 | 707-98-03180 |
| 707-99-46600 | 567-63-23900 | 707-98-02070 |
| 707-98-45220 | 567-63-12700 | 707-99-79430 |
| 707-98-47620 | 567-63-42101 | 707-99-37670 |
| 707-99-47600 | 707-99-59100 | 707-99-79440 |
| 707-99-58200 | 567-63-12600 | 707-98-37690 |

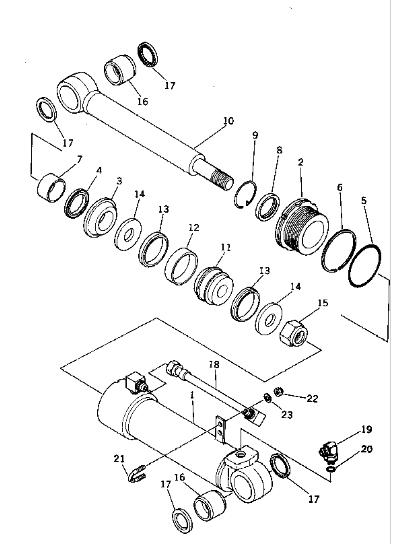

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-53101 | [1] | CYLINDER AS'Y | |
| 1. | 232-63-53140 | [1] | CYLINDER |
| 2. | 232-63-13130 | [1] | HEAD |
| 3. | 232-63-13230 | [1] | RETAINER |
| 4. | 236-63-62173 | [1] | PACKING |
| 5. | 07000-12095 | [1] | O-RING |
| 6. | 07001-02095 | [1] | RING |
| 7. | 07177-05030 | [1] | BUSHING |
| 8. | 07016-00507 | [1] | SEAL |
| 9. | 07179-00069 | [1] | RING |
| 10. | 232-63-53120 | [1] | ROD |
| 11. | 10E-63-56170 | [1] | PISTON |
| 12. | 07155-00820 | [1] | RING |
| 13. | 20R-63-56280 | [2] | U-PACKING |
| 14. | 111-63-99330 | [2] | RETAINER |
| 15. | 07165-13033 | [1] | NUT |
| 16. | 07143-10405 | [2] | BUSHING |
| 17. | 07145-00045 | [4] | SEAL |
| 18. | 232-63-53180 | [1] | TUBE |
| 19. | 07235-10422 | [1] | ELBOW |
| 20. | 07002-12034 | [1] | O-RING |
| 21. | 07283-21529 | [1] | CLIP |
| 22. | 01598-00809 | [2] | NUT |
| 23. | 01643-30823 | [2] | WASHER |
