232-63-63100 2326363100 Articulate Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-63100 2326363100 Articulate Cylinder Seal Kit For Komatsu GD600R-3 GD605A-3 GD655A-3
| Name | 232-63-63100 2326363100 Articulate Cylinder Seal Kit |
| Type | Articulate Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-98-73010 | 195-63-05040 | 707-99-84200 |
| 707-98-73020 | 195-63-05041 | 707-98-11350 |
| 707-98-73400 | 195-63-05130 | 707-98-11360 |
| 707-98-11020 | 707-98-56610 | 707-99-75600 |
| 707-98-64400 | 707-98-74410 | 707-99-77620 |
| 707-99-45525 | 707-98-74400 | 707-99-84050 |
| 707-99-45530 | 707-98-81010 | 707-99-75530 |
| 707-99-73040 | 707-99-56600 | 707-99-77400 |
| 707-99-73050 | 707-99-56610 | 131-62-05080 |
| 707-99-73070 | 707-99-74400 | 131-63-05050 |
| 707-99-73080 | 707-99-74410 | 130-63-05070 |
| 707-99-11050 | 707-99-74420 | 130-817-05030 |
| 707-99-64405 | 707-99-74430 | 130-63-05020 |
| 707-99-64440 | 707-99-74460 | 130-63-05050 |
| 707-99-45310 | 707-99-74100 | 707-98-75410 |
| 707-99-66600 | 707-99-74110 | 707-98-75420 |
| 707-99-66610 | 707-99-81010 | 707-98-95400 |
| 707-99-64200 | 707-99-81020 | 707-98-95410 |
| 707-99-45320 | 707-98-56620 | 707-98-95421 |
| 707-99-45376 | 707-98-56625 | 707-98-95430 |
| 707-99-47140 | 707-99-74020 | 707-98-84410 |
| 707-99-66620 | 707-99-74520 | 707-98-84420 |
| 707-99-66645 | 707-99-56690 | 707-98-84441 |
| 707-99-66790 | 707-98-24910 | 707-98-84450 |
| 707-99-66630 | 707-98-24700 | 707-98-22070 |
| 707-99-66655 | 707-99-24930 | 707-99-96202 |
| 707-99-66780 | 707-99-24640 | 131-63-05020 |

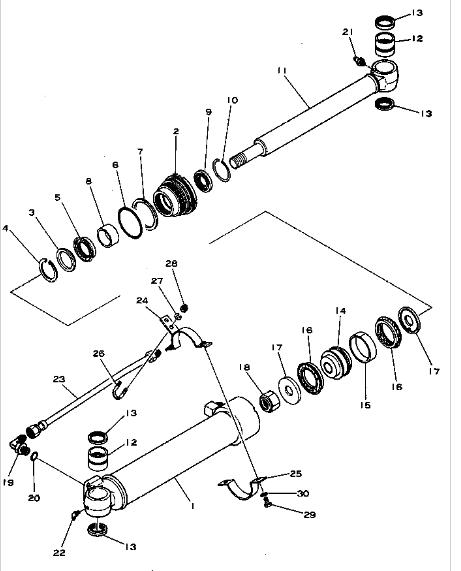

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-63100 | [2] | CYLINDER AS'Y | |
| 1. | 232-63-63140 | [1] | CYLINDER |
| 2. | 20D-63-96130 | [1] | HEAD |
| 3. | 20D-63-96190 | [1] | RETAINER |
| 4. | 04065-07025 | [1] | RING |
| 5. | 236-63-62173 | [1] | PACKING |
| 6. | 07000-12095 | [1] | O-RING |
| 7. | 07001-02095 | [1] | RING |
| 8. | 07177-05030 | [1] | BUSHING |
| 9. | 07016-00507 | [1] | SEAL |
| 10. | 07179-00069 | [1] | RING |
| 11. | 232-63-63120 | [1] | ROD |
| 12. | 07144-10405 | [2] | BUSHING |
| 13. | 07145-00045 | [4] | SEAL |
| 14. | 232-63-63270 | [1] | PISTON |
| 15. | 07155-00925 | [1] | RING |
| 16. | 232-63-12451 | [2] | PACKING |
| 17. | 232-63-63180 | [2] | RETAINER |
| 18. | 07165-13033 | [1] | NUT |
| 19. | 07235-10422 | [1] | ELBOW |
| 20. | 07002-12034 | [1] | O-RING |
| 21. | 07020-00000 | [1] | FITTING |
| 22. | 07020-00900 | [1] | FITTING |
| 23. | 232-63-63190 | [1] | TUBE |
| 24. | 232-63-63280 | [1] | BAND |
| 25. | 232-63-63290 | [1] | BAND |
| 26. | 07283-21529 | [1] | CLIP |
| 27. | 01643-30823 | [2] | WASHER |
| 28. | 01598-00809 | [2] | NUT |
| 29. | 01010-50825 | [2] | BOLT |
| 30. | 01602-20825 | [2] | WASHER |
