232-63-63101 2326363101 Articulate Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
232-63-63101 2326363101 Articulate Cylinder Seal Kit For Komatsu GD605A-1
| Name | 232-63-63101 2326363101 Articulate Cylinder Seal Kit |
| Type | Articulate Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material |
Part Numbers of Cylinder Service Kits:
| 707-99-52160 | 707-98-14790 | 707-98-34120 |
| 707-99-43690 | 707-98-14910 | 707-98-26620 |
| 707-99-52170 | 23B-63-62101 | 707-98-12320 |
| 707-98-52240 | 707-99-44180 | 707-99-11730 |
| 707-99-52230 | 707-99-64550 | 707-99-33420 |
| 707-99-52215 | 707-99-37320 | 707-98-30700 |
| 707-98-52210 | 707-99-45250 | 707-98-25960 |
| 707-99-25890 | 707-98-24330 | 707-98-26710 |
| 707-99-25880 | 707-98-29630 | 707-98-32900 |
| 707-98-52220 | 707-98-23870 | 707-98-29700 |
| 707-99-40120 | 707-98-24770 | 707-98-27500 |
| 707-98-28640 | 707-98-13220 | 707-99-36630 |
| 150-81-05010 | 707-98-29720 | 707-99-26640 |
| 154-61-05012 | 707-52-15210 | 707-99-35230 |
| 154-61-05011 | 707-98-14930 | 707-98-43510 |
| 154-61-05010 | 707-98-24280 | 707-98-36590 |
| 707-98-43520 | 707-98-29600 | 707-98-26580 |
| 707-99-52180 | 707-98-24900 | 707-98-35181 |
| 707-99-36150 | 707-98-23810 | 707-98-43170 |
| 707-99-36140 | 707-98-25110 | 707-99-27600 |
| 707-99-53620 | 707-98-26560 | 20X-63-02220 |
| 707-99-53610 | 707-98-25520 | 707-99-36710 |
| 707-99-53610 | 707-98-25710 | 707-99-26710 |
| 707-99-43710 | 707-98-32120 | 707-99-35350 |
| 707-99-43660 | 707-98-24210 | 707-99-42550 |
| 707-98-43650 | 707-98-32810 | G-30149694 G30149694 |
| 707-99-43700 | 707-98-25560 | K-30149697 K30149697 |
| 707-99-43660 | 707-98-25250 | H-30149695 H30149695 |

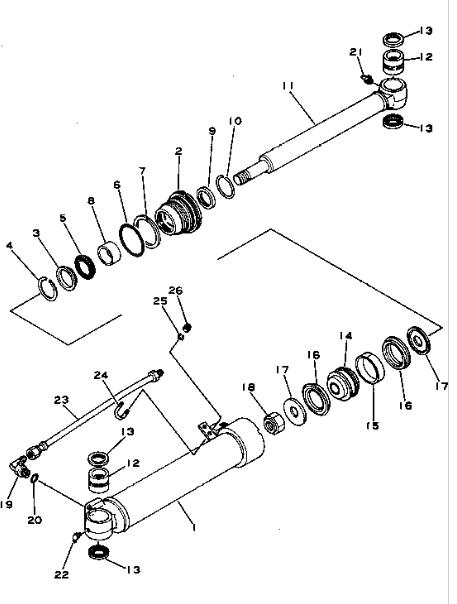

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 232-63-63101 | [2] | CYLINDER AS'Y | |
| 1. | 232-63-63140 | [1] | CYLINDER |
| 2. | 20D-63-96130 | [1] | HEAD |
| 3. | 20D-63-96190 | [1] | RETAINER |
| 4. | 04065-07025 | [1] | RING |
| 5. | 236-63-62173 | [1] | PACKING |
| 6. | 07000-12095 | [1] | O-RING |
| 7. | 07001-02095 | [1] | RING |
| 8. | 07177-05030 | [1] | BUSHING |
| 07016-00507 | [1] | SEAL | |
| 10. | 07179-00069 | [1] | RING |
| 11. | 232-63-63120 | [1] | ROD |
| 12. | 07144-10405 | [2] | BUSHING |
| 13. | 07145-00045 | [4] | SEAL |
| 14. | 232-63-63270 | [1] | PISTON |
| 15. | 07155-00925 | [1] | RING |
| 16. | 232-63-12451 | [2] | PACKING |
| 17. | 232-63-63180 | [2] | RETAINER |
| 18. | 07165-13033 | [1] | NUT |
| 19. | 07235-10422 | [1] | ELBOW |
| 20. | 07002-12034 | [1] | O-RING |
| 21. | 07020-00000 | [1] | FITTING |
| 22. | 07020-00900 | [1] | FITTING |
| 23. | 232-63-63190 | [1] | TUBE |
| 24. | 07283-21529 | [1] | CLIP |
| 25. | 01643-30823 | [2] | WASHER |
| 26. | 01598-00809 | [2] | NUT |
