20Y-26-22420 20Y2622420 Oil Seals For Komatsu Excavators HB205 HB215 PC200 PC210 PC220 PC228 PC228US PC240 PC270 PC290
20Y-26-22420 20Y2622420 Oil Seals For Komatsu Excavators HB215 PC200 PC200CA PC200LL PC200SC PC210 PC220 PC228 PC228US PC228UU PC230 PC230NHD PC240 PC250 PC270 PC290 PC308 PW200 PW220

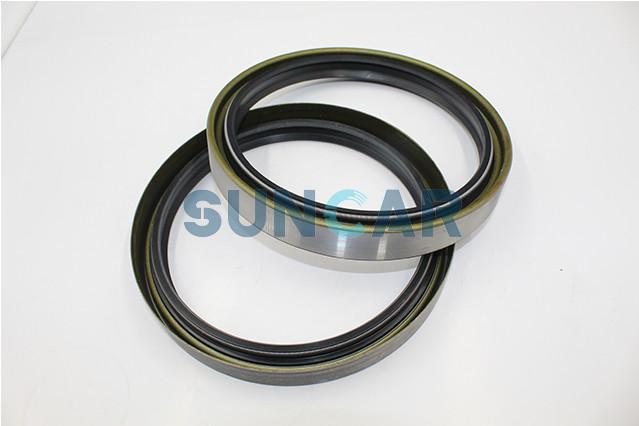

Oil seal, for part number 20Y-26-22420 20Y2622420 original equipment manufacturer quality (see notes on compatible parts). This part is supplied by the Final Drive Centre and is made by the same manufacturer that supplied the original part. These parts offer the best long-term repair solution.We have large stock,welcome to place order!
Products Details :
| Product name | 20Y-26-22420 20Y2622420 Oil Seals |
| OEM number | 20Y-26-22420 ; 20Y2622420 |
| Lip material | NBR 795 |
| AppliC-A-Tion | Construction machinery, heavy trucks,excavator,gear box,etc |
| Fits equipment | KOBELCO |
| Type | Oil seal |
| Material |
NBR A727 |
| Models |
SK200-6 |
| Place original | Guangzhou,China |
| Temp. | -40℃~+120℃ |
| Max speed | ≤25m/s |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Sealing subject liquid | Lubricant |
| Dust lip | Presence |
| Style | Oil seal |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal |
Relative Parts:
| EXCAVATORS |
HB205 HB215 PC200 PC200CA PC200LL PC200SC PC210 PC220 PC228 PC228US PC228UU PC230 PC230NHD PC240 PC250 PC270 PC290 PC308 PW200 PW220 |
| OTHER | BP500 Komatsu |
Sizes of DB Type Oil Seal:
| 160*190*23 | 90*115*20 |
| 125*155*18 | 90*115*20 |
| 125*155*18 | 90*125*28 |
| 160*195*21 | 95*120*20 |
| 160*195*21 | 100*125*20 |
| 130*160*16 | 110*140*22 |
| 140*170*18 | 115*145*22 |
| 140*170*18 | 120*150*22 |
| 150*180*18 | 125*155*22 |
| 190-225-21 | 130*160*22 |
| 190-225-21 | 122*152*21 |
| 45*70*15 | 230*260*21 |
| 50*72*18 | 232*267*21 |
| 55*78*18 | 252*281*21 |
| 60*82*18 | 75*100*20 |
| 60*85*22 | 80*105*20 |

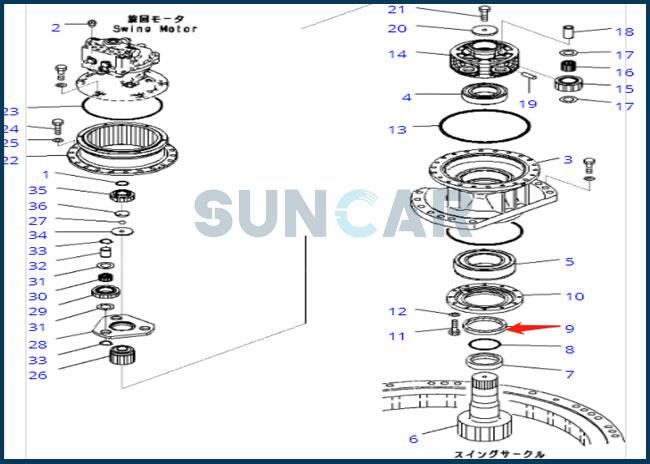

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 22U-26-21280 | [1] | Ring |
| 2 | 07042-00312 | [1] | Plug, Taper |
| 3 | 206-26-73310 | [1] | CNH |
| 4 | 206-26-73150 | [1] | Bearing |
| 5 | 206-26-73160 | [1] | Bearing |
| 6 | 206-26-73130 | [1] | Shaft |
| 7 | 206-26-73140 | [1] | Spacer |
| 8 | 07000-15100 | [1] | O-ring |
| 9 | 20Y-26-22420 | [1] | Seal |
| 10 | 206-26-73120 | [1] | Cover |
| 11 | 01010-81040 | [12] | Bolt |
| 12 | 01643-31032 | [12] | Washer |
| 13 | 07000-15310 | [1] | O-ring |
| 14 | 206-26-71480 | [1] | Carrier |
| 15 | 206-26-71440 | [4] | Gear |
| 16 | 22U-26-21320 | [8] | Bearing |
| 17 | 206-26-71520 | [8] | Washer, Thrust |
| 18 | 206-26-71510 | [4] | Pin |
| 19 | 20Y-26-21330 | [4] | Pin |
| 20 | 20Y-26-21240 | [1] | Plate |
| 21 | 112-32-11211 | [1] | Bolt |
| 22 | 206-26-71452 | [1] | Gear |
| 23 | 20K-22-11190 | [1] | O-ring |
| 24 | 01010-81440 | [22] | Bolt |
| 25 | 01643-31445 | [22] | Washer |
| 26 | 206-26-71430 | [1] | Gear |
| 27 | 04260-01270 | [1] | Ball, Steel |
| 28 | 206-26-71471 | [1] | Carrier |
| 29 | 206-26-71420 | [3] | Gear |
| 30 | 20Y-27-22210 | [3] | Bearing |
| 31 | 22U-26-21230 | [6] | Washer, Thrust |
| 32 | 206-26-71210 | [3] | Pin |
| 33 | 04064-03515 | [6] | Ring, Snap, for Shaft |
| 34 | 206-26-71350 | [1] | Holder |
