233-71-00101 2337100101 Scarifier Lift Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
233-71-00101 2337100101 Scarifier Lift Cylinder Seal Kit For KOMATSU GD31-1 GD31-3H
| Name | 233-71-00101 2337100101 Scarifier Lift Cylinder Seal Kit |
| Type | Scarifier Lift Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | IDI |
Part Numbers of Cylinder Service Kits:
| 707-98-25031 | 234-63-32300 | 707-99-64400 |
| 707-02-08120 | 234-63-13001 | 707-99-67110 |
| 707-98-11180 | 234-63-43001 | 707-99-64250 |
| 707-98-15400 | 234-72-05130 | 707-99-73150 |
| 707-98-22250 | 234-63-23001 | 707-99-64010 |
| 707-98-23270 | 234-63-18800 | 7079968660 |
| 707-98-24040 | 234-63-66100 | 707-99-24120 |
| 707-98-24400 | 707-98-34500 | 707-98-62120 |
| 707-98-25030 | 234-63-23002 | 707-99-64040 |
| 707-98-25230 | 23C-63-13101 | 707-99-75490 |
| 707-98-25340 | 707-98-34500 | 707-99-74080 |
| 707-98-25420 | 234-63-32200 | 707-99-64410 |
| 707-98-25690 | 234-63-18701 | 707-99-68660 |
| 707-98-40130 | 234-63-18700 | 7079862120 |
| 707-99-05620 | 23C-63-23101 | 707-99-32250 |
| 707-99-24320 | 23C-63-32100 | 707-98-12100 |
| 707-99-25280 | 707-99-A9030 | 707-98-24820 |
| 707-99-26200 | 23C-63-28101 | 707-99-32110 |
| 707-99-26210 | 234-63-25001 | 707-99-32140 |
| 707-99-26220 | 707-99-A9040 | 707-98-12110 |
| 707-99-35620 | 707-99-A9020 | 707-99-11040 |
| 707-99-66670 | 707-98-24530 | 707-99-67540 |
| 721-98-01230 | 234-63-28100 | 707-99-58210 |
| 721-98-01460 | 234-63-18801 | 707-99-77300 |
| 721-98-04460 | 232-63-86100 | 7079958210 |
| 721-98-04660 | 23C-63-43101 | 707-99-65420 |

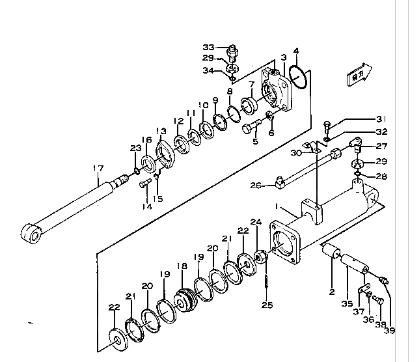

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 233-71-00101 | [1] | CYLINDER AS'Y | |
| 1. | 233-71-15111 | [1] | CYLINDER |
| 2. | 232-27-12120 | [1] | BUSHING |
| 3. | 233-27-12211 | [1] | HEAD |
| 4. | 07000-03095 | [1] | O-RING |
| 5. | 01040-31855 | [4] | BOLT |
| 6. | 01602-01854 | [4] | WASHER |
| 7. | 131-60-16241 | [1] | BUSHING |
| 8. | 131-60-16250 | [1] | RING |
| 9. | 131-60-16260 | [1] | RETAINER |
| 10. | 131-60-16271 | [1] | U-RING |
| 11. | 131-60-16281 | [1] | HEEL |
| 12. | 131-60-16290 | [1] | BUSHING |
| 13. | 131-60-16311 | [1] | GLAND |
| 14. | 01040-31445 | [2] | BOLT |
| 15. | 01602-01442 | [2] | WASHER |
| 16. | 130-09-11631 | [1] | SEAL |
| 17. | 233-71-15211 | [1] | ROD |
| 18. | 140-60-15210 | [1] | PISTON |
| 19. | 130-60-15270 | [2] | RING |
| 20. | 130-60-15260 | [2] | SEAL |
| 21. | 130-60-15250 | [2] | RING |
| 22. | 130-60-15242 | [2] | HOLDER |
| 23. | 130-60-15230 | [1] | O-RING |
| 24. | 01513-33031 | [1] | NUT |
| 25. | 04050-06055 | [1] | PIN |
| 26. | 233-71-15412 | [1] | TUBE |
| 27. | 07232-00522 | [1] | ELBOW |
| 28. | 07000-03022 | [1] | O-RING OEM |
| 29. | 07239-02410 | [1] | NUT |
| 30. | 07282-02288 | [1] | CLAMP |
| 31. | 01040-31020 | [2] | BOLT |
| 32. | 01602-01030 | [2] | WASHER |
| 33. | 07230-00522 | [1] | UNION |
| 35 | 233-71-15310 | [1] | PIN |
| 36 | 233-71-15320 | [1] | LOCK |
| 37 | 01000-31016 | [2] | BOLT |
| 39 | 07020-00000 | [1] | FITTING |
