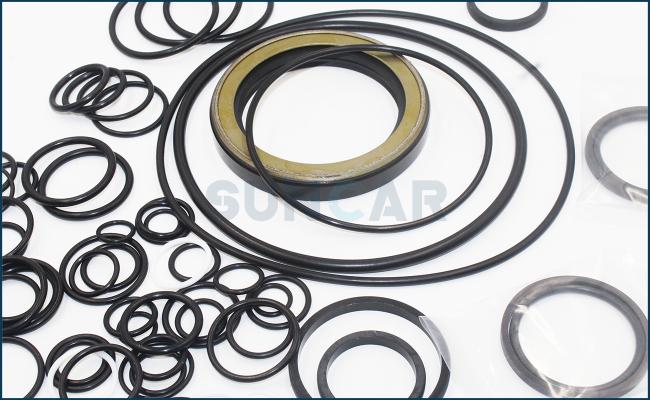

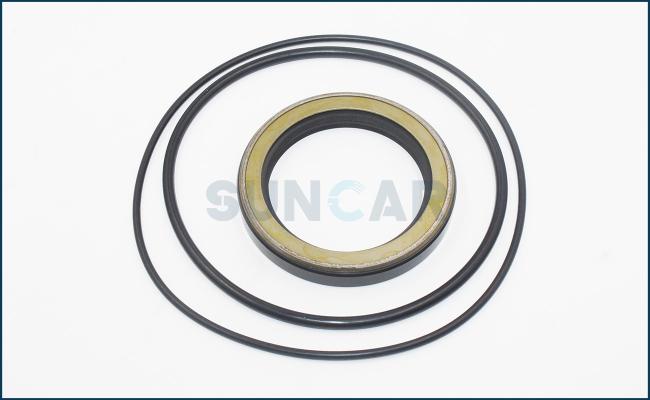

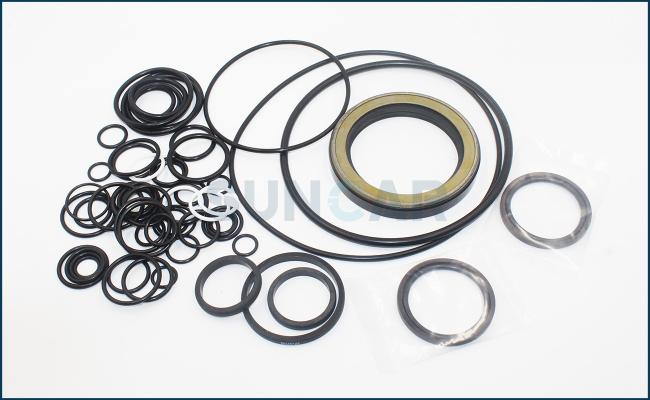

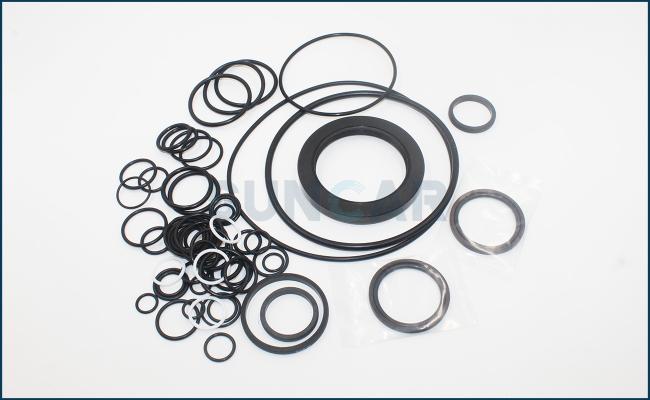

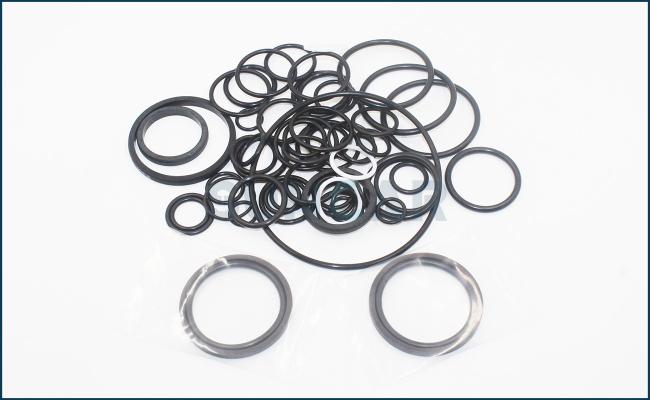

CA3699655 369-9655 3699655 Pump GP-PISTON Seal Kit For C-A-T Excavator Main Pump 374FL 390FL
CA3699655 369-9655 3699655 Pump GP-PISTON Seal Kit For C-A-T Excavator Main Pump 374FL 390FL
Description: Pump seal kit use in pump,main function is sealing oil.The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaf.
| Product name | CA3699655 369-9655 3699655 Pump GP-PISTON Seal Kit |
| Brand | SUNCAR |
| OEM No. |
XJBN-00971 XJBN00971 2437U407R300 |
| Color | As per standard color |
| Pump number |
CA3699655 369-9655 3699655 |
| AppliC-A-Ted model |
374FL 390FL |
| Feature |
Oil resistance, Heat resistance, Durable, Sealing performance, Manufacture |
| Advantage |
1. Products are enjoying great reputation for its diversifiC-A-Tion,Innovation,and Superior Quality |
| Part name | Main pump seal kit |
| Relative seal kit | Boom cylinder seal kit / Arm cylinder seal kit / Swing motor seal kit / Travel motor seal kit / Main pump seal kit / Pilot pump seal kit / Regulator valve seal kit / Main control valve seal kit |
| Package | PP bag, carton, wooden box, or as required |
| AppliC-A-Tion |
Machinery repair shops, excavator repair shops;Excavator; |
| MOQ | 100 sets |
| Type | Excavator seal kit;Hydraulic seal kit;Main pump seal kit |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Relative Brand |
Komatsu,Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar, Kobelco,SUNCARVOLVO,Kato,Samsung,LiebherrI,Mitsubishi and more. |
| Packaging | Nuetral packaging or OEM packaging |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Forwarder | Your local forwarder or we find for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
| Loading port |
Huangpu port,China |
| About us | The scope of our business Excavator parts for excavator of various models and brands |

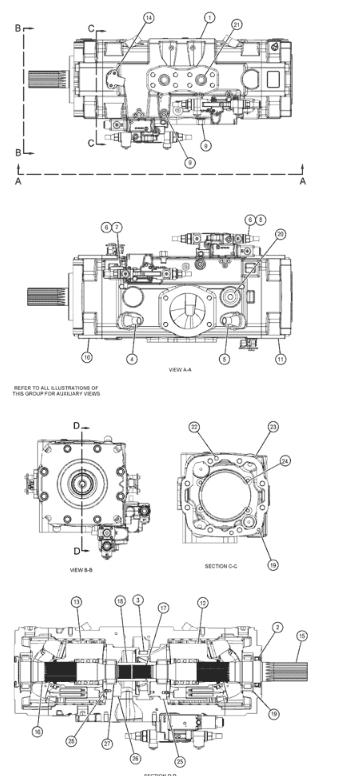

Parts on group MAIN PUMP:
| Pos. | Part No | Qty | Parts name |
| 1 | 241-4007 | [4] | SCREW-LOCK |
| 2 | 326-4428 | [1] | SEAL-SHAFT |
| 3 | 165-9353 | [1] | BLOCK |
| 4 | 458-6021 Y | [1] | CONTROL AS-PISTON PUMP (FRONT) |
| 5 | 458-6022 Y | [1] | CONTROL AS-PISTON PUMP (REAR) |
| 6 | 458-6023 Y | [2] | VALVE GP-PUMP CONTROL |
| 7 | 514-1339 | [1] | LEVER AS-CONTROL (FRONT) |
| 8 | 514-1340 | [1] | LEVER AS-CONTROL (REAR) |
| 9 | 458-6026 | [2] | VALVE GP-SHUTTLE |
| 10 | 458-6027 Y | [1] | HOUSING GP-PUMP (FRONT) |
| 11 | 458-6028 Y | [1] | HOUSING GP-PUMP (REAR) |
| 12 | 458-6029 Y | [1] | ROTATING GP-PUMP (FRONT) |
| 13 | 458-6030 Y | [1] | ROTATING GP-PUMP (REAR) |
| 14 | 458-6031 | [2] | SENSOR GP-POSITION |
| 6V-8653 M | [2] | BOLT-SOCKET HEAD (M6X1X40-MM) | |
| 448-1451 | [1] | SENSOR | |
| 369-9618 | [1] | SENSOR GP-POSITION | |
| 107-3117 | [1] | SEAL-O-RING | |
| 15 | 458-6032 | [1] | SHAFT-FRONT |
| 16 | 458-6033 | [1] | SHAFT-REAR |
| 17 | 436-4966 | [1] | RETAINER-RING |
| 18 | 458-6035 | [1] | COUPLING |
| 19 | 123-2017 | [6] | PLUG-BREAK OFF |
| 20 | 464-7720 | [1] | PLUG |
| 21 | 9T-3871 | [2] | SEAL-RECTANGULAR |
| 22 | 464-9280 | [4] | PIN-CYLINDER |
| 23 | 464-9278 | [2] | GASKET |
| 24 | 464-9286 M | [8] | SCREW-STOP (M8X1.25X15-MM) |
| 25 | 512-4657 | [1] | BLOCK |
| 26 | 512-5286 | [1] | BLOCK |
| 27 | 464-9279 | [2] | BEARING |
| 28 | 512-5287 | [2] | PIN-CYLINDER |
| 458-6037 Y | [1] | KIT-SEAL (MAIN HYDRAULIC PUMP) | |
| 458-6038 Y | [2] | KIT-SEAL (MAIN HYDRAULIC PUMP)(HEAD) | |
| 458-6036 Y | [2] | KIT-BEARING (SHAFT) | |
| 458-6965 Y | [2] | KIT-BEARING (SWASHPLATE) |
