21X-63-02040 21X6302040 Cylinder Assy Seal Kit For Komatsu Grader Scarifier Cylinder GD305A-1 GD355A-1 GD405A-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
21X-63-02040 21X6302040 Cylinder Assy Seal Kit For Komatsu Grader Scarifier Cylinder GD305A-1 GD355A-1 GD405A-2
| Name | 21X-63-02040 21X6302040 Cylinder Assy Seal Kit For Komatsu Grader Scarifier Cylinder |
| Type | Boom Offset Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | IDI |
Part Numbers of Cylinder Service Kits:
| 707-99-78730 | 707-98-15400 | 234-72-05130 |
| 707-99-76230 | 707-98-25230 | 23C-63-13101 |
| 707-99-69540 | 721-98-04660 | 23C-63-43101 |
| 707-99-76240 | 707-99-05620 | 23C-63-23101 |
| 707-99-69670 | 707-99-26200 | 23C-63-28101 |
| 707-99-78700 | 707-99-26210 | 234-63-25001 |
| 707-99-72390 | 707-99-24320 | 23C-63-32100 |
| 707-99-89220 | 707-99-35620 | 707-99-A9020 |
| 707-99-77050 | 707-99-26220 | 707-99-A9040 |
| 707-99-66240 | 707-99-25280 | 707-99-A9030 |
| 707-99-14610 | 707-99-25270 | 707-99-A9050 |
| 707-99-67010 | 721-98-00480 | 707-99-A9010 |
| 707-99-67300 | 721-98-00580 | 707-98-30530 |
| 707-99-67310 | 234-63-63001 | 707-98-26780 |
| 707-99-58110 | 707-98-26600 | 707-98-26950 |
| 707-99-58370 | 234-63-43000 | 707-98-04570 |
| 707-99-58050 | 234-63-23000 | 23B-63-X1220 |
| 707-99-58060 | 234-63-53002 | 23B-63-X1330 |
| 707-99-58080 | 234-63-28001 | 23B-63-Z1330 |
| 707-99-58081 | 707-98-26410 | 23B-63-72102 |
| 707-99-58090 | 707-98-26510 | 707-99-39710 |
| 707-99-67870 | 707-98-26441 | 707-98-22820 |
| 707-99-67090 | 707-98-26690 | 707-99-59760 |
| 707-99-72240 | 707-98-34050 | 707-98-46300 |
| 707-99-59610 | 707-98-32010 | 707-98-48610 |
| 707-99-67280 | 707-98-32080 | 707-99-50500 |
| 707-99-58360 | 707-98-52100 | 707-98-39610 |

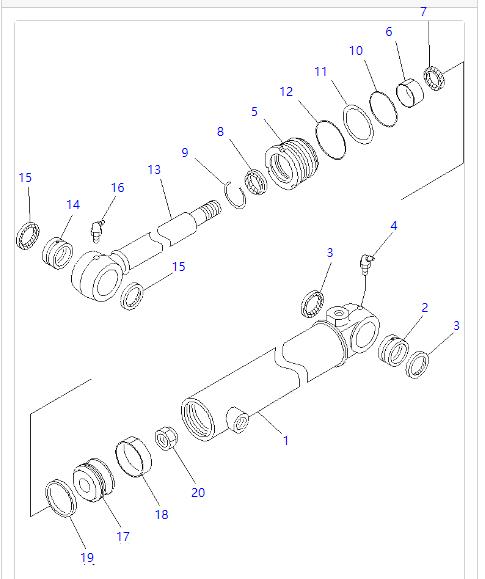

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 23E-63-32101 | [1] | CYLINDER ASSY | |
| 1. | 23E-63-32140 | [1] | CYLINDER |
| 2. | 07144-10404 | [1] | BUSHING |
| 3. | 07145-00040 | [2] | SEAL,DUST |
| 4. | 07020-00675 | [1] | FITTING,GREASE |
| 5. | 707-29-70930 | [1] | HEAD,CYLINDER |
| 6. | 07177-04025 | [1] | BUSHING |
| 7. | 707-51-40210 | [1] | PACKING,ROD |
| 8. | 198-63-75190 | [1] | SEAL,DUST |
| 9. | 07179-12052 | [1] | RING,SNAP |
| 10. | 07000-12065 | [1] | O-RING |
| 11. | 07001-02065 | [1] | RING,BACK-UP |
| 12. | 07000-02070 | [1] | O-RING |
| 13. | 23E-63-32120 | [1] | ROD,PISTON |
| 16. | 07020-00900 | [1] | FITTING,GREASE |
| 17. | 707-36-70912 | [1] | PISTON |
| 18. | 07155-00720 | [1] | RING,WEAR |
| 19. | 707-44-70070 | [1] | RING,PISTON |
| 20. | 07165-12426 | [1] | NUT,NYLON |
