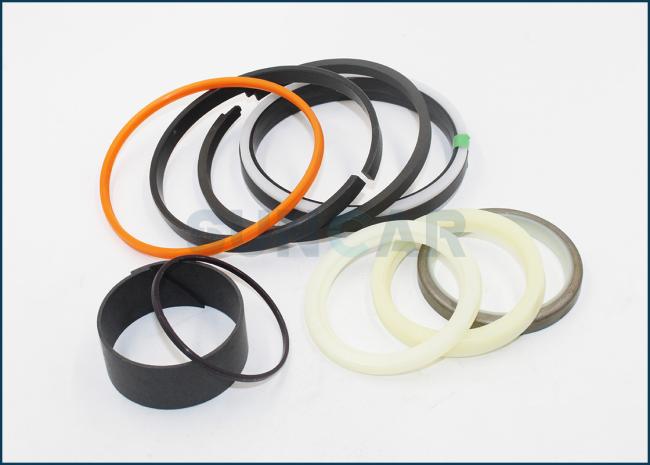

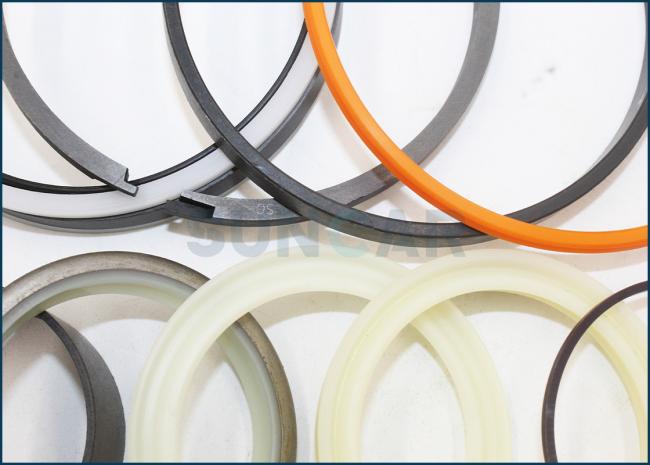

84259221 Seal Kit For Case Backhoe Loader Dipper Cylinder 580N 580N EP 580SN 580SN WT 590SN
84259221 Seal Kit For Case Backhoe Loader Dipper Cylinder 580N 580N EP 580SN 580SN WT 590SN
| Name | 84259221 Seal Kit |
| Model | 580N 580N EP 580SN 580SN WT 590SN |
| Part numbers | 84259221 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| 191747A1 | LZ007310 | LZ010940 |
| 84259225 | LZ00483 | LZ010160 |
| 84259227 | LZ00484 | LZ012040 |
| 84259222 | LZ00482 | LZ012020 |
| 84259219 | LZ00440 | LZ012050 |
| 84259323 | LZ00495 | LZ12030 |
| 84257772 | LZ00496 | LZ011260 |
| LZ008290 | LZ00620 | LZ011310 |
| LZ008350 | LZ00621 | LZ013490 |
| LZ008380 | LZ00464 | LZ013720 |
| LZ00448 | LZ00463 | LZ012090 |
| LZ00449 | LZ006970 | LZ012100 |
| LZ00450 | LZ006980 | LZ012110 |
| LZ00453 | LZ006960 | LZ013760 |
| LZ00456 | LZ00470 | LZ013800 |
Parts on group (580N) - BACKHOE LOADER (LIVERY):
| Pos. | Part No | Qty | Parts name |
| 1 | 47458137 | [1] | HYDRAULIC CYLINDER,57.2mm Rod, 108mm Bore, 628.5mm Stroke |
| 2 | 84259221 | [1] | SEAL KIT,57.2mm Rod x 108.0mm Bore |
| 3 | G110530 | [1] | RING,108mm OD, Ext |
| 4 | 86982443 | [1] | SPECIAL BOLT,1" 3/8 x 3.50 L |
| 5 | 233104A1 | [1] | RING,103.36mm ID, Ext |
| 6 | 87615483 | [1] | SEAL,100.05mm ID x 108.33mm OD x 4.85mm Thk |
| 7 | 1346476C1 | [1] | RING,57.15mm ID, Int |
| 8 | 1542877C1 | [1] | SEAL KIT,57.2mm Rod |
| 9 | D95145 | [1] | WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W |
| 10 | 84297603 | [1] | PISTON ROD/GLAND |
| 11 | 84238804 | [1] | GLAND |
| 12 | 84290399 | [1] | BARREL,107.8mm Bore Dia |
| 13 | 84594312 | [1] | ROD,57.2mm OD x 851.27mm L |
| 14 | 1346101C1 | [2] | RING,60.19mm ID x 70mm OD x 39mm L |
| 15 | NSS | [1] | NOT SOLD SEPARAT |
| 16 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF |
| 17 | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term).
2. Quoting our competitive price for you.
3. Place an order after approving the quotation or products.
4. We will send Proforma Invoice or sales confirmation.
5. You prepay by T/T or Paypal or Western Union or through bank.
6. We will starting to produce after we get your kind payment.
7. Packing.
8. Shipping the goods to your(our)forwarder.
9. Sending all doc for your custom clearance.
10. Time to reorder.
