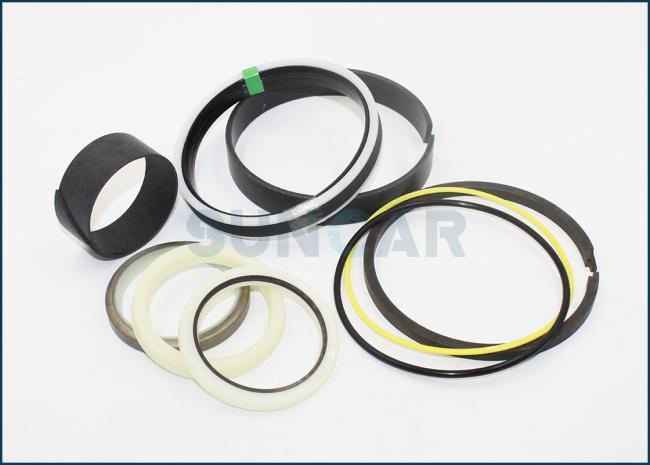

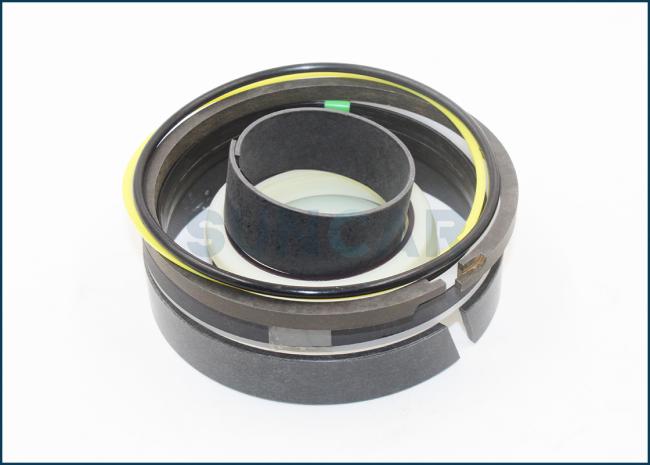

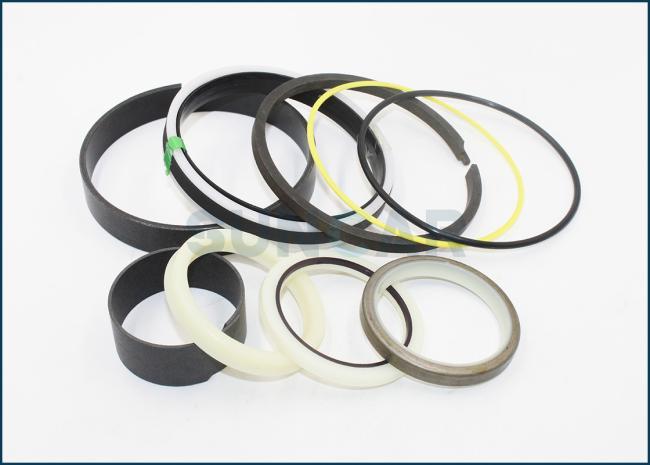

84259218 Seal Kit For Case Backhoe Loader Boom Cylinder 580N 580N EP 580SN 580SN WT 590SN
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
84259218 Seal Kit For Case Backhoe Loader Boom Cylinder 580N 580N EP 580SN 580SN WT 590SN
| Name | 84259218 Seal Kit |
| Model | 580N 580N EP 580SN 580SN WT 590SN |
| Part numbers | 84259218 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| 84259222 | LZ00482 | LZ012020 |
| 84259225 | LZ00483 | LZ010160 |
| 84259227 | LZ00484 | LZ012040 |
| 84259323 | LZ00495 | LZ12030 |
| 84257772 | LZ00496 | LZ011260 |
| LZ008290 | LZ00620 | LZ011310 |
| LZ008350 | LZ00621 | LZ013490 |
| LZ00453 | LZ006960 | LZ013760 |
| LZ00449 | LZ006970 | LZ012100 |
| LZ00450 | LZ006980 | LZ012110 |
| 191747A1 | LZ007310 | LZ010940 |
| 87705824 | PY01V00036R300 | PE01V00001R100 |
| 86631598 | PS01V00001R300 | PE01V00002R100 |
| 1542923C2 | PS01V00001R400 | PE01V00003R100 |
| G109423 | PS01V00002R300 | PE01V00004R100 |
| 84257323 | PS01V00002R400 | PE01V00005R100 |
| 84257788 | PS01V00003R300 | PV01V00039R300 |
| 84259224 | PS01V00003R400 | PV01V00037R300 |
| 84259226 | PS01V00004R300 | PV01V00038R300 |
| 84259218 | PS01V00004R400 | PM01V00044R300 |
| LZ012030 | PS01V00005R300 | PW01V00043R300 |
| LE022130 | PS01V00005R400 | PW01V00051R300 |
| 87428866 | PY01V00053R300 | PW01V00046R300 |
| 1543260C1 | PY01V00052R300 | PW01V00048R300 |
| 84154316 | PY01V00054R300 | PX01V00030R300 |
| 135352A1 | PY01V00050R300 | PX01V00033R300 |
Parts on group (580SK):
| Pos. | Part No | Qty | Parts name |
| 1 | 84551146 | [1] | HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 971.55mm Stroke |
| 2 | 84259218 | [1] | SEAL KIT,57.2mm Rod x 114.3mm Bore |
| 3 | D95145 | [1] | WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W |
| 4 | 1542877C1 | [1] | SEAL KIT,57.2mm Rod |
| 5 | 1346476C1 | [1] | RING,57.15mm ID, Int |
| 6 | 87615484 | [1] | SEAL,108.43mm ID x 113.93mm OD x 5.41mm Thk |
| 7 | 182116A1 | [1] | RING,Locking, 108.64mm ID x 118.3mm OD x 6.33mm Thk |
| 8 | G101996 | [1] | WEAR RING,4.5" OD x 0.75" Thk |
| 9 | 86982443 | [1] | SPECIAL BOLT,1" 3/8 x 3.50 L |
| 10 | 84321897 | [1] | ROD,57.2mm OD x 1251.2mm L |
| 11 | 123407A1 | [2] | BUSHING,60.19mm ID x 70mm OD x 28mm L |
| 12 | NSS | [1] | NOT SOLD SEPARAT |
| 13 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF |
| 14 | 84401820 | [1] | BARREL |
| 15 | 84238794 | [1] | GLAND |
| 16 | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" |
| 17 | 84238796 | [1] | PISTON ROD/GLAND,113.64mm Bore, 57.52mm Rod, 96.5mm W |
