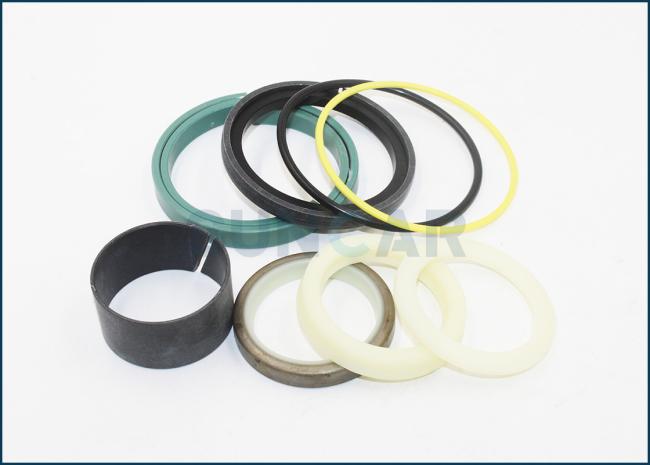

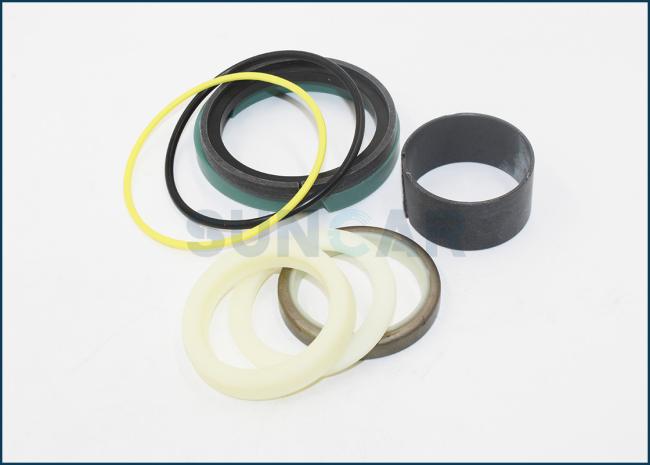

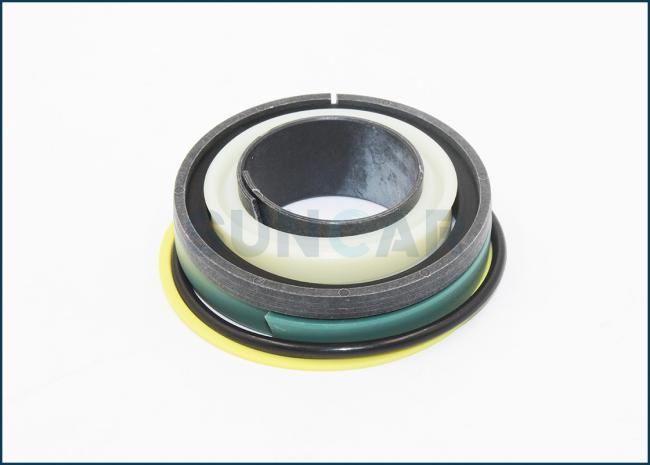

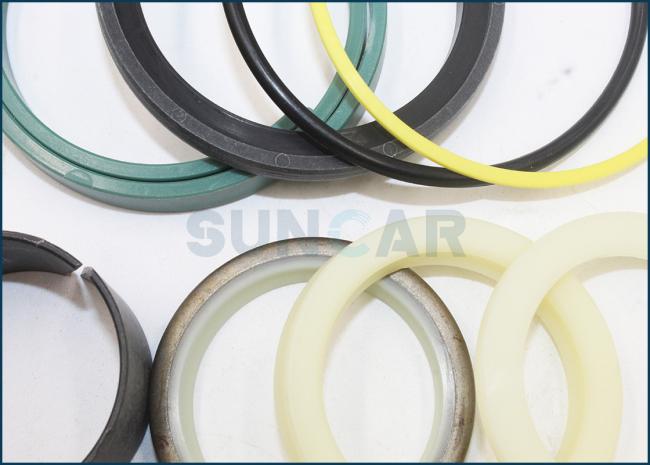

1543262C1 Seal Kit For Case Light Equipment Backhoe Loader Tilt Cylinder 480F 480F LL 580SK 680K
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
1543262C1 Seal Kit For Case Light Equipment Backhoe Loader Tilt Cylinder 480F 480F LL 580SK 680K
| Name | 1543262C1 Seal Kit |
| Model | 480F 480F LL 580SK 680K |
| Part numbers | 1543262C1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| LZ00542 | LZ010870 | PS01V00001R400 |
| LZ00444 | LZ011000 | PS01V00002R300 |
| LZ00646 | LZ010810 | PS01V00002R400 |
| LZ00499 | MMV80010 | PS01V00003R300 |
| LZ00500 | MMV80020 | PS01V00003R400 |
| LZ00477 | MMV80030 | PS01V00004R300 |
| LZ00484 | MMV80040 | PS01V00004R400 |
| LZ00482 | MMV80050 | PS01V00005R300 |
| LZ00477 | MMV80060 | PS01V00005R400 |
| LZ007300 | LZ011300 | PY01V00053R300 |
| LZ007320 | LZ011210 | PY01V00052R300 |
| LZ007310 | LZ011070 | PY01V00054R300 |
| LZ007310 | LZ008300 | PY01V00050R300 |
| LZ00483 | LZ007550 | XKCC-01540 |
| LZ00484 | LZ007720 | XKCC-01524 |
| LZ00482 | LZ010890 | XKCC-01527 |
| LZ00440 | LZ011480 | XKCC-01530 |
| LZ00495 | LZ010710 | XKCC-01532 |
| LZ00496 | LZ010930 | XKCC-01535 |
| LZ00620 | LZ011200 | XKCC-01429 |
| LZ00621 | LZ010940 | XKCC-00529 |
| LZ00464 | LZ010160 | XKCC-00458 |
| LZ00463 | LZ012040 | XKCD-01373 |
| LZ006970 | LZ012020 | XKCD-03431 |
| LZ006980 | LZ012050 | XKCD-02688 |
| LZ006960 | LZ12030 | XKCD-03427 |
| LZ00470 | LZ011260 | XKCD-03350 |
| LZ00472 | LZ011310 | XKCD-01397 |
| LZ00469 | LZ013490 | XKCD-03353 |
| LZ00471 | LZ013720 | XKCC-01437 |
| LZ00473 | LZ012090 | XKCC-01375 |
| LZ00474 | LZ012100 | XKCC-01438 |
Parts on group (680K):
| Pos. | Part No | Qty | Parts name |
| 1 | G101220 | [2] | CYLINDER ASSY. |
| 2 | D35102 | [1] | TUBE |
| 3 | G103411 | [2] | BUSHING,38mm ID x 47.4mm OD x 20.57mm L |
| . . | G104240 | [1] | GLAND |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | G34600 | [1] | RING |
| 7 | 1-7768 | [1] | WIPER SEAL |
| 8 | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk |
| 9 | G107922 | [1] | SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk |
| 9 | G100777 | [1] | SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk |
| 9A. | G109094 | [1] | SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk |
| 10 | 238-5234 | [1] | O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro |
| 11 | G32122 | [1] | BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk |
| 12 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 13 | G33563 | [1] | ROD |
| 14 | D32865 | [2] | BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L |
| 15 | G100704 | [1] | PISTON |
| 16 | G102288 | [1] | SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk |
| 17 | G100444 | [1] | SEALING RING,Square, 5.28mm Thk x 62.61mm ID |
| 18 | G32033 | [2] | RING |
| 19 | 25974R1 | [1] | BOLT,Hex, 1" - 14 x 2 1/2", Gr 8 |
| 20 | G32303 | [1] | WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk |
| 21 | 77081 | [1] | FITTING |
| . . | 1543262C1 | [1] | SEAL KIT |
