175251A1 Seal Kit For Case Light Equipment Backhoe Loader Bucket Cylinder 570LXT 570MXT 580L

Name: 175251A1 Seal Kit For Case Light Equipment Backhoe Loader Bucket Cylinder 570LXT 570MXT 580L
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

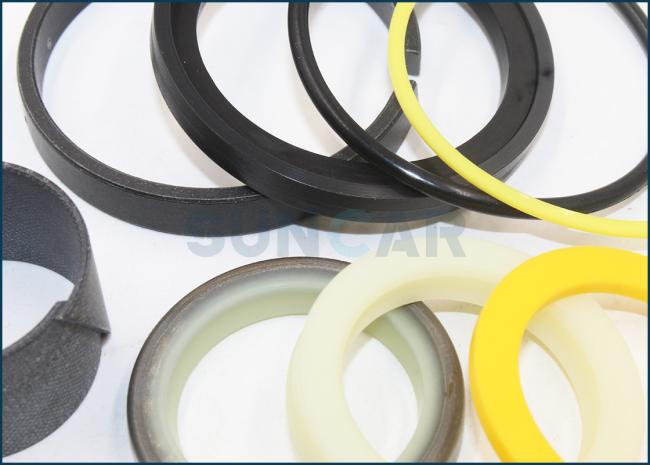

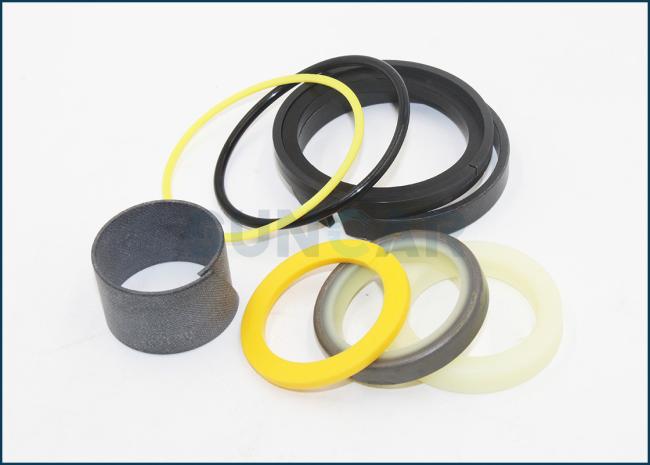

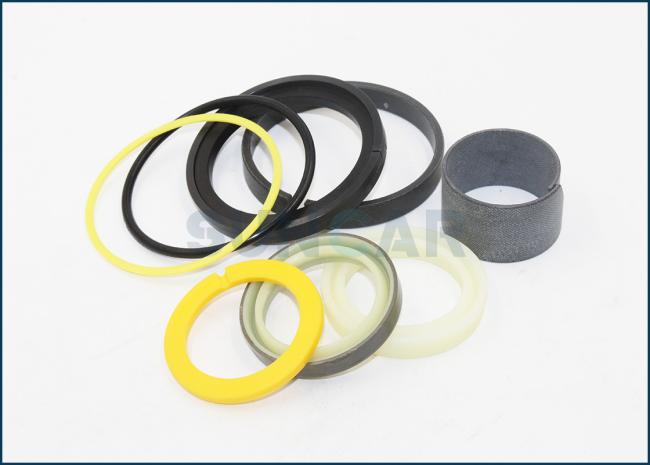

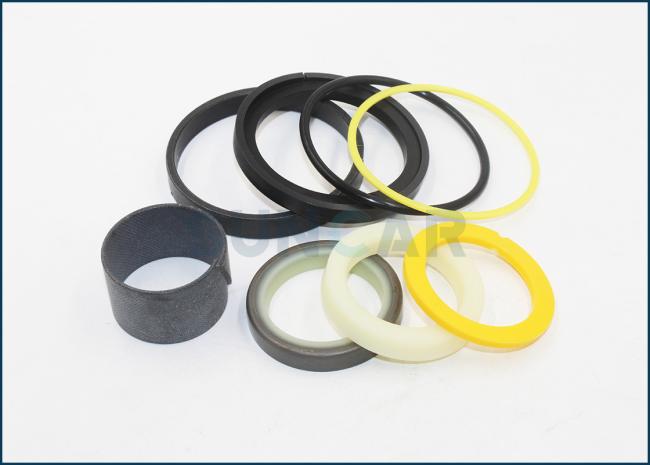

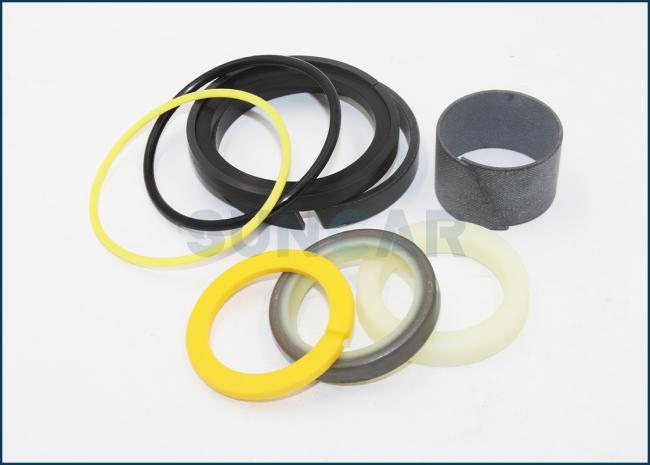

175251A1 Seal Kit For Case Light Equipment Backhoe Loader Bucket Cylinder 570LXT 570MXT 580L

Name	175251A1 Seal Kit
Model	570LXT 570MXT 580L
Part numbers	175251A1
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

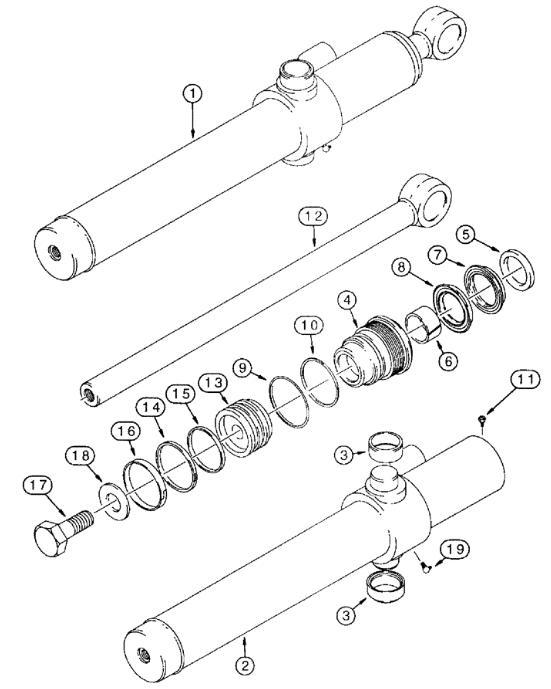

Part Numbers of Case Cylinder Service Kits:

Pos.	Part No	Qty	Parts name
1	175238A1	[2]	CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke
2	175239A1	[1]	TUBE,69.85 mm ID, 76.99 mm OD
3	G108512	[2]	BUSHING,41.2mm ID x 50mm OD x 18.7mm L
. .	NSS	[1]	NOT SOLD SEPARAT
4	175247A1	[1]	GLAND
5	D95142	[1]	WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
6	G102424	[1]	BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L
. .	1542874C1	[1]	SEAL KIT,38.1mm Rod
7	1542997C1	[1]	SEALING RING
8	1542996C1	[1]	SEAL
9	238-5230	[1]	O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
10	G32129	[1]	BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk
11	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"
12	110307A1	[1]	PISTON ROD
13	175250A1	[1]	PISTON,69.28mm Bore, 38.1mm Rod, 50.7mm W
14	G104454	[1]	SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk
15	G104439	[1]	RING
16	G105187	[1]	RING
17	25863R1	[1]	BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8
18	S94643	[1]	WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk
19	219-36	[1]	LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
19	219-55	[1]	LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
. .	175251A1	[1]	SEAL KIT
