1543267C1 Seal Kit For Case Backhoe Loader Lift Cylinder 550H 550H-IND 621B 621C 721B 721C 480F 480F LL 570LXT 570MXT
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

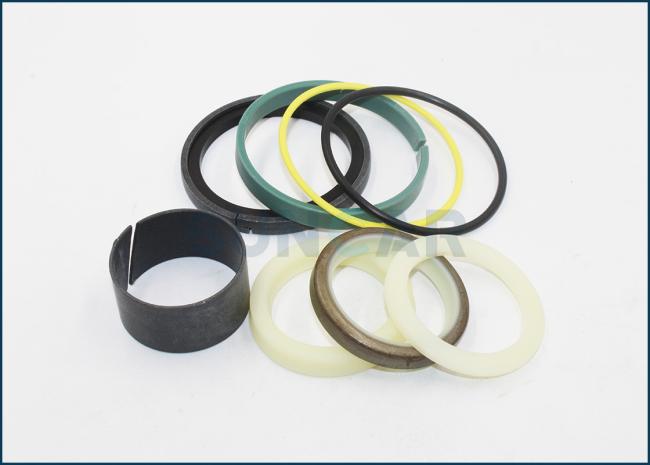

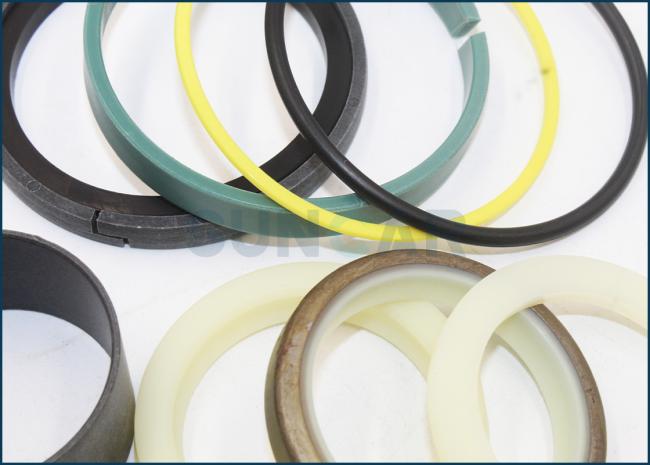

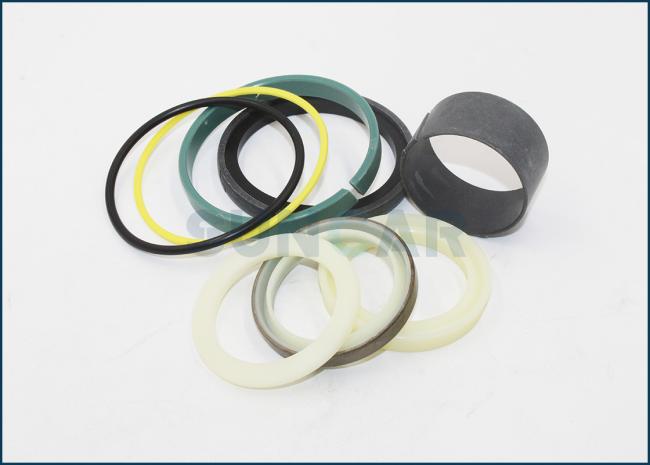

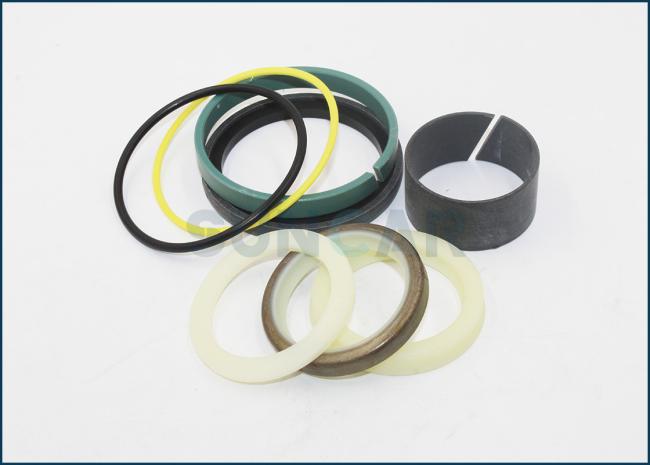

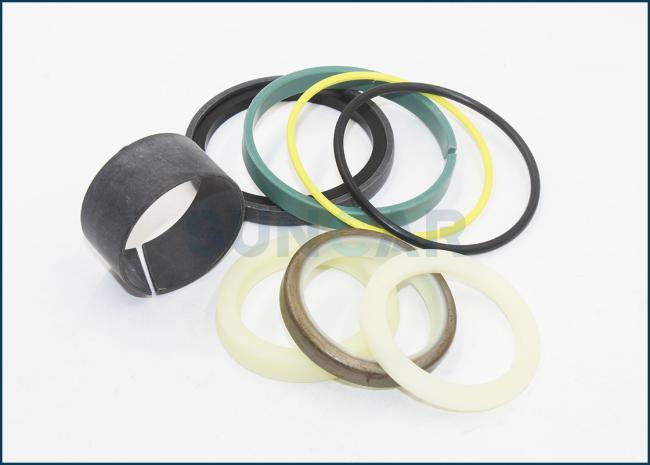

1543267C1 Seal Kit For Case Backhoe Loader Lift Cylinder 550H 550H-IND 621B 621C 721B 721C 480F 480F LL 570LXT 570MXT
| Name | 1543267C1 Seal Kit For Case Backhoe Loader Lift Cylinder |
| Model | 550H 550H-IND 621B 621C 721B 721C 480F 480F LL 570LXT 570MXT 580L 580M 580N 580SK 580SL 580SM 580SM+ 580SN 580SN WT 590 590L 590SL 590SM 590SM+ 5905N |
| Part numbers | 1543262C1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| LZ00477 | MMV80060 | PS01V00005R400 |
| LZ00482 | MMV80050 | PS01V00005R300 |
| LZ00484 | MMV80040 | PS01V00004R400 |
| LZ00440 | LZ011480 | XKCC-01530 |
| LZ00444 | LZ011000 | PS01V00002R300 |
| LZ00463 | LZ012040 | XKCD-01373 |
| LZ00464 | LZ010160 | XKCC-00458 |
| LZ00469 | LZ013490 | XKCD-03353 |
| LZ00470 | LZ011260 | XKCD-03350 |
| LZ00471 | LZ013720 | XKCC-01437 |
| LZ00472 | LZ011310 | XKCD-01397 |
| LZ00473 | LZ012090 | XKCC-01375 |
| LZ00474 | LZ012100 | XKCC-01438 |
| LZ00477 | MMV80030 | PS01V00004R300 |
| LZ00482 | LZ010890 | XKCC-01527 |
| LZ00483 | LZ007550 | XKCC-01540 |
| LZ00484 | LZ007720 | XKCC-01524 |
| LZ00495 | LZ010710 | XKCC-01532 |
| LZ00496 | LZ010930 | XKCC-01535 |
| LZ00499 | MMV80010 | PS01V00003R300 |
| LZ00500 | MMV80020 | PS01V00003R400 |
| LZ00542 | LZ010870 | PS01V00001R400 |

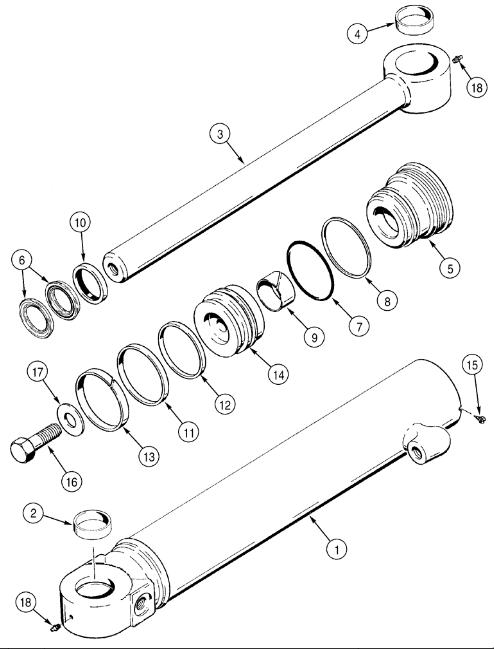

Parts on group (550H):
| Pos. | Part No | Qty | Parts name |
| . . | 307112A1 | [2] | CYLINDER ASSY.,Double Acting, 44.4mm Rod, 574.7mm Stroke |
| 1 | 307113A1 | [1] | TUBE,772.2 mm Length |
| 2 | D40243 | [2] | BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L |
| 3 | 307117A1 | [1] | ROD ASSY. |
| 4 | D40243 | [2] | BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L |
| 5 | 1340795C2 | [1] | CYLINDER END CAP |
| . . | 1543267C1 | [1] | SEAL KIT |
| 6 | NSS | [1] | NOT SOLD SEPARAT |
| 7 | 238-5231 | [1] | O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro |
| 8 | G109298 | [1] | RING,69.47mm ID x 75.57mm OD x 1.4mm Thk |
| 9 | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk |
| 10 | D95143 | [1] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk |
| 11 | G102288 | [1] | SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk |
| 12 | G100444 | [1] | SEALING RING,Square, 5.28mm Thk x 62.61mm ID |
| 13 | G100449 | [1] | WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk |
| 14 | 133097A1 | [1] | PISTON |
| 15 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 16 | 28-1640 | [1] | BOLT,Hex, 1" - 14 x 2-1/2", Gr 8 |
| 17 | G32303 | [1] | WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk |
| 18 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF |
