131790A1 Seal Kit For Case Light Equipment Backhoe Loader Dipper Cylinder 570LXT 580L

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

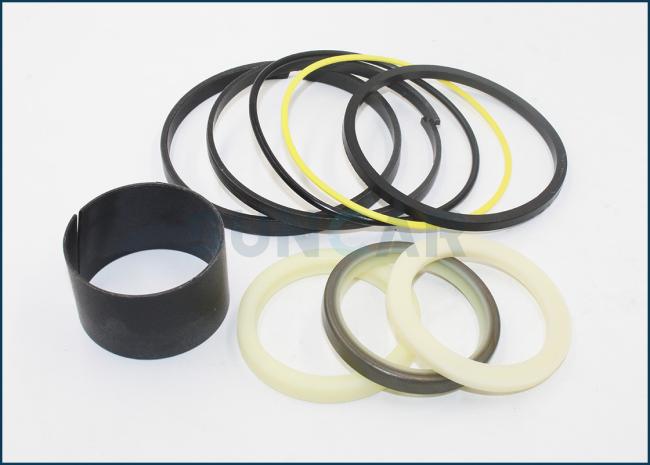

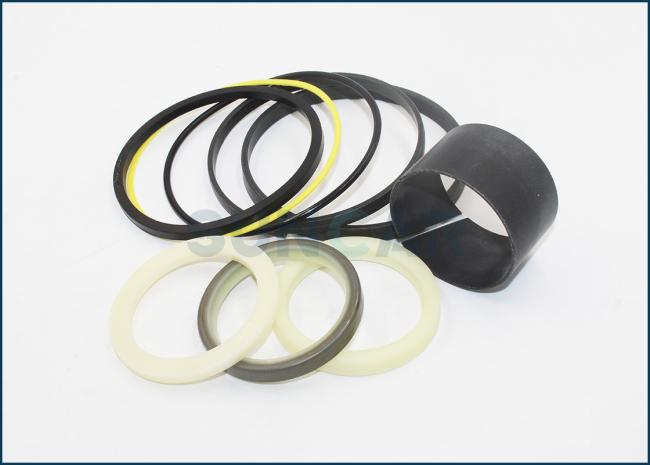

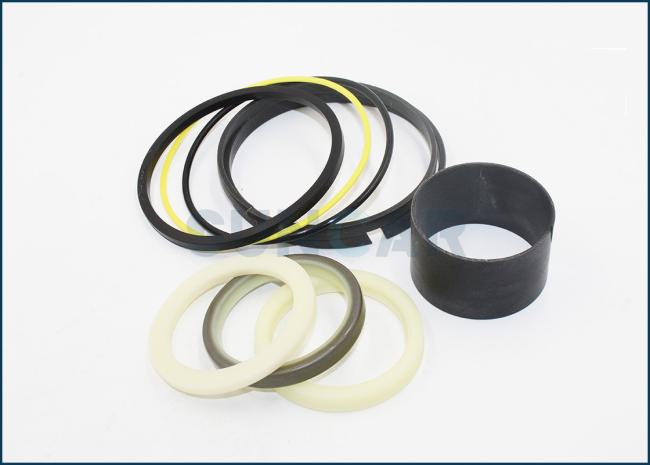

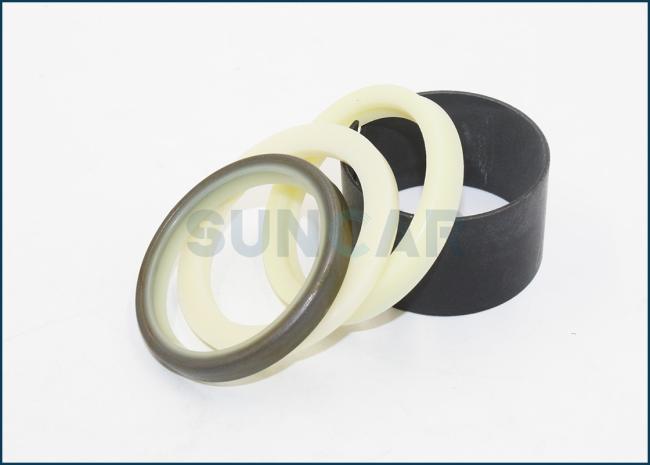

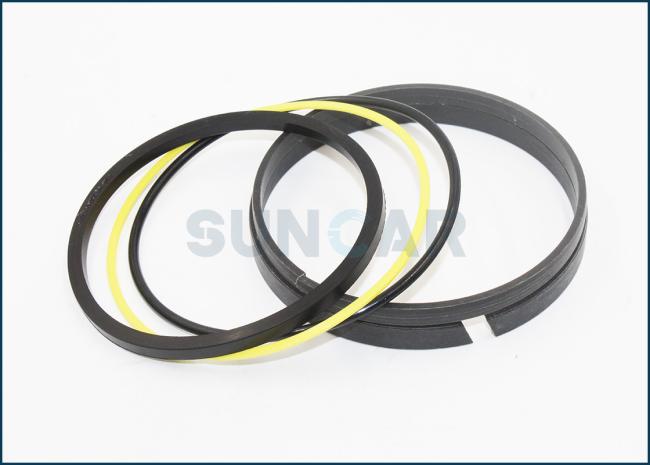

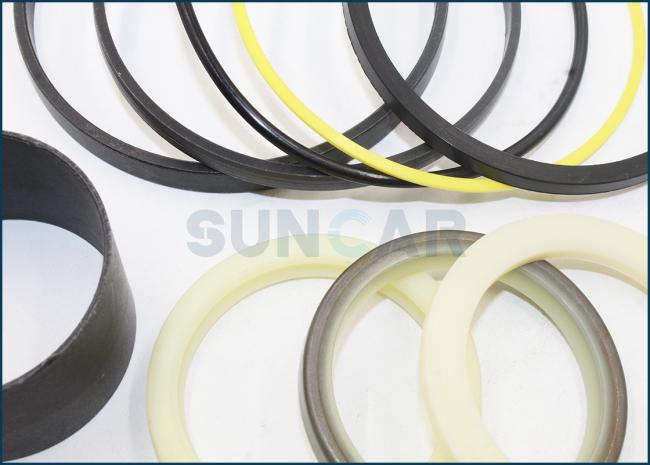

131790A1 Seal Kit For Case Light Equipment Backhoe Loader Dipper Cylinder 570LXT 580L

Name	131790A1 Seal Kit
Model	570LXT 580L
Part numbers	131790A1
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Case Cylinder Service Kits:

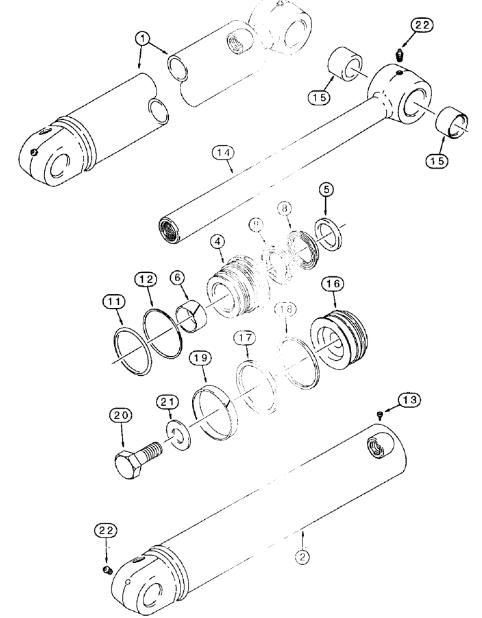

Parts on group (580L):

Pos.	Part No	Qty	Parts name
1	175774A1	[1]	CYLINDER ASSY.
1	233114A2R	[1]	REMAN-HYD CYLINDER
1	233114A2C	[1]	CORE-HYD CYLINDER
2	175775A1	[1]	TUBE
. .	NSS	[1]	NOT SOLD SEPARAT
4	125698A1	[1]	CYLINDER END CAP
5	D95145	[1]	WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W
6	G102426	[1]	BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L
. .	1542877C1	[1]	SEAL KIT,57.2mm Rod
8	1542929C1	[1]	SEAL,2.778mm OD
9	1542928C1	[1]	SEAL,2.275" ID
11	238-5241	[1]	O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
12	G32176	[1]	BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
13	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"
14	175778A1	[1]	PISTON ROD
15	D149079	[2]	BUSHING,50.19mm ID x 60mm OD x 34mm L
16	175857A1	[1]	PISTON
17	G110531	[1]	SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk
18	G110529	[1]	RING
19	G110530	[1]	RING,108mm OD, Ext
20	28-2256	[1]	BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8
21	G32559	[1]	WASHER
22	219-1	[2]	LUBE NIPPLE,1/8" - 27 NPTF
. .	131790A1	[1]	SEAL KIT
