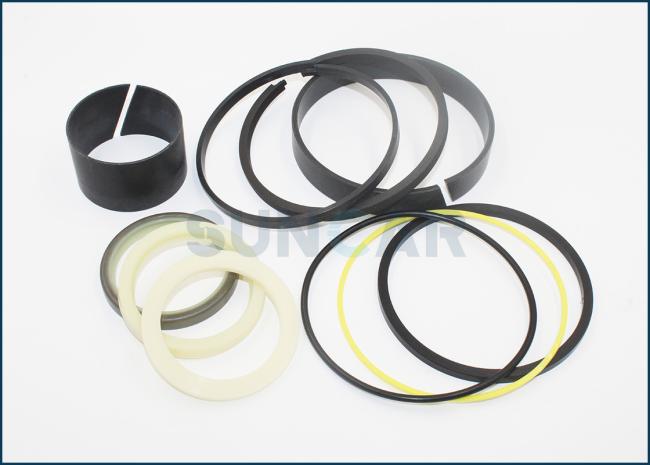

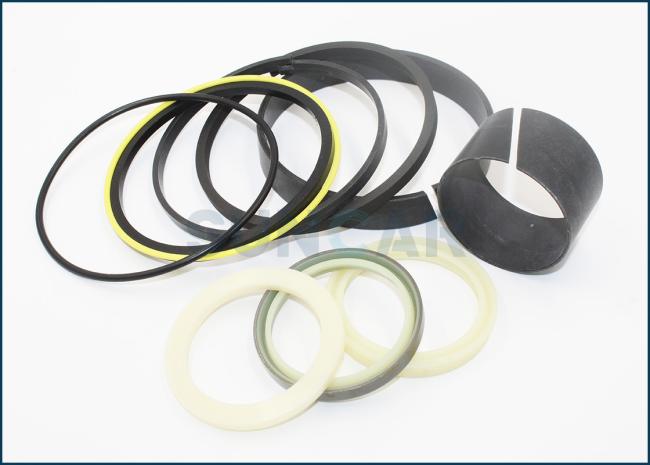

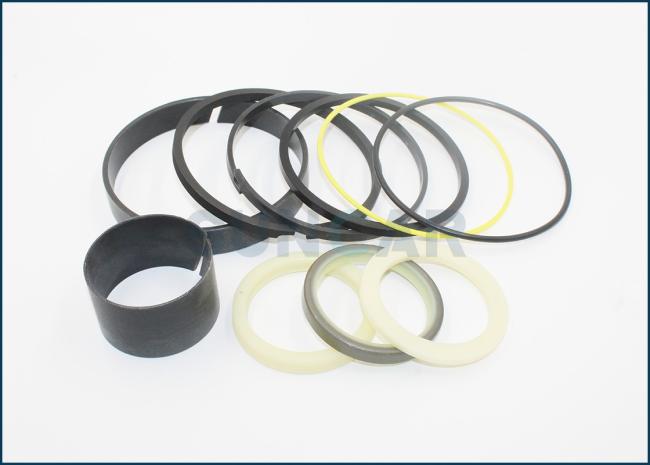

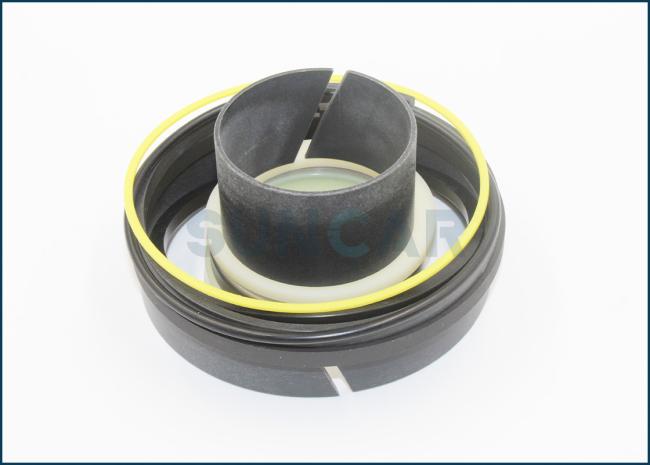

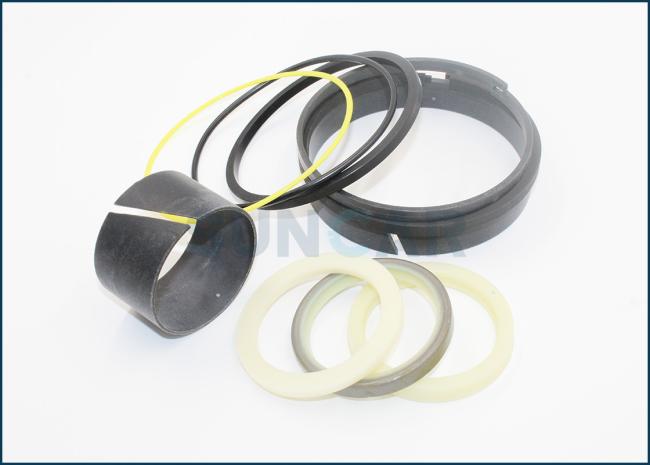

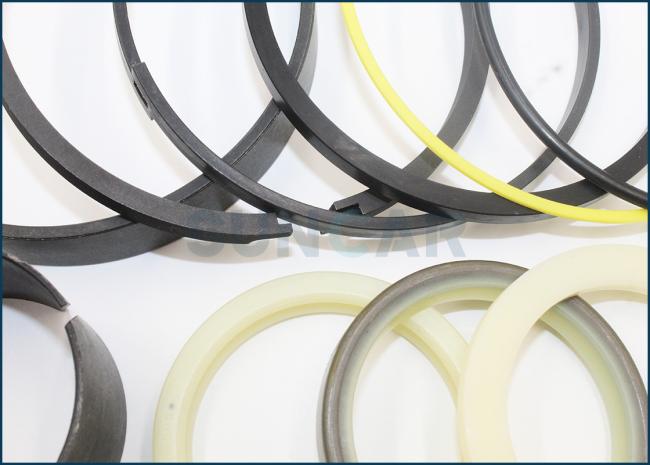

182218A1 Seal Kit For Case Light Equipment Backhoe Loader Boom Cylinder 570LXT 580L 580M
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
182218A1 Seal Kit For Case Light Equipment Backhoe Loader Boom Cylinder 570LXT 580L 580M
| Name | 182218A1 Seal Kit |
| Model | 570LXT 580L 580M |
| Part numbers | 182218A1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| LZ00471 | LZ013720 | XKCC-01437 |
| LZ00472 | LZ011310 | XKCD-01397 |
| LZ00473 | LZ012090 | XKCC-01375 |
| LZ00474 | LZ012100 | XKCC-01438 |
| LZ00477 | MMV80030 | PS01V00004R300 |
| LZ00482 | LZ010890 | XKCC-01527 |
| LZ00483 | LZ007550 | XKCC-01540 |
| LZ00484 | LZ007720 | XKCC-01524 |
| LZ00495 | LZ010710 | XKCC-01532 |
| LZ00496 | LZ010930 | XKCC-01535 |
| LZ00499 | MMV80010 | PS01V00003R300 |
| LZ00500 | MMV80020 | PS01V00003R400 |
| LZ00542 | LZ010870 | PS01V00001R400 |
| LZ00620 | LZ011200 | XKCC-01429 |
| LZ00621 | LZ010940 | XKCC-00529 |
| LZ00646 | LZ010810 | PS01V00002R400 |
| LZ006960 | LZ12030 | XKCD-03427 |
| LZ006970 | LZ012020 | XKCD-03431 |
| LZ006980 | LZ012050 | XKCD-02688 |
| LZ007300 | LZ011300 | PY01V00053R300 |
| LZ007310 | LZ011070 | PY01V00054R300 |
| LZ007310 | LZ008300 | PY01V00050R300 |

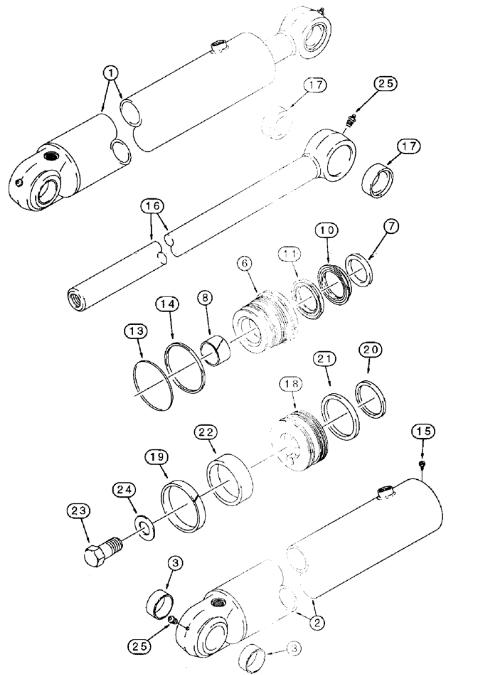

Parts on group (580L):
| Pos. | Part No | Qty | Parts name |
| 1 | 182106A1 | [1] | CYLINDER ASSY. |
| 1 | 189653A2R | [1] | REMAN-HYD CYLINDER |
| 1 | 189653A2C | [1] | CORE-HYD CYLINDER |
| 1 | 189653A1 | [1] | CYLINDER ASSY. |
| 2 | 182107A1 | [1] | HYD TUBE,114.17 mm OD |
| 2 | 189654A1 | [1] | TUBE,114.17 mm OD, 1241.2 mm Length |
| 3 | D149079 | [2] | BUSHING,50.19mm ID x 60mm OD x 34mm L |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 6 | 127862A1 | [1] | CYLINDER END CAP |
| 7 | D95145 | [1] | WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W |
| 8 | G102426 | [1] | BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L |
| . . | 1542877C1 | [1] | SEAL KIT,57.2mm Rod |
| 10 | 1542929C1 | [1] | SEAL,2.778mm OD |
| 11 | 1542928C1 | [1] | SEAL,2.275" ID |
| 13 | 238-5243 | [1] | O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro |
| 14 | G109300 | [1] | RING,113.46mm ID x 118.97mm OD x 1.17mm Thk |
| 15 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 16 | 182109A1 | [1] | PISTON ROD |
| 17 | D149079 | [2] | BUSHING,50.19mm ID x 60mm OD x 34mm L |
| 18 | 182115A1 | [1] | JACK PISTON |
| 18 | 189657A1 | [1] | JACK PISTON |
| 19 | 182116A1 | [1] | RING,Locking, 108.64mm ID x 118.3mm OD x 6.33mm Thk |
| 20 | G101995 | [1] | SEALING RING,Square, 5.28mm Thk x 100.71mm ID |
| 21 | G101994 | [2] | SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk |
| 22 | G101996 | [1] | WEAR RING,4.5" OD x 0.75" Thk |
| 23 | 28-2052 | [1] | BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8 |
| 24 | G104989 | [1] | WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk |
| 25 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF |
| . . | 182218A1 | [1] | SEAL KIT |
