1543265C1 Seal Kit For Case Crawler Tractor Lift Cylinder 1150E 1150G 1150H 1150H_IND 1155E 650G 650H 650K 650L 750H
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
1543265C1 Seal Kit For Case Crawler Tractor Lift Cylinder 1150E 1150G 1150H 1150H_IND 1155E 650G 650H 650K 650L 750H
| Name | 1543265C1 Seal Kit For Case Crawler Tractor Lift Cylinder |
| Model |
1150E 1150G 1150H 1150H_IND 1155E 650G 650H 650K 650L 750H 750K 850E 850G 850H 850K 855E |
| Part numbers | 1543265C1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| LZ00542 | LZ010870 | PS01V00001R400 |
| LZ00646 | LZ010810 | PS01V00002R400 |
| LZ00499 | MMV80010 | PS01V00003R300 |
| LZ00500 | MMV80020 | PS01V00003R400 |
| LZ00477 | MMV80030 | PS01V00004R300 |
| LZ007310 | LZ008300 | PY01V00050R300 |
| LZ007300 | LZ011300 | PY01V00053R300 |
| LZ007310 | LZ011070 | PY01V00054R300 |
| LZ00621 | LZ010940 | XKCC-00529 |
| LZ00473 | LZ012090 | XKCC-01375 |
| LZ00620 | LZ011200 | XKCC-01429 |
| LZ00471 | LZ013720 | XKCC-01437 |
| LZ00474 | LZ012100 | XKCC-01438 |
| LZ00484 | LZ007720 | XKCC-01524 |
| LZ00482 | LZ010890 | XKCC-01527 |
| LZ00495 | LZ010710 | XKCC-01532 |
| LZ00496 | LZ010930 | XKCC-01535 |
| LZ00483 | LZ007550 | XKCC-01540 |
| LZ00472 | LZ011310 | XKCD-01397 |
| LZ006980 | LZ012050 | XKCD-02688 |
| LZ006960 | LZ12030 | XKCD-03427 |
| LZ006970 | LZ012020 | XKCD-03431 |

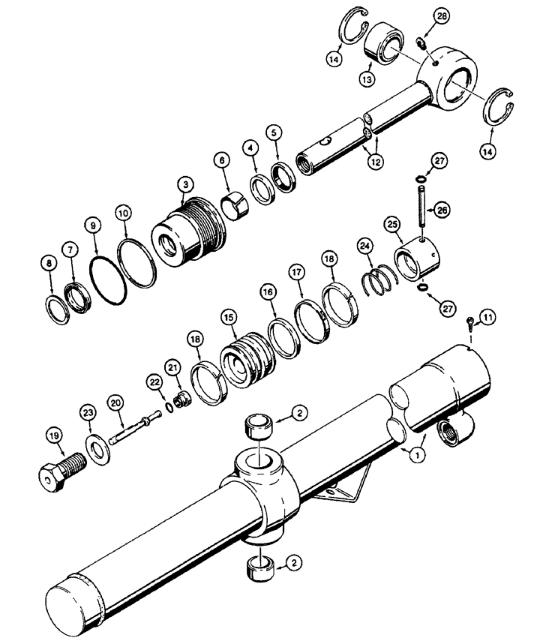

Parts on group (1150E):
| Pos. | Part No | Qty | Parts name |
| . . | G107365 | [2] | CYLINDER ASSY. |
| 1 | G107366 | [1] | TUBE |
| 2 | D31140 | [2] | BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L |
| 3 | 1542972C1 | [1] | CYLINDER END CAP |
| 4 | NSS | [1] | NOT SOLD SEPARAT |
| 5 | D95143 | [1] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk |
| 6 | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk |
| 7 | 1542998C1 | [1] | SEALING RING |
| 7 | G100777 | [1] | SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk |
| 8 | 1542999C1 | [1] | SEAL |
| 9 | 238-5236 | [1] | O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro |
| 10 | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk |
| 11 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 12 | G34074 | [1] | PISTON |
| 13 | D46942 | [1] | BEARING,1.75" ID x 2.8125" OD x 1.526" |
| 14 | 103-21281 | [2] | SNAP RING,66.92mm ID x 2.36mm W, Int |
| 15 | G107909 | [1] | PISTON |
| 16 | S109444 | [1] | RING,Square, 5.28mm Thk x 68.96mm ID |
| 17 | G102287 | [1] | SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk |
| 18 | S109445 | [2] | RING,82.55mm OD, Ext |
| . . | G103099 | [1] | LOCK VALVE |
| 19 | G32723 | [1] | BOLT |
| 20 | G110533 | [1] | SPOOL |
| 21 | G32722 | [1] | BUSHING |
| 22 | 238-5016 | [1] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro |
| 23 | G32351 | [1] | WASHER |
| 24 | G101523 | [1] | SPRING |
| 25 | G100086 | [1] | BLOCK |
| 26 | G107370 | [1] | PIN |
| 27 | 100-1137 | [2] | SNAP RING,#37, Ext |
| 28 | 219-55 | [1] | LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF |
| . . | 1543265C1 | [1] | SEAL KIT |
