567-63-23100 5676323100 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD180-4 HD200-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
567-63-23100 5676323100 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD180-4 HD200-2
| Name | 567-63-23100 5676323100 Hoist Cylinder Seal Kit |
| Type | Hoist Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Cylinder Service Kits:
| 707-99-68600 | 707-98-40130 | 234-63-18700 |
| 707-99-78640 | 707-98-25690 | 234-63-18701 |
| 707-99-77380 | 707-98-23270 | 234-63-18800 |
| 707-99-68650 | 721-98-01460 | 234-63-18801 |
| 707-99-78680 | 721-98-01230 | 234-63-28100 |
| 707-99-77390 | 721-98-04460 | 232-63-86100 |
| 707-99-68550 | 707-02-08120 | 234-63-13001 |
| 707-99-69660 | 707-98-11180 | 234-63-43001 |
| 707-99-78690 | 707-98-22250 | 234-63-23001 |
| 707-99-56200 | 707-98-25030 | 234-63-23002 |
| 707-99-56220 | 707-98-25031 | 234-63-32300 |
| 707-99-77330 | 707-98-25420 | 234-63-32200 |
| 707-99-69690 | 707-98-24040 | 234-63-66100 |
| 707-99-78730 | 707-98-15400 | 234-72-05130 |
| 707-99-76230 | 707-98-25230 | 23C-63-13101 |
| 707-99-69540 | 721-98-04660 | 23C-63-43101 |
| 707-99-76240 | 707-99-05620 | 23C-63-23101 |
| 707-99-69670 | 707-99-26200 | 23C-63-28101 |
| 707-99-78700 | 707-99-26210 | 234-63-25001 |
| 707-99-72390 | 707-99-24320 | 23C-63-32100 |
| 707-99-89220 | 707-99-35620 | 707-99-A9020 |
| 707-99-77050 | 707-99-26220 | 707-99-A9040 |
| 707-99-66240 | 707-99-25280 | 707-99-A9030 |
| 707-99-14610 | 707-99-25270 | 707-99-A9050 |
| 707-99-67010 | 721-98-00480 | 707-99-A9010 |
| 707-99-67300 | 721-98-00580 | 707-98-30530 |
| 707-99-67310 | 234-63-63001 | 707-98-26780 |
| 707-99-58110 | 707-98-26600 | 707-98-26950 |
| 707-99-58370 | 234-63-43000 | 707-98-04570 |
| 707-99-58050 | 234-63-23000 | 23B-63-X1220 |

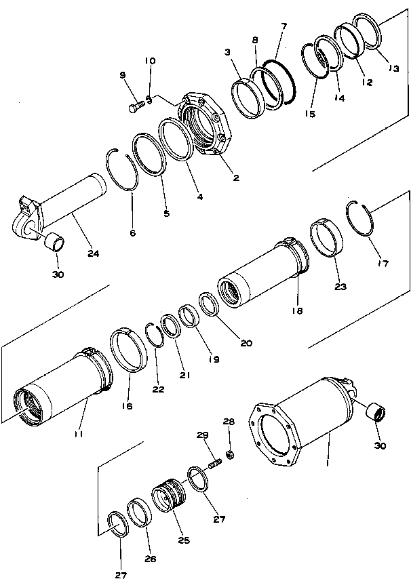

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 567-63-23101 | [1] | CYLINDER ASSY | |
| 567-63-23100 | [1] | CYLINDER ASSY | |
| 1. | 567-63-22140 | [1] | CYLINDER,1ST |
| 2. | 567-63-22130 | [1] | HEAD,CYLINDER |
| 3. | 567-63-22190 | [1] | BUSHING |
| 4. | 567-63-22180 | [1] | PACKING,ROD |
| 5. | 567-63-22570 | [1] | SEAL,DUST |
| 6. | 567-63-22760 | [1] | RING,SNAP |
| 7. | 07000-15230 | [1] | O-RING |
| 8. | 07001-05230 | [1] | RING,BACK-UP |
| 9. | 01010-62075 | [8] | BOLT |
| 10. | 01602-22060 | [8] | WASHER |
| 11. | 567-63-23240 | [1] | CYLINDER,2ND |
| 12. | 566-63-22210 | [1] | BUSHING |
| 13. | 566-09-31510 | [1] | PACKING,ROD |
| 14. | 566-63-22240 | [1] | SEAL,DUST |
| 15. | 567-63-22770 | [1] | RING,SNAP |
| 16. | 567-63-22480 | [1] | RING,WEAR |
| 17. | 567-63-22470 | [1] | RING,SNAP |
| 18. | 567-63-23340 | [1] | CYLINDER,3RD |
| 19. | 07177-01135 | [1] | BUSHING |
| 20. | 568-63-22380 | [1] | PACKING,ROD |
| 21. | 07016-01109 | [1] | SEAL,DUST |
| 22. | 07179-00135 | [1] | RING,SNAP |
| 23. | 07155-01845 | [1] | RING,WEAR |
| 24. | 567-63-23120 | [1] | ROD,PISTON |
| 25. | 567-63-23681 | [1] | PISTON |
| 25. | 567-63-23680 | [1] | PISTON |
| 26. | 07155-01435 | [1] | RING,WEAR |
| 27. | 281-63-13230 | [1] | RING,PISTON |
| 28. | 07165-12022 | [1] | NUT,NYLON |
| 29. | 01124-82045 | [1] | STUD |
| 30. | 567-63-22590 | [2] | BUSHING |
