567-63-42101 5676342101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD205-3
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
567-63-42101 5676342101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD205-3
| Name | 567-63-42101 5676342101 Hoist Cylinder Seal Kit |
| Type | Hoist Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Cylinder Service Kits:
| 207-63-56100 | 707-99-72290 | 707-98-24830 |
| 207-63-56200 | 707-99-50650 | 707-98-22410 |
| 207-63-76100 | 707-99-50720 | 707-98-41330 |
| 207-63-76500 | 707-99-69740 | 721-98-00670 |
| 207-63-62101 | 707-99-72320 | 721-98-00680 |
| 207-63-52100 | 707-99-47800 | 721-98-00700 |
| 207-63-72100 | 707-99-67871 | 707-98-34700 |
| 207-63-02120 | 707-99-67091 | 707-98-36720 |
| 207-63-02100 | 707-99-75910 | 20X-63-66300 |
| 207-63-02130 | 707-99-68500 | 20X-63-56300 |
| 707-99-67095 | 707-99-37680 | 20X-63-76300 |
| 707-99-72280 | 707-99-26940 | 20X-63-02020 |
| 707-99-58085 | 707-99-14400 | 20X-63-02010 |
| 707-99-59360 | 707-99-43410 | 20X-63-02030 |
| 707-99-58095 | 707-99-67140 | 707-99-76360 |
| 707-99-59370 | 707-99-68530 | 707-99-76390 |
| 707-99-58440 | YM172164-72330 | 707-99-68470 |
| 707-99-58081 | YM172151-72940 | 707-99-78410 |
| 707-99-58031 | YM172164-72370 | 707-99-76150 |
| 707-99-59362 | YM172164-72300 | 707-99-78780 |
| 707-99-59270 | YM172164-72360 | 721-98-00920 |
| 707-99-72281 | YM172964-72360 | 721-98-00930 |
| 707-99-72350 | YM172151-72080 | 721-98-01590 |
| 707-99-59630 | 707-98-13610 | 707-98-28670 |
| 707-99-59371 | 707-98-32520 | 707-98-28910 |
| 707-99-59550 | 707-98-24730 | 707-98-42710 |
| 707-99-58410 | 707-99-67481 | 707-98-36730 |
| 707-99-72080 | 707-99-69460 | 707-98-35320 |
| 707-99-59150 | 707-99-67470 | 707-98-26980 |

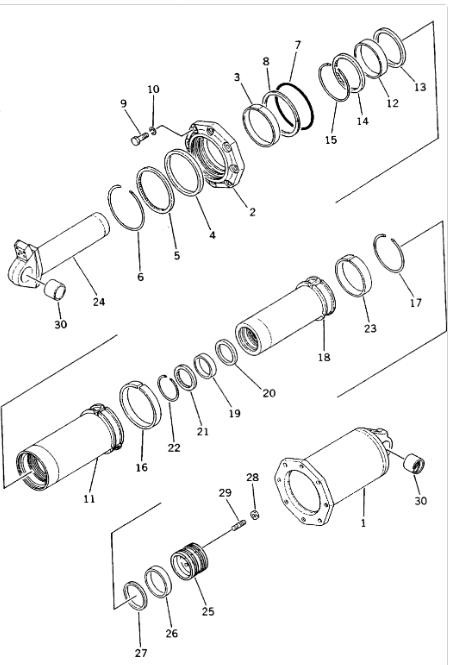

Parts on group :
| 567-63-42101 | [1] | CYLINDER ASSY | |
| 567-63-23101 | [1] | CYLINDER ASSY | |
| 1. | 567-63-22140 | [1] | CYLINDER |
| 2. | 567-63-22130 | [1] | HEAD,CYLINDER |
| 3. | 567-63-22190 | [1] | BUSHING |
| 4. | 567-63-22180 | [1] | PACKING,ROD |
| 5. | 567-63-22570 | [1] | SEAL,DUST |
| 6. | 709-75-21011 | [1] | RING,SNAP |
| 6. | 567-63-22760 | [1] | RING,SNAP |
| 7. | 07000-15230 | [1] | O-RING |
| 8. | 07001-05230 | [1] | RING,BACK-UP |
| 9. | 01010-62075 | [8] | BOLT |
| 10. | 01602-22060 | [8] | WASHER,SPRING |
| 11. | 567-63-23240 | [1] | CYLINDER |
| 12. | 566-63-22210 | [1] | BUSHING |
| 13. | 566-09-31510 | [1] | PACKING,ROD |
| 14. | 566-63-22240 | [1] | SEAL,DUST |
| 15. | 567-63-22770 | [1] | RING,SNAP |
| 16. | 567-63-22480 | [1] | RING,WEAR |
| 17. | 567-63-22470 | [1] | RING,SNAP |
| 18. | 567-63-23341 | [1] | CYLINDER |
| 18. | 567-63-23340 | [1] | CYLINDER |
| 19. | 07177-01135 | [1] | BUSHING |
| 20. | 568-63-22380 | [1] | PACKING,ROD |
| 21. | 07016-01109 | [1] | SEAL,DUST |
| 22. | 07179-00135 | [1] | RING,SNAP |
| 23. | 07155-01845 | [1] | RING,WEAR |
| 24. | 567-63-23120 | [1] | ROD,PISTON |
| 25. | 567-63-23681 | [1] | PISTON |
| 26. | 07155-01435 | [1] | RING,WEAR |
| 27. | 281-63-13230 | [1] | RING,PISTON |
| 28. | 07165-12022 | [5] | NUT,NYLON |
| 29. | 01124-82050 | [5] | STUD |
| 30. | 567-63-22590 | [2] | BUSHING |
