568-63-12100 5686312100 Steering Cylinder Seal Kit For Komatsu Dump Truck HD680-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
568-63-12100 5686312100 Steering Cylinder Seal Kit For Komatsu Dump Truck HD680-2
| Name | 568-63-12100 5686312100 Streering Cylinder Seal Kit |
| Type | Steering Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Cylinder Service Kits:
| 707-99-59150 | 707-99-67470 | 707-98-26980 |
| 721-98-00510 | 878000416 | 707-98-41380 |
| 721-98-00520 | 878000418 | 707-98-36740 |
| 721-98-00610 | 878000415 | 707-98-35340 |
| 721-98-01080 | 878000417 | 707-98-30720 |
| 721-98-02260 | 878000017 | 707-98-42720 |
| 707-99-67040 | 707-98-25360 | 707-98-51140 |
| YM172141-99380 | 707-98-25780 | 707-98-24800 |
| YM172142-99340 | 707-98-34750 | 707-98-41350 |
| YM172142-99420 | 707-98-14770 | 707-99-54160 |
| YM172975-72360 | 707-98-57330 | 721-98-03310 |
| YM172168-72201 | 721-98-01280 | 21D-61-11190 |
| YM172142-72571 | 707-98-15780 | 707-99-02010 |
| YM172422-72950 | 878000659 | 707-98-03040 |
| YM172422-72700 | 878000660 | 707-98-03030 |
| 707-98-23180 | 878000539 | 21R-63-02020 |
| 707-98-23970 | 878000540 | 21R-63-02050 |
| 707-98-26070 | 707-99-72061 | 21R-63-02010 |
| 707-98-14350 | 707-99-69590 | 21R-63-02030 |
| 707-98-22930 | 707-99-72070 | 21R-63-02040 |
| 707-98-14920 | 721-98-00130 | 21S-63-02020 |
| 707-98-14370 | 721-98-00140 | 21S-63-02050 |
| 707-98-23250 | 721-98-00590 | 21S-63-02010 |
| 707-98-22840 | 721-98-00560 | 21S-63-02030 |
| 707-98-24880 | 707-99-72060 | 21S-63-02040 |
| 707-98-14260 | 707-99-37090 | 707-00-50320 |
| 707-98-13600 | 707-98-29650 | 707-00-60310 |
| 707-99-59750 | 721-98-00150 | 707-00-50310 |
| 707-99-59130 | 721-98-00220 | 707-00-50330 |
| 707-99-58450 | 721-98-01720 | 707-00-50340 |
| 707-98-24281 | 721-98-01750 | 707-00-50620 |
| 707-98-31110 | 721-98-01740 | 707-00-60340 |

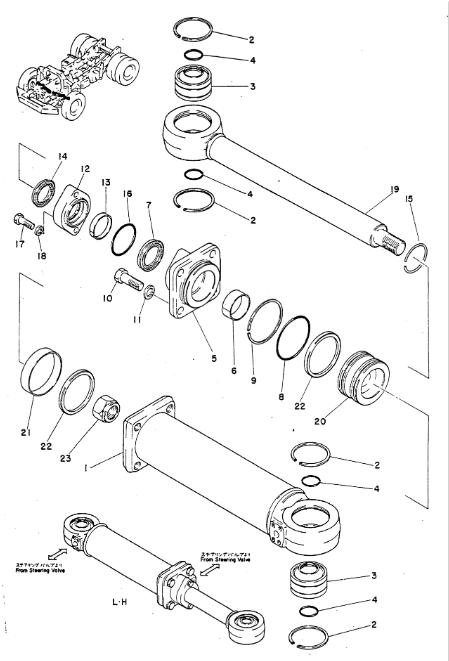

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 568-63-12100 | [2] | CYLINDER ASSY | |
| 1. | 568-63-12140 | [1] | CYLINDER |
| 2. | 04071-00110 | [4] | RING |
| 3. | 07137-05008 | [2] | BUSHING |
| 4. | 07000-03050 | [4] | O-RING |
| 5. | 568-63-12130 | [1] | HEAD |
| 6. | 07177-07530 | [1] | BUSHING |
| 7. | 145-63-22173 | [1] | U-PACKING |
| 8. | 07000-12135 | [1] | O-RING |
| 9. | 07146-02136 | [1] | RING |
| 10. | 01010-52475 | [4] | BOLT |
| 11. | 01602-22472 | [4] | WASHER |
| 12. | 221-63-26171 | [1] | GLAND |
| 13. | 07177-07515 | [1] | BUSHING |
| 14. | 07016-00758 | [1] | SEAL |
| 15. | 07179-00097 | [1] | RING |
| 16. | 07000-02095 | [1] | O-RING |
| 17. | 01010-51655 | [2] | BOLT |
| 18. | 01602-21648 | [2] | WASHER |
| 19. | 568-63-12120 | [1] | ROD |
| 20. | 07149-01471 | [1] | PISTON |
| 21. | 07155-01435 | [1] | RING |
| 22. | 281-63-13230 | [2] | RING |
| 23. | 07165-14547 | [1] | NUT |
