568-63-22101 5686322101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD680-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
568-63-22101 5686322101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD680-2
| Name | 568-63-22101 5686322101 Hoist Cylinder Seal Kit |
| Type | Hoist Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Cylinder Service Kits:
| 707-99-37340 | 707-98-54120 | 707-99-73800 |
| 707-99-36330 | 707-98-52150 | 707-99-73820 |
| 707-99-44380 | 707-99-64050 | 707-98-26900 |
| 707-99-44290 | 411-63-15103 | 707-99-26980 |
| 707-99-37170 | 410-63-11104 | 721-98-00210 |
| 707-99-38780 | 144-63-52100 | 707-99-26135 |
| 707-99-38790 | 581-63-05041 | 721-98-01580 |
| 707-99-36300 | 707-99-82405 | 721-98-01920 |
| 707-98-38510 | 707-99-44520 | 568-63-92100 |
| 707-98-45100 | 581-43-05010 | 568-63-22101 |
| 707-98-37510 | 707-99-53050 | 568-63-22102 |
| 707-98-38520 | 721-98-01050 | 568-63-23100 |
| 707-99-46200 | 721-98-04490 | 568-63-12100 |
| 707-98-37110 | 721-98-02410 | 568-63-91100 |
| 707-99-38720 | 721-98-02400 | 568-63-23101 |
| 707-99-46320 | 721-98-03020 | 568-63-12101 |
| 707-99-37290 | 721-98-03030 | 568-63-12300 |
| 205-63-59300 | 567-63-23100 | 561-63-22600 |
| 205-63-59400 | 567-63-23101 | 561-63-12600 |
| 205-63-69300 | 565-74-13001 | 707-98-37570 |
| 707-99-57200 | 567-63-22100 | 707-99-79400 |
| 707-98-45250 | 566-43-05010 | 707-99-37591 |
| 707-99-27780 | YM933120-28100 | 707-98-03180 |
| 707-99-46600 | 567-63-23900 | 707-98-02070 |
| 707-98-45220 | 567-63-12700 | 707-99-79430 |
| 707-98-47620 | 567-63-42101 | 707-99-37670 |
| 707-99-47600 | 707-99-59100 | 707-99-79440 |
| 707-99-58200 | 567-63-12600 | 707-98-37690 |
| 707-99-47620 | 707-98-14300 | 707-99-37590 |

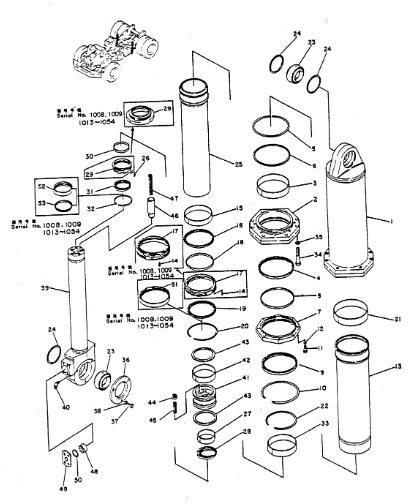

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 568-63-22102 | [2] | CYLINDER ASSY | |
| 568-63-22101 | [2] | CYLINDER ASSY,HOIST | |
| 1. | 568-63-22141 | [1] | CYLINDER |
| 2. | 568-63-22130 | [1] | HEAD |
| 3. | 568-63-22190 | [1] | BUSHING |
| 4. | 568-63-22180 | [1] | PACKING |
| 5. | 07000-15250 | [1] | O-RING |
| 6. | 07001-05250 | [1] | RING |
| 7. | 568-63-22170 | [1] | GLAND |
| 8. | 568-63-22290 | [1] | BUSHING |
| 9. | 568-63-22570 | [1] | SEAL |
| 10. | 568-63-22760 | [1] | RING |
| 11. | 01010-51245 | [8] | BOLT |
| 12. | 01602-21236 | [8] | WASHER |
| 13. | 568-63-22241 | [1] | CYLINDER |
| 14. | 568-63-22460 | [1] | SCREW |
| 14. | 01320-40612 | [1] | SCREW |
| 15. | 568-63-22390 | [1] | BUSHING |
| 16. | 568-63-22280 | [1] | PACKING |
| 17. | 568-63-22271 | [1] | GLAND |
| 17. | 568-63-22270 | [1] | GLAND |
| 18. | 568-63-22490 | [1] | BUSHING |
| 19. | 568-63-22670 | [1] | SEAL |
| 20. | 568-63-22770 | [1] | RING |
| 21. | 568-63-22480 | [1] | RING |
| 22. | 568-63-22470 | [1] | RING |
| 23. | 568-52-11160 | [2] | BUSHING |
| 24. | 04071-00130 | [3] | RING |
| 25. | 568-63-22341 | [1] | CYLINDER |
| 26. | 01330-40612 | [1] | SCREW |
| 27. | 07177-01135 | [1] | BUSHING |
| 28. | 568-63-22380 | [1] | PACKING (KIT) |
| 29. | 568-63-22371 | [1] | GLAND (KIT) |
| 29. | 568-63-22370 | [1] | GLAND |
| 30. | 568-63-22860 | [1] | BUSHING (KIT) |
| 31. | 07016-01109 | [1] | SEAL (KIT) |
| 32. | 568-63-22870 | [1] | RING |
| 33. | 568-63-22580 | [1] | RING |
| 34. | 568-63-22780 | [8] | BOLT |
| 35. | 01602-22060 | [8] | WASHER |
| 36. | 568-63-22890 | [1] | COVER |
| 37. | 01010-51230 | [3] | BOLT |
| 39. | 568-63-22121 | [1] | ROD |
| 40. | 07020-00675 | [1] | FITTING |
| 41. | 568-63-22680 | [1] | PISTON |
| 42. | 07155-01640 | [1] | RING |
| 43. | 07161-10160 | [2] | RING |
| 44. | 07165-12222 | [5] | NUT |
| 45. | 01124-82245 | [5] | STUD |
| 46. | 568-63-22690 | [2] | VALVE |
| 47. | 568-63-22660 | [2] | SPRING |
| 48. | 568-63-22630 | [1] | VALVE |
| 49. | 568-63-22640 | [1] | COVER |
| 50. | 07000-13050 | [1] | O-RING |
| 51. | 568-63-22260 | [1] | BUSHING |
| 52. | 568-63-22360 | [1] | BUSHING |
| 53. | 568-63-22560 | [1] | SEAL |
