568-63-23101 5686323101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD780-1 HD785-1 HD785-1L
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
568-63-23101 5686323101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD780-1 HD785-1 HD785-1L
| Name | 568-63-23101 5686323101 Hoist Cylinder Seal Kit |
| Type | Hoist Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Cylinder Service Kits:
| 707-98-24210 | 707-99-42550 | 707-99-38720 |
| 707-98-32810 | G-30149694 G30149694 | 707-99-46320 |
| 707-98-25560 | K-30149697 K30149697 | 707-99-37290 |
| 707-98-25250 | H-30149695 H30149695 | 205-63-59300 |
| 707-98-25350 | 707-98-37600 | 205-63-59400 |
| 707-98-25910 | 707-98-34520 | 205-63-69300 |
| 707-98-29510 | 707-98-26520 | 707-99-57200 |
| 707-98-15760 | 707-98-43210 | 707-98-45250 |
| 707-98-34670 | 707-98-36630 | 707-99-27780 |
| 707-98-34140 | 707-98-36700 | 707-99-46600 |
| 707-98-25620 | 707-98-35310 | 707-98-45220 |
| 707-98-25820 | 707-98-26720 | 707-98-47620 |
| 707-98-25750 | 707-98-42700 | 707-99-47600 |
| 707-98-25760 | 707-98-43200 | 707-99-58200 |
| 707-98-26300 | 707-98-43300 | 707-99-47620 |
| 707-98-32570 | 707-98-36710 | 707-99-47790 |
| 707-98-15770 | 707-99-37610 | 707-99-58070 |
| 707-98-25870 | 707-99-36620 | 707-04-50110 |
| 707-98-29661 | 707-99-26620 | 418-62-05000 |
| 707-98-34610 | 707-98-36200 | 707-99-68460 |
| 707-99-25670 | 707-99-44300 | 707-99-68450 |
| 707-98-25980 | 707-98-27600 | 707-99-H0P03 |

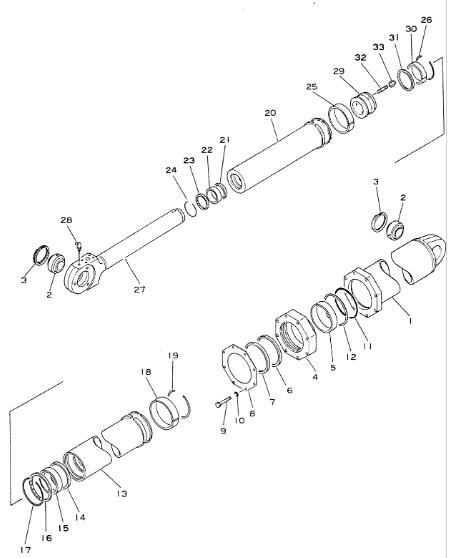

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 568-63-23101 | [1] | CYLINDER ASSY | |
| 1. | 568-63-23141 | [1] | CYLINDER |
| 2. | 569-63-22880 | [2] | BUSHING |
| 3. | 707-73-13010 | [2] | RING |
| 4. | 568-63-23130 | [1] | HEAD |
| 5. | 568-63-22190 | [1] | BUSHING |
| 568-63-22180 | [1] | PACKING | |
| 7. | 568-63-22570 | [1] | SEAL |
| 8. | 568-63-23160 | [1] | PLATE |
| 9. | 01010-52010 | [8] | BOLT |
| 10. | 01602-22060 | [8] | WASHER |
| 11. | 07000-15250 | [1] | O-RING |
| 12. | 07001-05250 | [1] | RING |
| 13. | 568-63-23241 | [1] | CYLINDER |
| 14. | 568-63-22280 | [1] | PACKING |
| 15. | 568-63-22390 | [1] | BUSHING |
| 16. | 568-63-22670 | [1] | SEAL |
| 17. | 568-63-22770 | [1] | RING |
| 18. | 568-63-22480 | [1] | RING |
| 19. | 568-63-23270 | [1] | RING |
| 20. | 568-63-23341 | [1] | CYLINDER |
| 21. | 568-63-22380 | [1] | PACKING |
| 22. | 07177-01140 | [1] | BUSHING |
| 23. | 07016-01109 | [1] | SEAL |
| 24. | 07179-00135 | [1] | RING |
| 25. | 568-63-22580 | [1] | RING |
| 26. | 568-63-23370 | [1] | RING |
| 27. | 568-63-23122 | [1] | ROD |
| 28. | 07020-00675 | [1] | FITTING |
| 29. | 568-63-23171 | [1] | PISTON |
| 30. | 07155-01640 | [1] | RING |
| 31. | 07161-10160 | [1] | RING |
| 32. | 01124-82260 | [5] | STUD |
| 33. | 07165-12222 | [5] | NUT |
