568-63-92100 5686392100 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD680-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
568-63-92100 5686392100 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD680-2
| Name | 568-63-92100 5686392100 Hoist Cylinder Seal Kit |
| OEM | 568-63-92100 5686392100 |
| Type | Hoist Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Cylinder Service Kits:
| 707-99-78700 | 707-99-26210 | 234-63-25001 |
| 707-99-72390 | 707-99-24320 | 23C-63-32100 |
| 707-99-89220 | 707-99-35620 | 707-99-A9020 |
| 707-99-77050 | 707-99-26220 | 707-99-A9040 |
| 707-99-66240 | 707-99-25280 | 707-99-A9030 |
| 707-99-14610 | 707-99-25270 | 707-99-A9050 |
| 707-99-67010 | 721-98-00480 | 707-99-A9010 |
| 707-99-67300 | 721-98-00580 | 707-98-30530 |
| 707-99-67310 | 234-63-63001 | 707-98-26780 |
| 707-99-58110 | 707-98-26600 | 707-98-26950 |
| 707-99-58370 | 234-63-43000 | 707-98-04570 |
| 707-99-58050 | 234-63-23000 | 23B-63-X1220 |
| 707-99-58060 | 234-63-53002 | 23B-63-X1330 |
| 707-99-58080 | 234-63-28001 | 23B-63-Z1330 |
| 707-99-58081 | 707-98-26410 | 23B-63-72102 |
| 707-99-58090 | 707-98-26510 | 707-99-39710 |
| 707-99-67870 | 707-98-26441 | 707-98-22820 |
| 707-99-67090 | 707-98-26690 | 707-99-59760 |
| 707-99-72240 | 707-98-34050 | 707-98-46300 |
| 707-99-59610 | 707-98-32010 | 707-98-48610 |
| 707-99-67280 | 707-98-32080 | 707-99-50500 |
| 707-99-58360 | 707-98-52100 | 707-98-39610 |
| 707-99-58140 | 707-98-26490 | 707-98-46280 |
| 707-98-29500 | 707-98-26401 | 707-99-36220 |

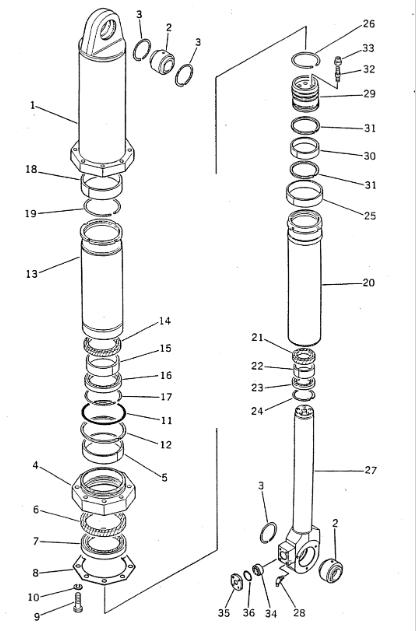

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 568-63-92100 | [1] | CYLINDER ASSY,HOIST | |
| 1. | 568-63-23140 | [1] | CYLINDER |
| 2. | 568-52-11160 | [2] | BUSHING |
| 3. | 707-73-13010 | [3] | RING |
| 4. | 568-63-23130 | [1] | HEAD |
| 5. | 568-63-22190 | [1] | BUSHING |
| 6. | 707-51-23710 | [1] | PACKING |
| 7. | 568-63-22520 | [1] | SEAL |
| 8. | 568-63-23160 | [1] | PLATE |
| 9. | 01011-52010 | [8] | BOLT |
| 10. | 01602-22060 | [8] | WASHER |
| 11. | 07000-55250 | [1] | O-RING |
| 12. | 07001-05250 | [1] | RING |
| 13. | 568-63-23240 | [1] | CYLINDER |
| 14. | 707-51-19170 | [1] | PACKING |
| 15. | 568-63-22390 | [1] | BUSHING |
| 16. | 568-63-22620 | [1] | SEAL |
| 17. | 568-63-22770 | [1] | RING |
| 18. | 568-63-22480 | [1] | RING |
| 19. | 568-63-23270 | [1] | RING |
| 20. | 568-63-23340 | [1] | CYLINDER |
| 21. | 707-51-11710 | [1] | PACKING |
| 22. | 07177-01140 | [1] | BUSHING |
| 23. | 198-63-94170 | [1] | SEAL |
| 24. | 07179-00135 | [1] | RING |
| 25. | 568-63-22580 | [1] | RING |
| 26. | 568-63-23370 | [1] | RING |
| 27. | 568-63-23121 | [1] | ROD |
| 28. | 07020-00675 | [1] | FITTING |
| 29. | 568-63-23170 | [1] | PISTON |
| 30. | 07155-01640 | [1] | RING |
| 31. | 07161-10160 | [2] | RING |
| 32. | 01124-82260 | [5] | STUD |
| 33. | 07165-12222 | [5] | NUT |
| 34. | 568-63-22630 | [1] | VALVE |
| 35. | 568-63-22640 | [1] | COVER |
| 36. | 07000-13050 | [1] | O-RING |
