569-63-42100 5696342100 Seal Kit Hoist Cylinder For Komatsu Dump Truck HD465-2
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
569-63-42100 5696342100 Seal Kit Hoist Cylinder For Komatsu Dump Truck HD465-2
| Name | 569-63-42100 5696342100 Seal Kit |
| OEM | 569-63-42100 5696342100 |
| Type | Hoist Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | IDI |
Part Numbers of Cylinder Service Kits:
| 878000516 | YM172142-99340 | 707-98-34750 |
| 878000519 | YM172142-99420 | 707-98-14770 |
| 878000517 | YM172975-72360 | 707-98-57330 |
| 878000518 | YM172168-72201 | 721-98-01280 |
| 707-99-47131 | YM172142-72571 | 707-98-15780 |
| 721-98-00850 | YM172422-72950 | 878000659 |
| 721-99-47131 | YM172422-72700 | 878000660 |
| 721-99-48740 | 707-98-23180 | 878000539 |
| 707-99-45040 | 707-98-23970 | 878000540 |
| 707-99-66350 | 707-98-26070 | 707-99-72061 |
| 707-99-46390 | 707-98-14350 | 707-99-69590 |
| 707-99-48740 | 707-98-22930 | 707-99-72070 |
| 721-98-00860 | 707-98-14920 | 721-98-00130 |
| 707-99-47040 | 707-98-14370 | 721-98-00140 |
| 721-98-00160 | 707-98-23250 | 721-98-00590 |
| 707-99-47070 | 707-98-22840 | 721-98-00560 |
| 721-98-00170 | 707-98-24880 | 707-99-72060 |
| 721-98-00180 | 707-98-14260 | 707-99-37090 |
| 721-98-02460 | 707-98-13600 | 707-98-29650 |
| 721-98-02310 | 707-99-59750 | 721-98-00150 |
| 721-98-02330 | 707-99-59130 | 721-98-00220 |
| 707-99-58240 | 707-99-58450 | 721-98-01720 |
| 707-99-58260 | 707-98-24281 | 721-98-01750 |
| 707-99-58320 | 707-98-31110 | 721-98-01740 |

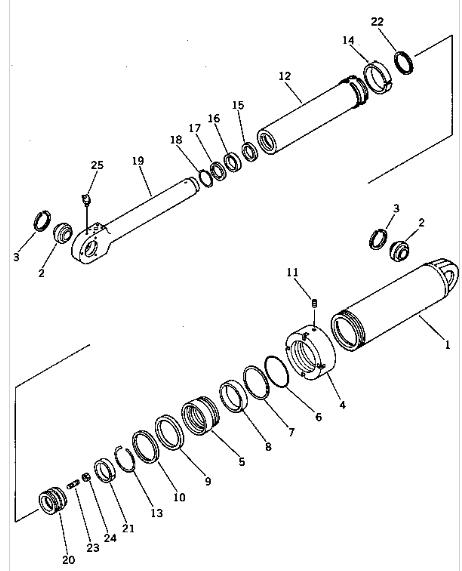

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 569-63-42100 | [2] | HOIST CYLINDER ASSY | |
| 1. | 569-63-42140 | [1] | CYLINDER,(1) |
| 2. | 569-63-22880 | [2] | BUSHING |
| 3. | 04071-00130 | [2] | RING,SNAP |
| 4. | 569-63-42230 | [1] | CROWN |
| 5. | 569-63-42130 | [1] | HEAD,CYLINDER |
| 6. | 07000-15185 | [1] | O-RING |
| 7. | 569-63-42190 | [1] | RING,BACK-UP |
| 8. | 566-63-23190 | [1] | BUSHING |
| 9. | 566-63-23180 | [1] | PACKING,ROD |
| 10. | 566-63-23571 | [1] | SEAL,DUST |
| 11. | 01320-40816 | [1] | SCREW |
| 12. | 569-63-42240 | [1] | CYLINDER,(2) |
| 13. | 569-63-42180 | [1] | RING,SNAP |
| 14. | 569-63-42170 | [1] | RING |
| 15. | 707-51-10211 | [1] | PACKING,ROD |
| 16. | 07177-01035 | [1] | BUSHING |
| 17. | 176-63-56170 | [1] | SEAL,DUST |
| 18. | 07179-00123 | [1] | RING,SNAP |
| 19. | 569-63-42120 | [1] | ROD,PISTON |
| 20. | 569-63-42160 | [1] | PISTON |
| 21. | 07155-01535 | [1] | RING |
| 22. | 707-44-15080 | [1] | RING,PISTON |
| 23. | 01124-81650 | [6] | STUD |
| 24. | 07165-11168 | [6] | NUT |
| 25. | 07020-00675 | [1] | FITTING |
