581-63-05041 5816305041 Seal Kit Hoist Cylinder For Komatsu Dump Truck HD1200-1
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
581-63-05041 5816305041 Seal Kit Hoist Cylinder For Komatsu Dump Truck HD1200-1
| Name | 581-63-05041 5816305041 Seal Kit Hoist Cylinder |
| OEM | 581-63-05041 5816305041 |
| Type | Hoist Cylinder Seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | IDI |
Part Numbers of Cylinder Service Kits:
| 878000538 | YM172151-72020 | 707-00-50691 |
| 707-99-59141 | YM172165-72640 | 707-98-11200 |
| 707-99-59140 | YM172157-99420 | 707-98-11210 |
| 721-98-02270 | YM172976-72360 | 878000378 |
| 723-98-00570 | 707-98-34180 | 878000380 |
| 721-98-01970 | 707-98-35520 | 878000381 |
| 721-98-01960 | 707-98-29680 | 707-00-55010 |
| 721-98-02600 | 707-98-26820 | 707-00-60410 |
| 721-98-01981 | 707-98-26200 | 707-98-12270 |
| 721-98-01980 | 707-99-26120 | 878000376 |
| 21X-63-02020 | 707-99-26570 | 707-98-11230 |
| 21X-63-02050 | 707-98-30710 | 707-98-11060 |
| 21X-63-02010 | 707-98-25310 | 707-98-03580 |
| 21X-63-02030 | 201-63-36700 | 707-98-03570 |
| 707-98-25600 | 201-63-46700 | 707-98-03590 |
| 707-98-25190 | 201-63-26700 | YM172186-72370 |
| 707-98-24180 | 201-63-66100 | YM172186-72190 |
| 707-98-25260 | 201-63-56100 | YM172186-72580 |
| 707-98-23860 | 201-63-76100 | 238-63-12302 |

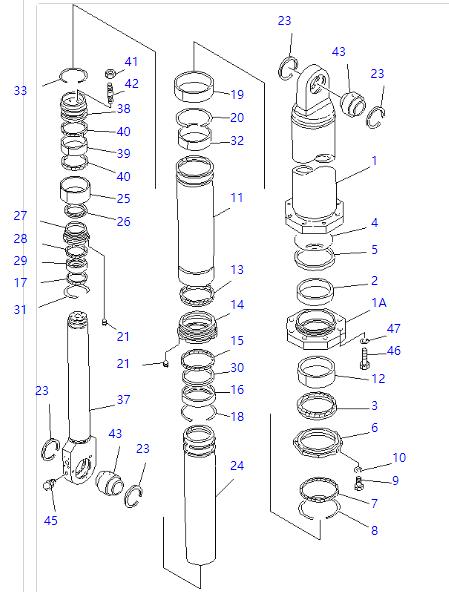

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 581-63-92101 | [2] | HOIST CYLINDER ASSY | |
| 1 | 581-63-22141 | [1] | CYLINDER |
| 1A. | 581-63-22131 | [1] | HEAD |
| 2. | 581-63-22191 | [1] | BUSHING (KIT) |
| 3. | 581-63-92180 | [1] | PACKING,ROD (KIT) |
| 4. | 581-63-92230 | [1] | O-RING (KIT) |
| 5. | 07001-05260 | [1] | RING,BACK UP (KIT) |
| 6. | 581-63-22720 | [1] | GLAND |
| 7 | 581-63-92570 | [1] | SEAL,DUST (KIT) |
| 8. | 581-63-22162 | [1] | RING,SNAP (KIT) |
| 9. | 01010-81245 | [8] | BOLT |
| 10. | 01602-21236 | [8] | WASHER,SPRING |
| 11. | 581-63-22243 | [1] | CYLINDER |
| 12. | 581-63-22291 | [1] | BUSHING (KIT) |
| 13. | 581-63-92280 | [1] | PACKING,ROD (KIT) |
| 14. | 581-63-22820 | [1] | GLAND |
| 15. | 581-63-92670 | [1] | SEAL,DUST (KIT) |
| 16. | 581-63-22840 | [1] | BUSHING (KIT) |
| 17. | 581-63-22850 | [1] | SEAL,DUST (KIT) |
| 18. | 581-63-22262 | [1] | RING,SNAP (KIT) |
| 19. | 581-63-22481 | [1] | RING,WEAR (KIT) |
| 20. | 581-63-92880 | [1] | RING,SNAP (KIT) |
| 21. | 581-63-22560 | [4] | SCREW |
| 23. | 04071-00150 | [4] | RING,SNAP |
| 24. | 581-63-22342 | [1] | CYLINDER |
| 25. | 07177-01240 | [1] | BUSHING (KIT) |
| 26. | 195-63-93551 | [1] | PACKING,ROD (KIT) |
| 27. | 581-63-22920 | [1] | GLAND |
| 28. | 195-63-93170 | [1] | SEAL,DUST (KIT) |
| 29. | 581-63-22940 | [1] | BUSHING (KIT) |
| 30. | 581-63-22950 | [1] | SEAL,DUST (KIT) |
| 31. | 581-63-92360 | [1] | RING (KIT) |
| 32. | 581-63-22581 | [1] | RING,WEAR (KIT) |
| 33. | 581-63-92980 | [1] | RING,SNAP (KIT) |
| 37. | 581-63-22122 | [1] | ROD,PISTON |
| 38. | 581-63-22682 | [1] | PISTON |
| 39. | 569-63-22580 | [1] | RING,WEAR (KIT) |
| 40. | 581-63-92470 | [2] | RING,PISTON (KIT) |
| 41. | 07165-12222 | [5] | NUT,NYLON |
| 42. | 01124-82255 | [5] | STUD |
| 43. | 581-63-22691 | [2] | BUSHING |
| 45. | 07020-00675 | [1] | FITTING |
| 46. | 01011-83005 | [8] | BOLT |
| 47. | 01643-33080 | [8] | WASHER |
| 1K. | 581-63-05041 | [1] | SERVICE KIT,HOIST CYLINDER |
| 1K. | 581-63-22981 | [1] | RING,SNAP (KIT) |
