1543256C1 Seal Kit For Case Light Equipment Backhoe Loader Lift Tilt Cylinder 550E 586H 580SM 550G 580SN 580L 570LXT

Name: 1543256C1 Seal Kit For Case Light Equipment Backhoe Loader Lift Tilt Cylinder 550E 586H 580SM 550G 580SN 580L 570LXT
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

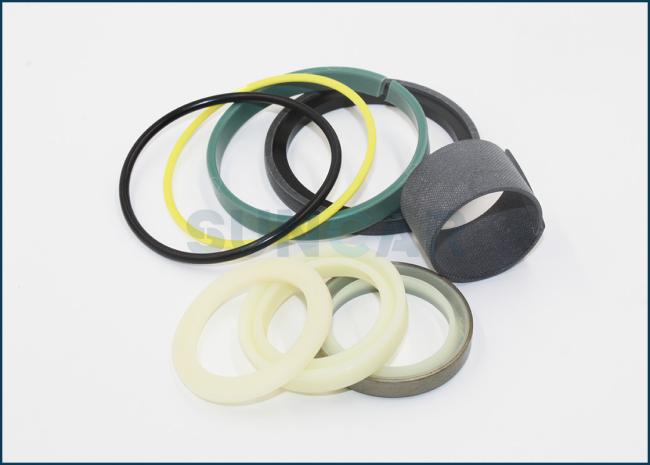

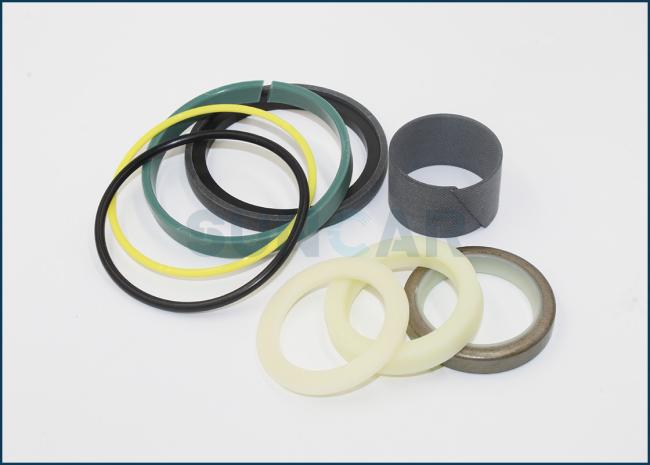

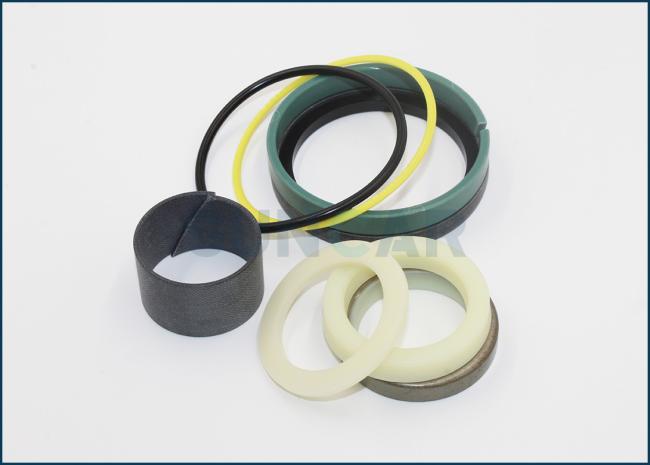

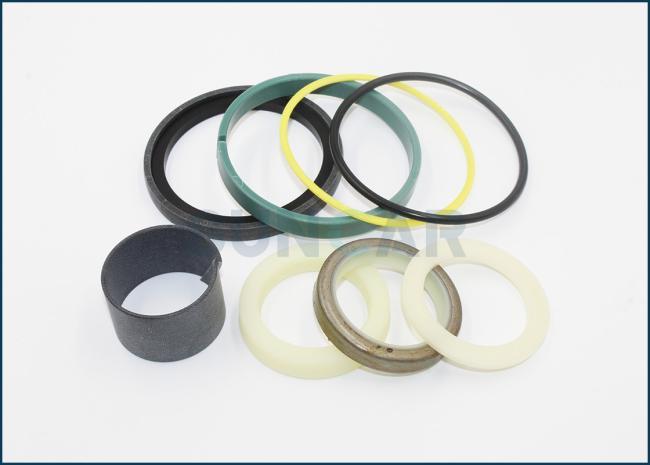

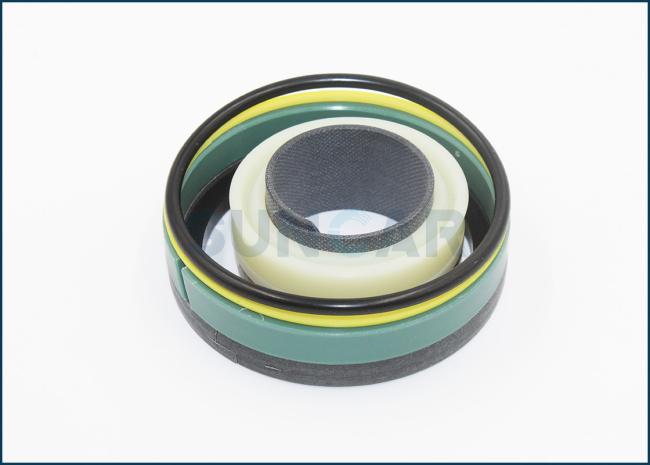

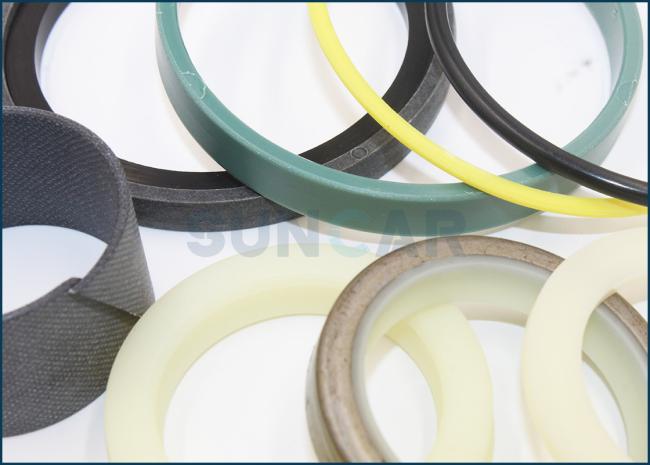

1543256C1 Seal Kit For Case Light Equipment Backhoe Loader Lift Tilt Cylinder

Name	1543256C1 Seal Kit
Model	HEAVY EQUIPMENT 550E 550G LIGHT EQUIPMENT 1840 1845C 40XT 560 570LXT 570MXT 570N EP 570NXT 580L 580M 580N 580N EP 580SK 580SL 580SM 580SM+ 580SN 580SN WT 585G 586G 586H 588G 588H 590 590L 590SL 590SM 590SM+ 590SN 60XT 660 70XT 75XT 85XT MATERIAL HANDLING 75XT 85XT 1840 90XT 1845C 95XT 40XT 586H 588H 60XT 70XT
Part numbers	1543256C1
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Case Cylinder Service Kits:

LZ00447	LZ007720	XKCC-00529
LZ00443	LZ010890	XKCC-00458
LZ00442	LZ011480	XKCD-01373
LZ008960	LZ010710	XKCD-03431
LZ00542	LZ010930	XKCD-02688
LZ00444	LZ011200	XKCD-03427
LZ00646	LZ010940	XKCD-03350
LZ00499	LZ010160	XKCD-01397
LZ00500	LZ012040	XKCD-03353
LZ00477	LZ012020	XKCC-01437
LZ00478	LZ012050	XKCC-01375
LZ00476	LZ12030	XKCC-01438
LZ007300	LZ011260	XKCC-01384
LZ007300	LZ011310	XKCC-01360
LZ007320	LZ013490	XKCC-01448
LZ007310	LZ013720	XKCC-01447
LZ010100	LZ012090	XKCC-01691
LZ00483	LZ012100	XKCD-03076
LZ00484	LZ012110	XKCD-03336

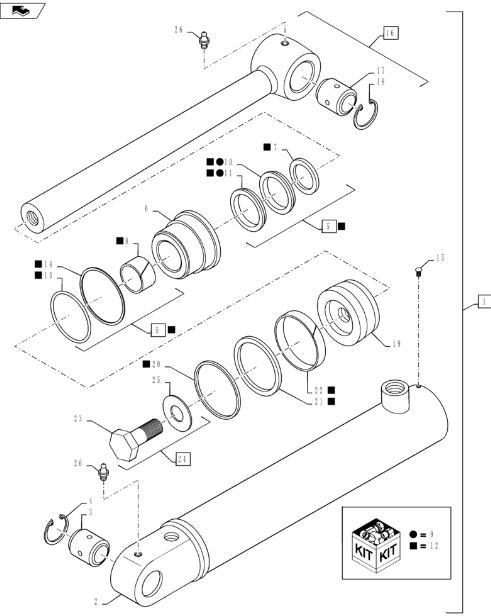

Parts on group (586H):

Pos.	Part No	Qty	Parts name
1	84426790	[2]	76 ID x 560 mm strk, Forklift Tilt, Incl 2 - 26
2	NSS	[1]	NOT SOLD SEPARAT
3	D46620	[1]	BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm
4	103-21200	[2]	SNAP RING,2", Int, #200
5	1542964C1	[1]	GLAND
6	297280A1	[1]	GLAND
9	1542874C1	[1]	SEAL KIT,38.1mm Rod
12	1543256C1	[1]	SEAL KIT,38.1mm Rod, 76.2mm Bore
15	86642312	[1]	SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
16	318882A1	[1]	ROD ASSY.
19	G108518	[1]	PISTON
23	25863R1	[1]	BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8
24	86982435	[1]	SPECIAL BOLT,3/4" - 16 x 2-1/2"
25	G32317	[1]	WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
26	219-1	[2]	LUBE NIPPLE,1/8" - 27 NPTF
