1543273C1 Seal Kit For Case Crawler Tactor Bucket Cylinder 1155E 550E 855E 850E 680K 550G 1150K/E 1150G 1150H 1150H_IND
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

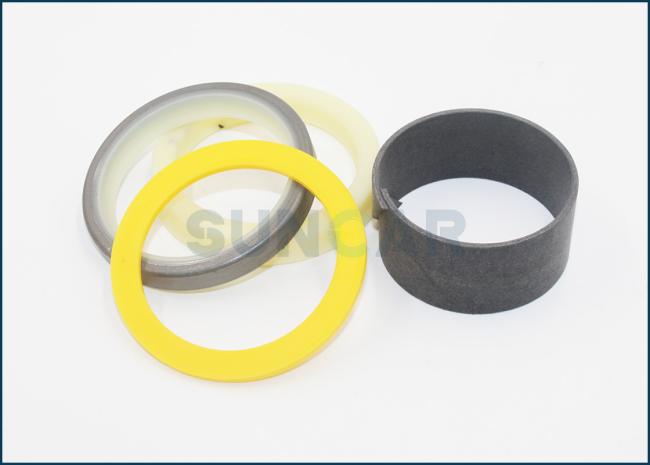

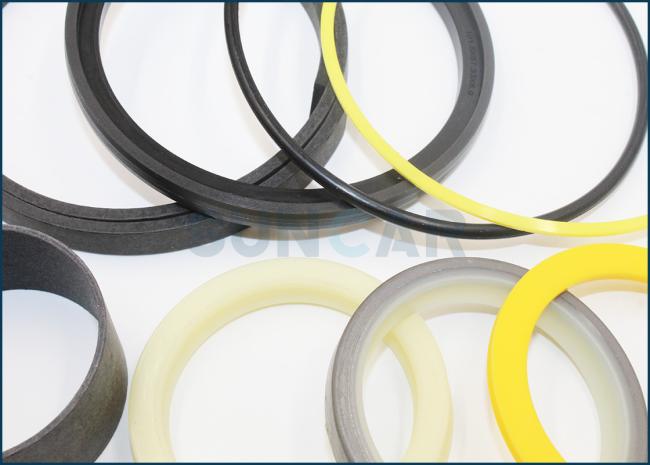

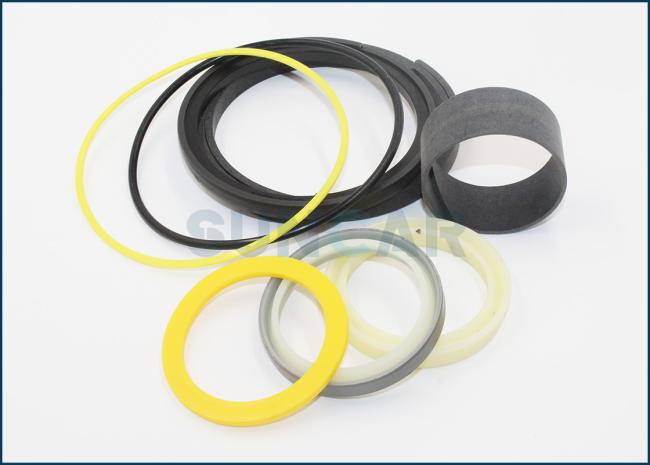

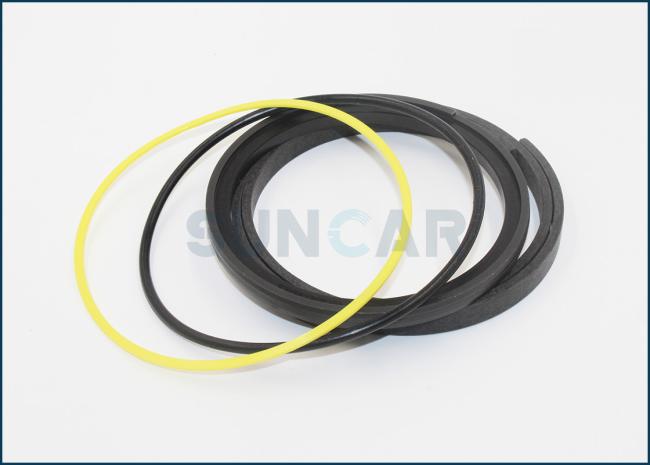

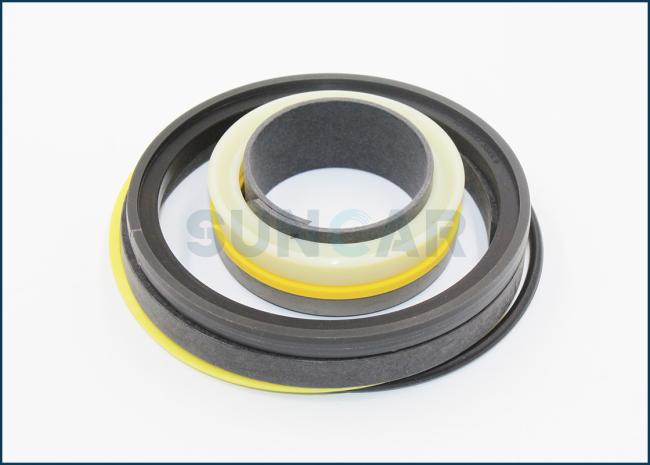

1543273C1 Seal Kit For Case Crawler Tactor Bucket Cylinder 1155E 550E 855E 850E 680K 550G 1150K/E 1150G 1150H 1150H_IND
| Name | 1543273C1 Seal Kit |
| Model |
1155E 550E 855E 850E 680K 550G 1150K/E 1150G 1150H 1150H_IND |
| Part numbers | 1543273C1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| XKCC-00458 | 1986604C1 | 234844A1 |
| XKCD-01373 | 1542883C1 | 87705824 |
| XKCD-03431 | 1543305C1 | 86631598 |
| XKCD-02688 | 1543306C1 | 1542923C2 |
| XKCD-03427 | 1543279C1 | G109423 |
| XKCD-03350 | 1543303C1 | 84257323 |
| XKCD-01397 | 1986823C2 | 84257788 |
| XKCD-03353 | 1543309C1 | 84259224 |
| 1986920C2 | 358013A1 | 1986603C1 |
| XKCC-01437 | 87434292 | 84259226 |
| XKCC-01375 | 358013A1 | 84259218 |
| 1346357C2 | 87016952 | PU01V00038R300 |
| XKCC-01438 | 1340763C1 | LZ012030 |
| XKCC-01384 | 360984A1 | LE022130 |
| XKCC-01360 | 1543279C1 | 87428866 |
| 360979A1 | 381101A1 | 135352A1 |
| 360982A1 | 87016953 | 1543267C1 |
| XKCC-01448 | 8605262 | 1543260C1 |
| XKCC-01447 | 8605263 | 84154316 |
| XKCC-01691 | 87440117 | LZ00621 |
| XKCD-03076 | 87598751 | LZ00464 |
| XKCD-03336 | 87495411 | LZ00463 |
| XKCD-03072 | 87529743 | LZ006970 |
| XKCD-03438 | 87530718 | LZ006980 |
| XKCD-03080 | 87399338 | LZ006960 |

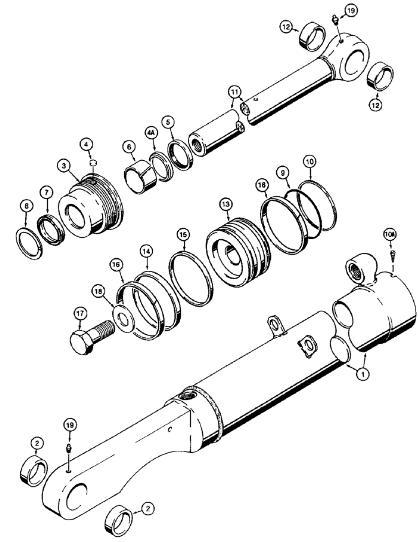

Parts on group (1150E):
| Pos. | Part No | Qty | Parts name |
| 1 | G107039 | [2] | CYLINDER ASSY. |
| 1 | G107040 | [1] | TUBE,4" DIA x 56.92" L |
| 2 | D33678 | [2] | BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L |
| 3 | 1543019C1 | [1] | CYLINDER END CAP |
| 4 | G102569 | [1] | PLUG |
| 4A. | NSS | [1] | NOT SOLD SEPARAT |
| 5 | D95144 | [1] | WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk |
| 6 | G101533 | [1] | WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk |
| 7 | G107923 | [1] | SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk |
| 7 | G100778 | [1] | SEAL |
| 8 | G107997 | [1] | SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk |
| 9 | 238-5242 | [1] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro |
| 10 | G32176 | [1] | BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk |
| 10 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 11 | G107046 | [1] | PISTON ROD |
| 12 | D33024 | [2] | BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L |
| 13 | G100438 | [1] | PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W |
| 14 | G102285 | [1] | SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk |
| 15 | G100440 | [1] | RING,Square, 5.28mm Thk x 88.01mm ID |
| 16 | G100448 | [2] | RING,101.6mm OD, Ext |
| 17 | 28-2044 | [1] | BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8 |
| 18 | G104989 | [1] | WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk |
| 19 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF |
| . . | 1543273C1 | [1] | SEAL KIT |
