84259225 Seal Kit For Case Backhoe Loder Bucket Cylinder 580N 580N EP 580SN 580SN WT 590SN

Name: 84259225 Seal Kit For Case Backhoe Loder Bucket Cylinder 580N 580N EP 580SN 580SN WT 590SN
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

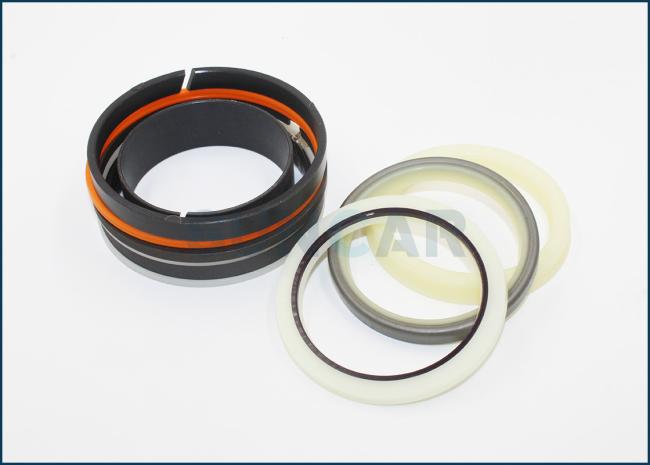

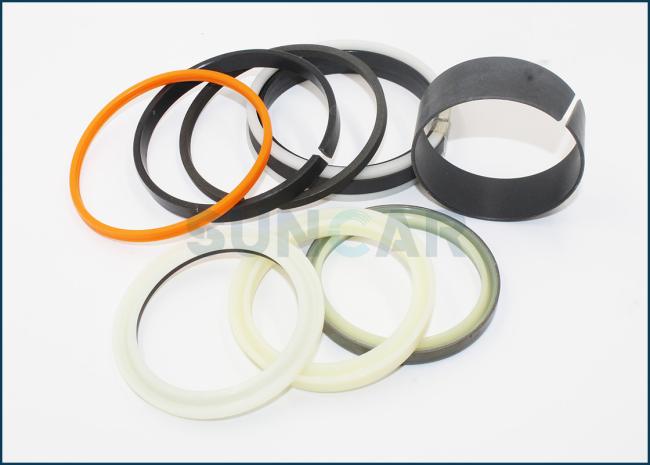

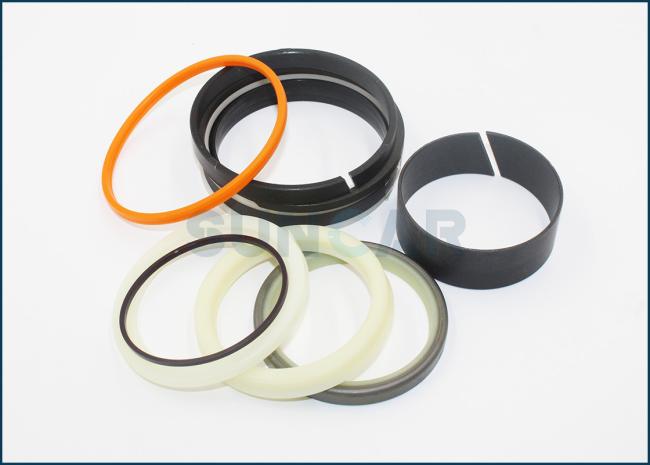

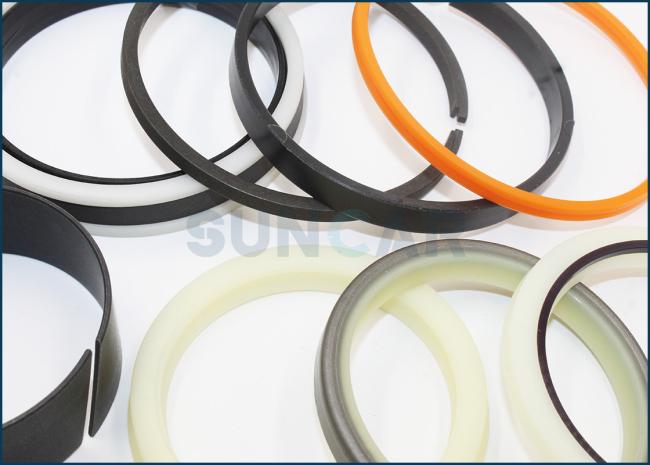

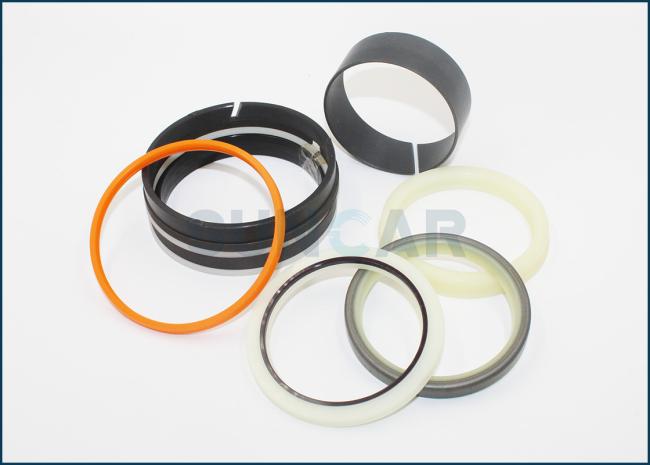

84259225 Seal Kit For Case Backhoe Loder Bucket Cylinder 580N 580N EP 580SN 580SN WT 590SN

Name	84259225 Seal Kit
Model	580N 580N EP 580SN 580SN WT 590SN
Part numbers	84259225
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Case Cylinder Service Kits:

Parts on group (580SN):

Pos.	Part No	Qty	Parts name
1	84421595	[1]	HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 88.9mm Bore, 897.9mm Stroke
2	84259225	[1]	SEAL KIT,63.5mm Rod x 88.9mm Bore
3	84323183	[1]	ROD,63.5mm OD
4	NSS	[1]	NOT SOLD SEPARAT
5	123407A1	[2]	BUSHING,60.19mm ID x 70mm OD x 28mm L
6	219-1	[2]	LUBE NIPPLE,1/8" - 27 NPTF
7	G109395	[1]	SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
8	86982442	[1]	SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"
9	84233448	[1]	BARREL,88.75mm Bore Dia
10	G100711	[1]	SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
11	87715783	[1]	SEAL,76.45mm ID x 88.9mm OD
12	84232661	[1]	PISTON ROD/GLAND,87.41mm Bore, 63.5mm Rod, 74.65mm W
13	238799A1	[1]	SEALING RING,Locking, 80.65mm ID x 88.77mm OD x 4.74mm Thk
14	84190554	[1]	GLAND
15	G109908	[1]	BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L
16	84130482	[1]	SEAL,81.4mm ID x 88.56mm OD x 4.85mm Thk
17	NSS	[1]	NOT SOLD SEPARAT
18	1542879C1	[1]	SEAL KIT,63.5mm Rod
19	D95146	[1]	WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
