84259227 Seal Kit For Case Backhoe Loader Stabilizer Cylinder 580N 580N EP 580SN 580SN WT 590SN
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

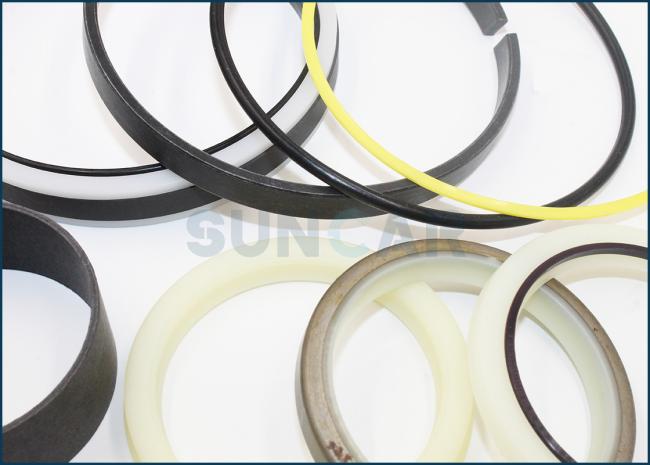

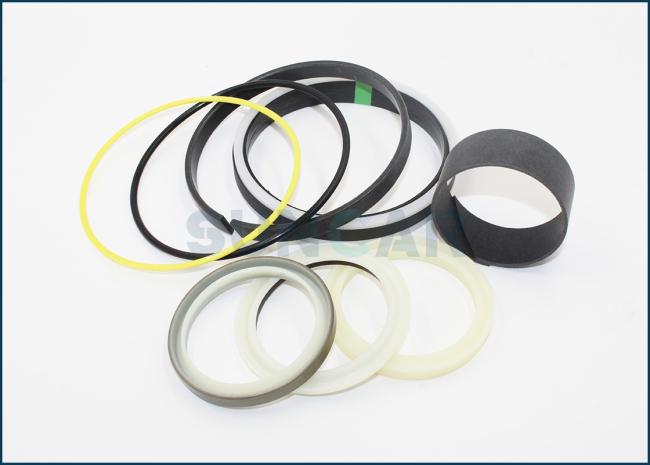

84259227 Seal Kit For Case Backhoe Loader Stabilizer Cylinder 580N 580N EP 580SN 580SN WT 590SN
| Name | 84259227 Seal Kit |
| Model | 580N 580N EP 580SN 580SN WT 590SN |
| Part numbers | 84259227 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| PX01V00069R300 | XKCD-01397 | 1986823C2 |
| LE01V00027R300 | XKCD-03353 | 1543309C1 |
| PX01V00043R200 | 1986920C2 | 358013A1 |
| PY01V00037R300 | XKCC-01437 | 87434292 |
| PH01V00027R300 | XKCC-01375 | 358013A1 |
| PY01V00043R400 | 1346357C2 | 87016952 |
| PH01V00034R300 | XKCC-01438 | 1340763C1 |
| PY01V00040R300 | XKCC-01384 | 360984A1 |
| PH01V00006R100 | XKCC-01360 | 1543279C1 |
| PH01V00006R100P | 360982A1 | 87016953 |
| PY01V00036R300 | XKCC-01448 | 8605262 |
| PS01V00001R300 | XKCC-01447 | 8605263 |
| PS01V00001R400 | XKCC-01691 | 87440117 |
| PS01V00002R300 | XKCD-03076 | 87598751 |
| PS01V00002R400 | XKCD-03336 | 87495411 |
| PS01V00003R300 | XKCD-03072 | 87529743 |
| PS01V00004R300 | XKCD-03080 | 87399338 |
| PS01V00004R400 | XKCC-00339 | 87529742 |
| PS01V00005R300 | XKCC-00040 | 84281863 |
| PS01V00005R400 | XKCC-00327 | 84282953 |
| PY01V00053R300 | XKCC-00973 | 84404910 |
| PY01V00052R300 | XKCC-00987 | 84402182 |
| PY01V00054R300 | XKCC-01002 | 47773169 |
| PY01V00050R300 | LZ013720 | 84572474 |
| LZ012110 | LZ012090 | 87434291 |
Parts on group (850SN):
| Pos. | Part No | Qty | Parts name |
| 1 | 84421606 | [1] | HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 114.3mm Bore, 542.9mm Stroke |
| 2 | 84259227 | [1] | SEAL KIT,57.2mm Rod x 114.3mm Bore |
| 3 | D95145 | [1] | WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W |
| 4 | 1542877C1 | [1] | SEAL KIT,57.2mm Rod |
| 5 | 87615484 | [1] | SEAL,108.43mm ID x 113.93mm OD x 5.41mm Thk |
| 6 | 1346476C1 | [1] | RING,57.15mm ID, Int |
| 7 | 219-1 | [1] | LUBE NIPPLE,1/8" - 27 NPTF |
| 8 | G101996 | [1] | WEAR RING,4.5" OD x 0.75" Thk |
| 9 | 84222154 | [1] | ROD,57.2mm OD x 771.4mm L |
| 10 | 84238794 | [1] | GLAND |
| 11 | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" |
| 12 | 84228260 | [1] | PISTON ROD/GLAND,113.64mm Bore, 57.25mm Rod, 56.45mm W |
| 13 | 86982442 | [1] | SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25" |
| 14 | NSS | [1] | NOT SOLD SEPARAT |
