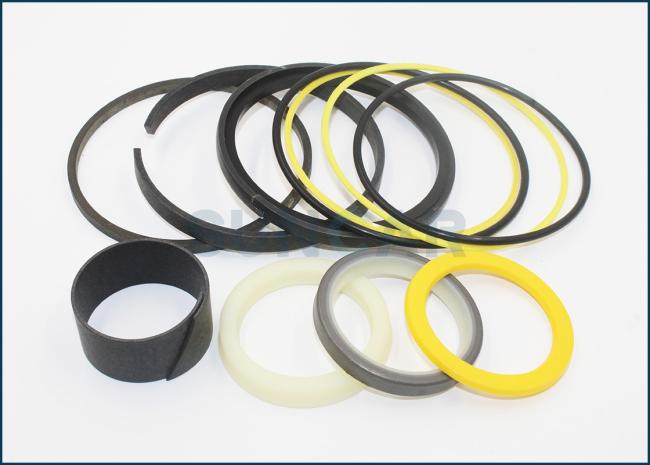

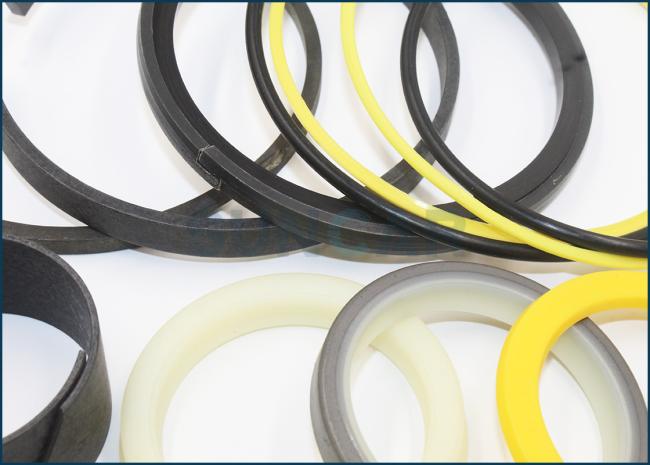

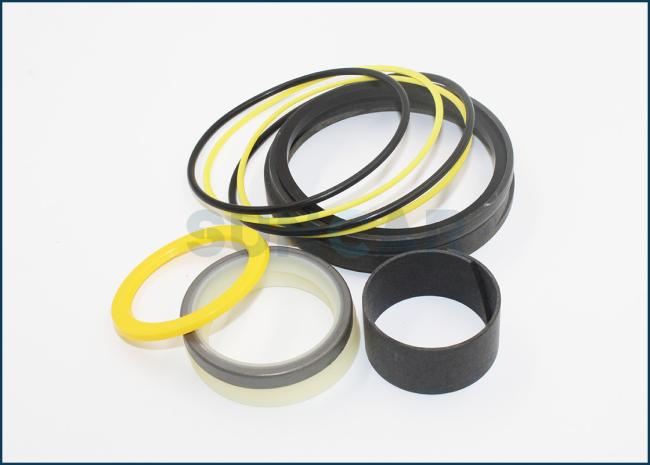

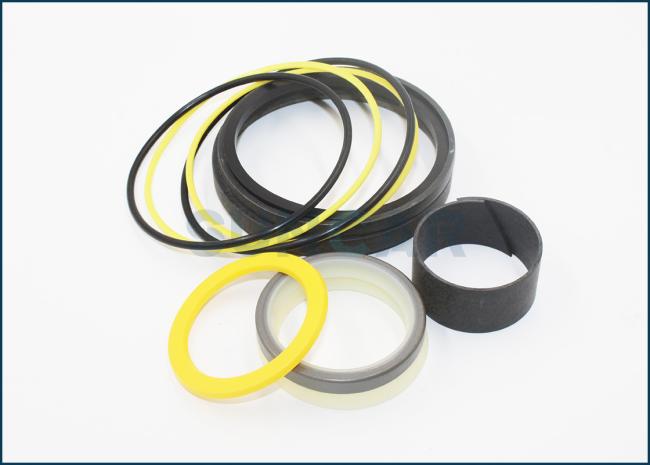

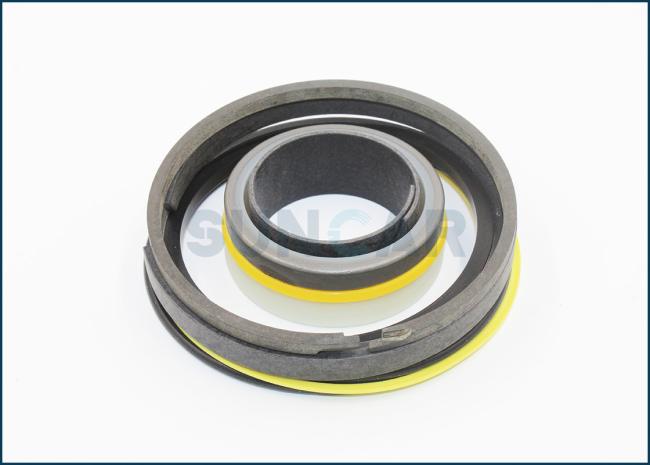

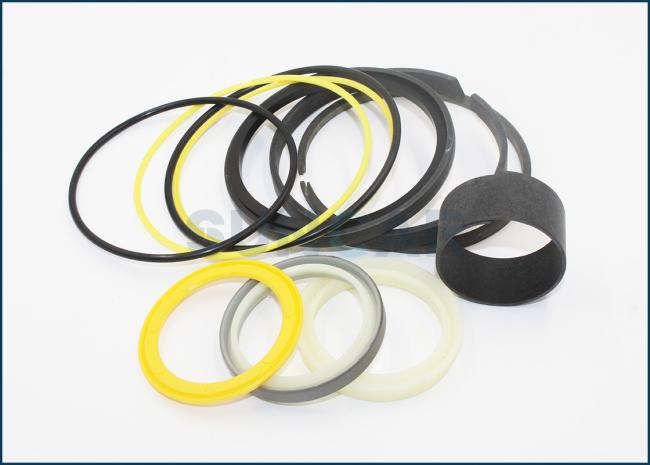

122535A1 Seal Kit For Case Backhoe Loader Swing Cylinder 570LXT 580L/M/N/SL/SM/SM+/SN 590L/SL/SM/SN
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
122535A1 Seal Kit For Case Backhoe Loader Swing Cylinder 570LXT 580L/M/N/SL/SM/SM+/SN 590L/SL/SM/SN
| Name | 122535A1 Seal Kit |
| Model | 570LXT 580L/M/N/SL/SM/SM+/SN 590L/SL/SM/SN |
| Part numbers | 122535A1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| LZ00453 | LZ007640 | PM01V00044R300 |
| LZ00456 | LZ007650 | PW01V00043R300 |
| LZ00455 | LZ008130 | PW01V00051R300 |
| LZ010790 | LZ00313 | PH01V00018R300 |
| LZ00457 | LZ008050 | PW01V00046R300 |
| LZ009410 | LZ008160 | PW01V00048R300 |
| LZ010780 | LZ011300 | PW01V00062R300 |
| LZ00451 | LZ008450 | PX01V00030R300 |
| LZ00452 | LZ008420 | PX01V00033R300 |
| LZ00445 | LZ008490 | PY01V00030R300 |
| LZ00361 | LZ011210 | PM01V00059R300 |
| LZ00374 | LZ011070 | PM01V00050R300 |
| LZ00446 | LZ008300 | PY01V00034R300 |
| LZ00447 | LZ007550 | PH01V00016R300 |
| LZ00443 | LZ007720 | YJ01V00009R300 |
| LZ00442 | LZ010890 | PH01V00014R300 |

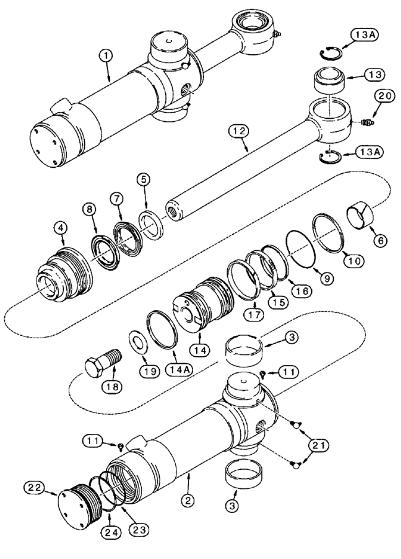

Parts on group (580SL) - BACKHOE LOADER (LIVERY):
| Pos. | Part No | Qty | Parts name |
| 1 | 139808A1 | [2] | CYLINDER ASSY. |
| 2 | 139810A1 | [1] | TUBE,101.60mm Dia |
| 2 | 199953A1 | [1] | BARREL,101.6mm Diameter |
| 3 | 124568A2 | [2] | RING,69.92mm ID x 77mm OD x 28mm L |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 4 | G109899 | [1] | GLAND |
| 5 | D95144 | [1] | WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk |
| 6 | G101533 | [1] | WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk |
| . . | 1542876C1 | [1] | SEAL KIT,50.8mm Rod |
| 7 | 1543001C1 | [1] | SEAL |
| 8 | 1543000C1 | [1] | SEAL |
| 9 | 238-5239 | [1] | O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro |
| 10 | G109299 | [1] | BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk |
| 11 | 276-2446 | [2] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 12 | 177518A1 | [1] | PISTON ROD |
| 13 | 137248A1 | [1] | RING,50.79mm ID x 80.96mm OD x 44.45mm W |
| 13A. | 100-21315 | [2] | SNAP RING,3.156", Int, #315 |
| 14 | 112370A2 | [1] | JACK PISTON |
| 14A. | 121478A1 | [1] | RING,96.72mm ID, Ext |
| 15 | G102285 | [1] | SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk |
| 16 | G100440 | [1] | RING,Square, 5.28mm Thk x 88.01mm ID |
| 17 | G100448 | [1] | RING,101.6mm OD, Ext |
| 18 | 28-1664 | [1] | BOLT,Hex, 1" - 14 x 4", Gr 8 |
| 19 | G32303 | [1] | WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk |
| 20 | 219-1 | [1] | LUBE NIPPLE,1/8" - 27 NPTF |
| 21 | 219-55 | [2] | LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF |
| . . | 124462A1 | [1] | CYLINDER END CAP |
| 22 | 124463A1 | [1] | CYLINDER END CAP |
| 23 | 238-5242 | [1] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro |
| 24 | G32176 | [1] | BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk |
| . . | 122535A1 | [1] | SEAL KIT |
