D148100 Seal Kit Steering Cylinder For Case Construction King Forklift 480F 480F LL 580E 580SE 584E 585E 586 760 860

Price Negotiable
Price: Negotiable
MOQ: Accept trial order
Delivery Time: 3-5 days after payment received(public holiday excluded)
Brand: SUNCAR
Product Description

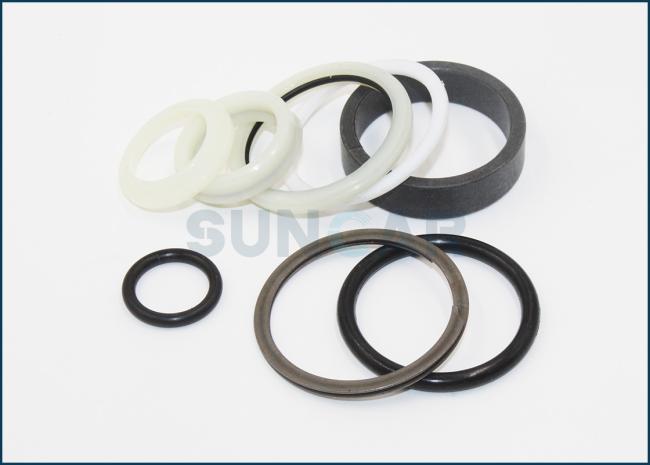

D148100 Seal Kit Steering Cylinder For Case Construction King Forklift 480F 480F LL 580E 580SE 584E 585E 586 760 860

Name D148100 Seal Kit Steering Cylinder For Case
Model

Construction King Forklift 480F 480F LL 580E 580SE 584E 585E 586 760 860

Tractor 1394

Part numbers D148100
Type Cylinder Seal Kit
MOQ 10 SETS
Feature Durable, Profession, abrasion and heat proof;Higher-toughness/Wear Resistance/High&Low Temperature resistence
Make up O-Ring,Hole seal,Shaft seal,Wiper seal
Pressure 0~60MPa
Temperature -45 +200
Speed 15m/s
Medium Hydraulic oil, fire retardant liquid, water and others
Material PTU/IDI
Payment terms L/C, Paypal, T/T, Western Union, Bank Transfer
Paking details PP bag inside,carton box outside.
Original place Guangdong,China
Transport mode By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
Advantage

Pressure flexibility and contamination prevention

Affordability and simple maintenance

Highly adaptable and durable

Water-resistance and safety(safe material)



Part Numbers of Case Cylinder Service Kits:

LZ008960 LZ011480 72275471
LZ007320 LZ011310 PE01V00004R100
LZ007300 LZ12030 PF01V00006R300
LZ007300 LZ011260 PE01V00003R100
LZ00646 LZ011200 72275473
LZ00542 LZ010710 72275470
LZ00500 LZ010160 PU01V00024R300
LZ00499 LZ010940 72275474
LZ00478 LZ012020 72282317
LZ00477 LZ012040 PV01V00045R300
LZ00476 LZ012050 PU01V00013R100
LZ00447 LZ007550 PH01V00016R300
LZ00444 LZ010930 72275472
LZ00443 LZ007720 YJ01V00009R300
LZ00442 LZ010890 PH01V00014R300

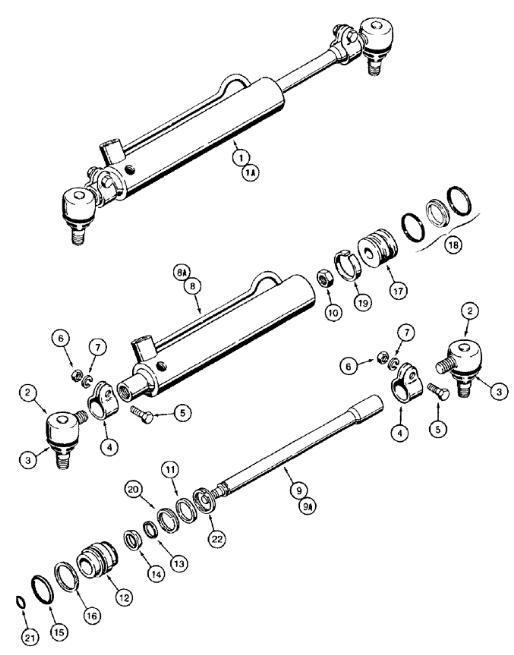

Parts on group (584E) - BACKHOE LOADER (LIVERY):

Pos. Part No Qty Parts name
1 D147753 [2] CYLINDER
1 234447A1R [2] REMAN-HYD CYLINDER
1 234447A1C [2] CORE-HYD CYLINDER
1 234447A1 [2] CYLINDER,19.05mm Rod, 165.1mm Stroke
1A. D147756 [2] STEERING CYLINDER
. . 234449A1R [2] REMAN-HYD CYLINDER
. . 234449A1C [1] CORE-HYD CYLINDER
1A. 234449A1 [2] STEERING CYLINDER,19.05mm Rod, 187.45mm Stroke
2 A40962 [2] BALL JOINT
3 A41424 [1] SEAL
. . A27080 [2] CLAMP
4 NSS [1] NOT SOLD SEPARAT
5 413-624 [1] BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
6 425-106 [1] NUT,3/8"-16, Cl 5
7 492-11038 [1] LOCK WASHER,3/8"
8 D148568 [1] TUBE ASSY.
8 301361A1 [1] HYD TUBE,1.504" ID, 1.75" OD, 10.62" Length
8A. N7467 [1] TUBE ASSY.,1.504" ID x 1.75" OD
9 N8890 [1] PISTON ROD
9 234446A1 [1] PISTON ROD
9A. N7466 [1] ROD
9A. 234448A1 [1] ROD
10 131-1145 [1] JAM NUT,5/8" - 18
11 A44641 [1] SPACER,31.62mm ID x 34.37mm OD x 7.7mm L
. . D147757 [1] HEAD
12 NSS [1] NOT SOLD SEPARAT
13 A44651 [1] WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk
14 NSS [1] NOT SOLD SEPARAT
15 238-6218 [1] O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro
16 A45035 [1] SEALING RING,34.88mm ID x 38mm OD x 1.58mm W
. . D147754 [1] PISTON
17 NSS [1] NOT SOLD SEPARAT
18 NSS [1] NOT SOLD SEPARAT
19 D83186 [1] SEAL
20 102-23150 [1] SNAP RING,#150, 1.591", Int, Spiral
21 238-7113 [1] O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro
22 102-12125 [1] SNAP RING,#125, 1.188", Ext Spiral
. . D148100 [1] GASKET KIT
