China 420-00030 42000030 Kit Fits Doosan Pedal Valve Assy S150LC-7B SOLAR 130LC/140/150/155/170LC/175/220/225/230/250/255-V for sale

420-00030 42000030 Kit Fits Doosan Pedal Valve Assy S150LC-7B SOLAR 130LC/140/150/155/170LC/175/220/225/230/250/255-V

Name: 420-00030 42000030 Kit Fits Doosan Pedal Valve Assy S150LC-7B SOLAR 130LC/140/150/155/170LC/175/220/225/230/250/255-V
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-7 days after payment received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

420-00030 42000030 Kit Fit Doosan Pedal Valve Assy S150LC-7B SOLAR130LC/140/150/155/170LC/175/220/225/230/250/255/290/300/330/340/400/420/450/470/500-V

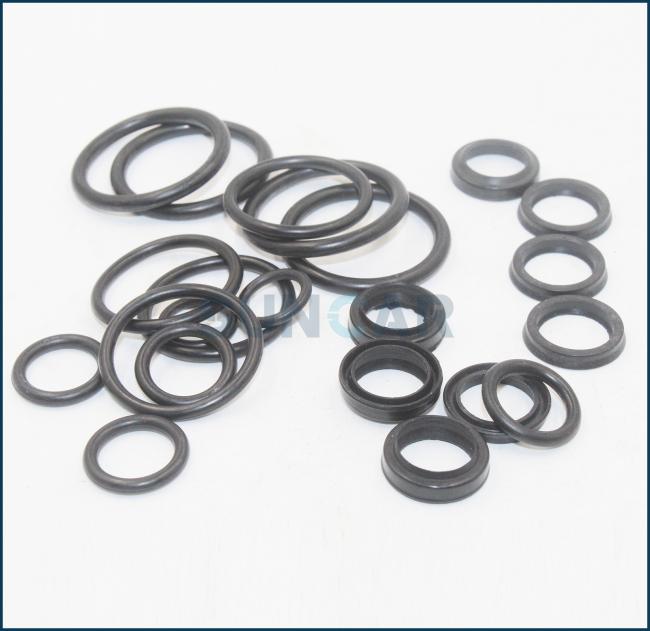

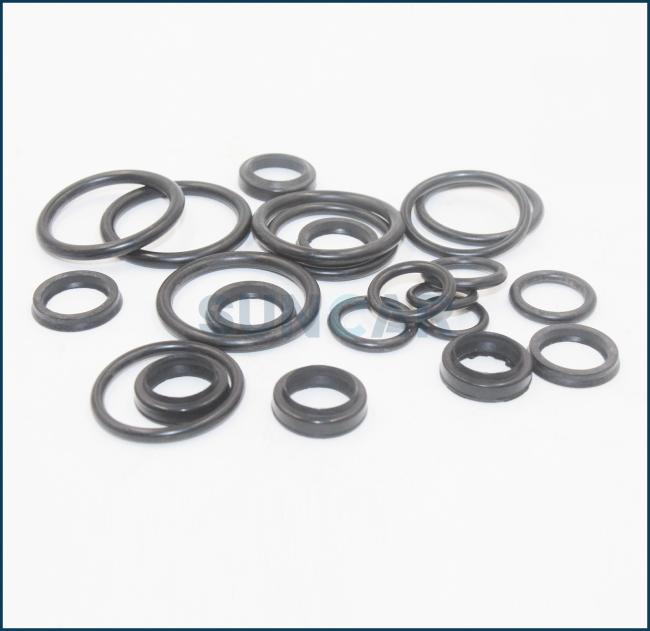

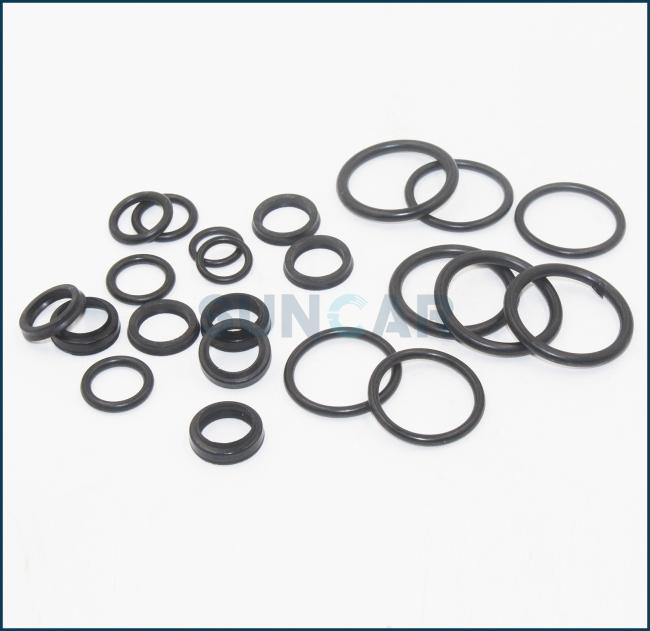

Description: Seal repair kit for travel control valve/Pedal valve.

Product name	420-00030 42000030 Kit Fit Doosan Pedal Valve Assy
Brand	SUNCAR
Part name	Travel control valve seal kit; Pedal valve seal kit.
Color	As per standard color/customize color
Temperature	-35 ~ 220 ℉ c (depending on the material)
Section code	Cylinder
Hardness	60-90 Shore A
Material	NBR (Nitrile Butadiene Rubber)
Material	FKM
Material	Nylon
Material	Steel
Material	Copper
Material	PTFE
Material	Polyurethane (PU)
Package	PP bag, carton, wooden box, or as required Nuetral packaging or OEM packaging
Quality	Fabric
Features	High temperature resistance ;
Features	Good performance.
Features	High pressure resistance.
MOQ	Accept trail order
Type	Hydraulic seal kit.
Payment terms	T/T, Western Union, Paypal,Bank transfer.
Market	North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Shipping mode	By air, by sea, by express
Express	Post FedEx , UPS,DHL,TNT etc
Loading port	Huangpu port,China
Original place	Guangzhou city,Guangdong province,China
Forwarder	Your local forwarder or we find shipping ways for you
Quality	Stable quality,OEM standard,Genuine/Aftermarket

Related Parts:

K9002933	2440-9172KT	401107-00022
440-00348KT	2440-9173KT	401107-00028
2440-9128K	2440-9174KT	401107-00031
2440-6227AKT	2440-9175BKT	401107-00032
2440-6228AKT	2440-9180K	401107-00147
2440-9125KT	2440-9186AKT	401107-00208
2440-9127K	2440-9413AKT	401107-00259A
2440-9164K	2440-9415AKT	401107-00298
2440-9122KT	2440-9204KT	401107-00337A
2440-9124KT	2440-9205KT	401107-00205A
440-00020AKT	2440-9206KT	401107-00584
2440-6085AK	2440-9207KT	401107-00757
2440-9276KT	2440-9208KT	401107-00242A
2440-9406CKT	2440-9209K	K9006618
2440-9282GKT	2440-9210KT	440-00015AKT
6677470	2440-9211K	401107-00578
7009969	2440-9214AKT	07212188

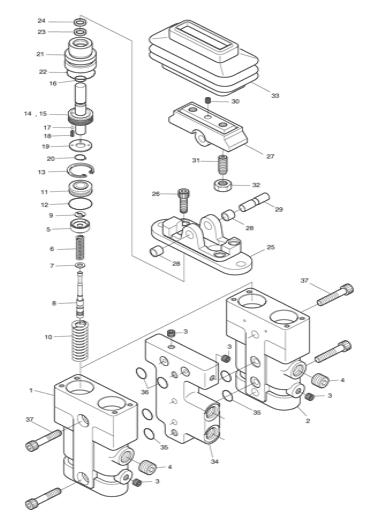

Parts on Group SOLAR 130LC-V:

Pos.	Part No	Qty	Parts name
-.	420-00030	[1]	PEDAL VALVE
1	J98J1001	[1]	BODY(1)
10	J98J1007	[4]	SPRING
11	J98J1008	[4]	GUIDE;ROD
12	P022	[4]	O-RING
13	SR28CH	[4]	RING;SNAP
14	J98J1009	[4]	ROD;PUSH
15	SP0306	[4]	PIN;SPRING
16	J98J1010	[4]	SEAL
17	SB18	[4]	BALL;STEEL
18	J98J1011	[4]	SPRING
19	J98J1012	[4]	PLATE
2	J98J1002	[1]	BODY(2)
20	SR11CS	[4]	RING;SNAP
21	J98J1013	[4]	PLUG
22	G025	[4]	O-RING
23	RSY12	[4]	SEAL;ROD
24	DSP12	[4]	SEAL;DUST
25	J98J1014	[2]	COVER
26	WBM0630	[4]	BOLT;WRENCH M6X1.0X30
27	J24D2005	[2]	CAM
28	DU1010	[4]	BUSHING
29	J24D2016	[2]	SHAFT;CAM
3	NWP116	[4]	PLUG NPT1/16
30	SBM0605	[2]	SCREW;SET
31	J24D2015	[4]	SCREW;SET
32	HNM10	[4]	NUT M10
33	J24D2006	[2]	BELLOWS
34	J98J1015	[1]	SPACER
35	P012	[4]	O-RING
36	P010	[2]	O-RING
37	WBM1042	[4]	BOLT;WRENCH M10X1.5X42
4	WPT38	[2]	PLUG PT3/8
5	J98J1003	[4]	SEAT;SPRING
6	J98J1004	[4]	SPRING
7	J24D2008	[4]	SEAT;SPRING
8	J98J1005	[4]	SPOOL
9	J98J1006	[4]	STOPPER
