31Y1-35590 31Y135590 Seal Kit Boom Cylinder For Hyundai HX480 L HX520 L R480LC-9/A/S/MH R520LC-9/A/S

Name: 31Y1-35590 31Y135590 Seal Kit Boom Cylinder For Hyundai HX480 L HX520 L R480LC-9/A/S/MH R520LC-9/A/S
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Trial order accepted

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

31Y1-35590 31Y135590 Seal Kit Boom Cylinder For Hyundai HX480 L HX520 L R480LC-9/A/S/MH R520LC-9/A/S

Iteam name	31Y1-35590 31Y135590 Seal Kit Boom Cylinder
Brand	SUNCAR
Fits brand	HYUNDAI
Part number	31Y1-35590 31Y135590
Market	North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Feature	Higher-toughness/Wear resistance/High&low temperature resistence
Function	Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Supply ability	550 sets per week
Transport mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
AppliC-A-Ted equipment	CRAWLER EXCAVATOR HYUNDAI
Original place	Guangdong province,China
Loading port	Huangpu port,China
Avaliability	In stock
CertifiC-A-Tion	ISO9001
Terms of payment	Western Union,T/T, Paypal,Bank transfer,Alipay
Delivery details	3-7 days after payment received(Public Holiday Excluded)
MOQ	Accept trial order
Type	Oil seal
Standard or nonstandard	Standard

Compatible models:

9-SERIES CRAWLER EXCAVATOR	R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S
F-SERIES CRAWLER EXCAVATOR	HX480L HX520L

Relative Parts:

31Y1-20910	31EM-00545	XKCC-00283
31Y1-18490	31Y1-06731	31Y1-26410
31Y1-18480	31Y1-30111	31Y1-33870
31Y1-18110	31Y1-29930	31Y1-33710
31Y1-18210	31Y1-30290	31Y1-34010
31Y1-20430	XKCC-01329	31Y1-28960
31Y1-31150	31Y2-03751	31Y1-34600
31Y1-31490	31Y2-08080	31Y1-36851
31Y1-34790	XKCC-01422	31Y1-35840
31Y1-35030	31Y2-11800	31Y1-03710
31Y1-26580	XKCC-00140	XKCC-00397
31Y1-15880	31Y2-05920	XKCC-00528
31Y1-15230	31Y2-11980	XKCC-00436
31Y1-15700	XKCC-00225	31Y1-35590

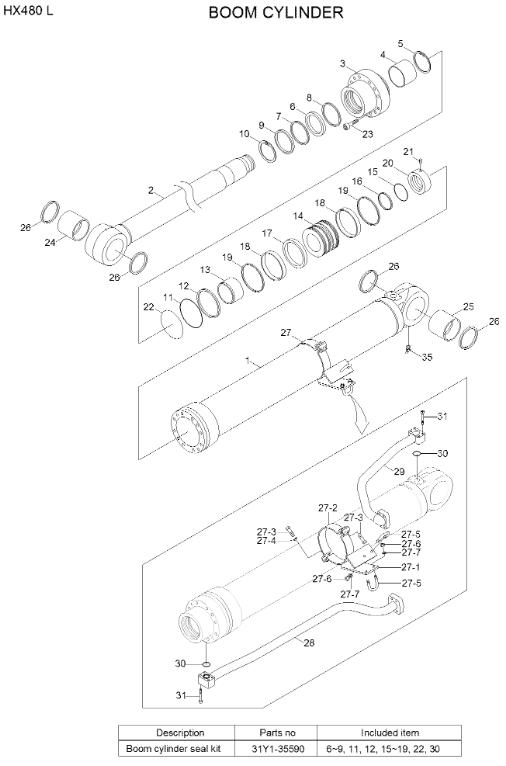

Parts on group:

Pos.	Part No	Qty	Parts name
*.	31KB-51011	[1]	BOOM CYLINDER ASSY-LH
*.	31KB-51021	[1]	BOOM CYLINDER ASSY-RH
*-1.	31Y1-45040	[1]	BOOM CYL SUB ASSY
1	31Y1-35471	[1]	TUBE ASSY
2	31Y1-35531	[1]	ROD ASSY
3	31Y1-35560	[1]	GLAND
4	S732-115045	[1]	BUSHING-DD2
5	Y191-123000	[1]	RING-SNAP
K6.	Y220-115113	[1]	SEAL-ROD
K7.	Y180-115020	[1]	RING-BACK UP
K8.	Y240-115012	[1]	RING-BUFFER
K9.	Y110-115011	[1]	WIPER-DUST
10	Y190-131000	[1]	RING-SNAP
K11.	S632-160004	[1]	O-RING
K12.	S642-161003	[1]	RING-BACK UP
13	31YC-28120	[1]	RING-CUSHION
14	31Y1-35585	[1]	PISTON
K15.	S632-090004	[1]	O-RING
K16.	S642-090003	[2]	RING-BACK UP
K17.	Y420-170000	[1]	SEAL-PISTON
K18.	Y310-170200	[2]	RING-WEAR
K19.	Y440-170100	[2]	RING-DUST
20	31YC-68120	[1]	NUT-LOCK
21	S114-100164	[1]	SCREW-SET
K22.	31YC-99H90	[1]	O-RING
23	S109-220954	[12]	BOLT-SOCKET
24	61KH-73810	[1]	BUSHING-PIN
25	61QH-96610	[1]	BUSHING-PIN
26	Y020-120000	[4]	SEAL-DUST,DLI,KPU
27	31Y1-26503G9	[1]	BAND ASSY-LH
27	31Y1-26513G9	[1]	BAND ASSY-RH
27-1.	31Y1-26521	[1]	BAND SUB ASSY-LH
27-1.	31Y1-26531	[1]	BAND SUB ASSY-RH
27-2.	31YC-32190	[1]	BAND
27-3.	S015-120452	[4]	BOLT-HEX
27-4.	S411-120002	[4]	WASHER-SPRING
27-5.	S071-024330	[2]	U-BOLT
27-6.	S201-101002	[4]	NUT-HEX
27-7.	S411-100002	[4]	WASHER-SPRINIG
28	31Y1-35603G9	[1]	PIPE ASSY-R,LH
28	31Y1-35613G9	[1]	PIPE ASSY-R,RH
29	31Y1-35862G9	[1]	PIPE ASSY-B,LH
29	31Y1-35872G9	[1]	PIPE ASSY-B,RH
K30.	Y171-024004	[2]	O-RING
31	S107-120606	[8]	BOLT-SOCKET
35	S652-810002	[1]	NIPPLE-GREASE
K.	31Y1-35590	[1]	SEAL KIT
