31Y1-15880 31Y115880 Seal Kit Boom Cylinder For Hyundai 7-SERIES CRAWLER EXCAVATOR R210LC-7 R210/220LC-7H
Price:
Negotiable
MOQ:
Trial order accepted
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
31Y1-15880 31Y115880 Seal Kit Boom Cylinder For Hyundai 7-SERIES CRAWLER EXCAVATOR R210LC-7 R210/220LC-7H
| Iteam name | 31Y1-15880 31Y115880 Seal Kit Boom Cylinder |
| Brand | SUNCAR |
| Fits brand | HYUNDAI |
| Part number | 31Y1-15880 31Y115880 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | CRAWLER EXCAVATOR HYUNDAI |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Terms of payment |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Oil seal |
|
Standard or nonstandard |
Standard |
Compatible models:
| 7-SERIES CRAWLER EXCAVATOR | R210LC-7 R210/220LC-7H |
Relative Parts:
| 31Y1-08691 | 31Y2-01990 | 31Y2-10430 |
| 31Y1-18411 | 31Y2-02180 | XKCC-00748 |
| 31Y1-35450 | 31Y2-06260 | XKCC-00170 |
| 31Y1-33571 | 31Y1-34340 | 31Y2-10700 |
| 31Y1-08692 | 31Y1-30291 | 31Y2-10880 |
| 31Y1-35451 | 31Y2-05311 | XKCD-03080 |
| 31Y1-03561 | 31Y1-34011 | 31Y118430 |
| 31Y1-03562 | 31Y1-35841 | 31Y1-24791 |
| 31Y1-03561 | 31Y1-03711 | 31Y1-03860 |
| 31Y1-03562 | 31Y1-03712 | 31Y1-03861 |
| 31Y1-15705 | 401107-02036 | 31Y1-03862 |

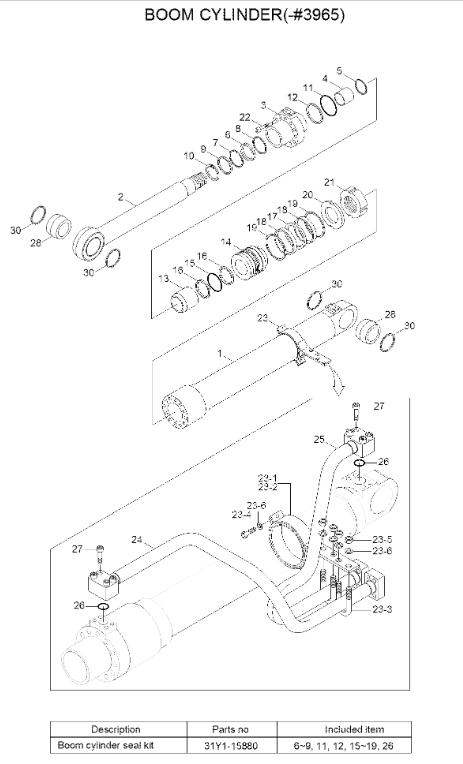

Parts on group:
| Pos. | Part No | Qty | Parts name |
| *. | 31N6-50111 | [1] | CYLINDER ASSY,RH |
| *. | 31N6-50121 | [1] | CYLINDER ASSY,LH |
| *-1. | 31Y1-15711 | [1] | BOOM CYL SUB ASSY |
| 1 | 31Y1-15721 | [1] | TUBE ASSY |
| 2 | 31Y1-15770 | [1] | ROD ASSY |
| 3 | 31Y1-15800 | [1] | GLAND |
| 4 | S732-085030 | [1] | BUSHING-DU |
| 5 | Y191-092000 | [1] | RING-SNAP |
| K6. | Y220-085011 | [1] | SEAL-ROD |
| K7. | Y180-085020 | [1] | RING-BACK UP |
| K8. | Y240-085013 | [1] | RING-BUFFER |
| K9. | Y110-085011 | [1] | WIPER-DUST |
| 10 | Y190-099000 | [1] | RING-SNAP |
| K11. | S631-110004 | [1] | O-RING |
| K12. | S641-110003 | [1] | RING-BACK UP |
| 13 | 31YC-23020 | [1] | RING-CUSHION |
| 14 | 31Y1-15810 | [1] | PISTON |
| K15. | S632-075004 | [1] | O-RING |
| K16. | S642-075003 | [2] | RING-BACK UP |
| K17. | Y420-120000 | [1] | SEAL-PISTON |
| K18. | Y310-120000 | [2] | RING-WEAR |
| K19. | Y440-120000 | [2] | RING-DUST |
| 20 | 31YC-66040 | [1] | WASHER-LOCK |
| 21 | 31YC-61242 | [1] | NUT-LOCK |
| 22 | S109-160804 | [12] | BOLT-SOCKET |
| 28 | 31YC-11115 | [1] | BUSHING-PIN |
| 29 | 31YC-11245 | [1] | BUSH-PIN |
| 30 | Y000-080200 | [4] | SEAL-DUST |
| 23 | 31Y1-15820 | [2] | BAND ASSY |
| 23-1. | 31Y1-15830 | [1] | BAND SUB ASSY |
| 23-2. | 31YC-32220 | [1] | BAND |
| 23-3. | S071-022730 | [2] | U-BOLT |
| 23-4. | S011-100352 | [4] | BOLT-HEX |
| 23-5. | S201-101002 | [4] | NUT-HEXAGON HEAD |
| 23-6. | S411-100002 | [8] | WASHER-SPRING |
| 24 | 31Y1-15840 | [1] | PIPE ASSY-R/LH |
| 24 | 31Y1-15850 | [1] | PIPE ASSY-R/RH |
| 25 | 31Y1-18220 | [1] | PIPE ASSY-B/LH |
| 25 | 31Y1-18230 | [1] | PIPE ASSY-B/RH |
| K26. | Y171-019004 | [2] | O-RING |
| 27 | S107-100454 | [8] | BOLT-SOCKET HEAD |
| K. | 31Y1-15880 | [1] | SEAL KIT |
