31Y1-15705 31Y115705 Seal Kit Bucket Cylinder For Hyundai 7-SERIES EXCAVATOR R200W7 R200W7A R210LC7 R210LC7A R210LC7
Price:
Negotiable
MOQ:
Trial order accepted
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

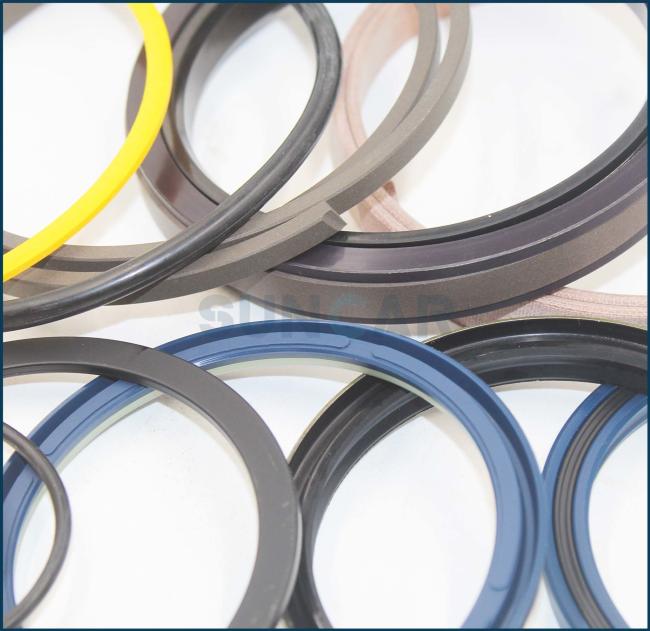

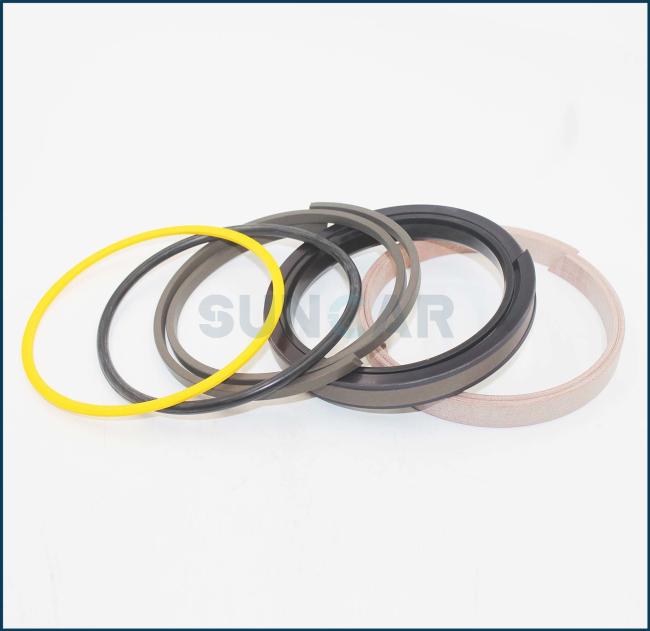

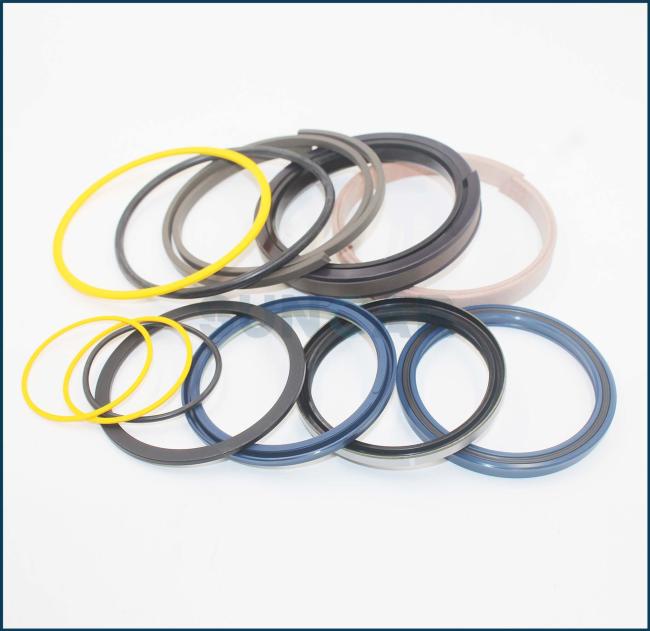

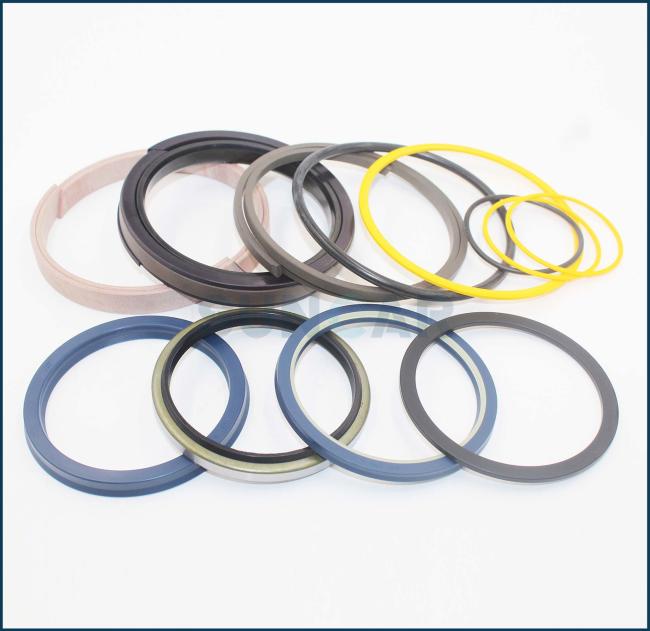

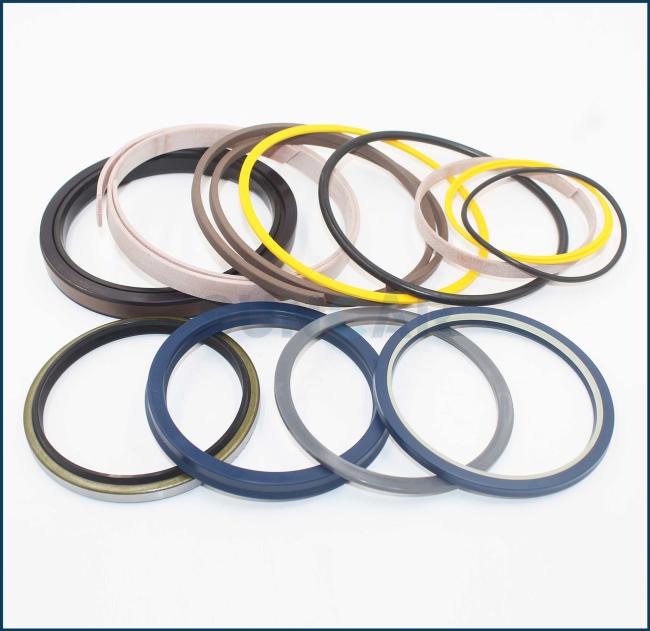

31Y1-15705 31Y115705 Seal Kit Bucket Cylinder For Hyundai 7-SERIES EXCAVATOR
| Iteam name | 31Y1-15705 31Y115705 Seal Kit Bucket Cylinder |
| Brand | SUNCAR |
| Fits brand | HYUNDAI |
| Part number | 31Y1-15705 31Y115705 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | CRAWLER EXCAVATOR HYUNDAI |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Terms of payment |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | seal kit |
|
Standard or nonstandard |
Standard |
Compatible models:
| 7 SERIES WHEEL EXCAVATOR | R200W7 R200W7A |
| 7-SERIES CRAWLER EXCAVATOR | R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R290LC7A R305LC7 R450LC7 R450LC7A RC215C7 RC215C7H RD210-7 RD220-7 |
Relative Parts:
| 31Y1-20910 | 31EM-00545 | XKCC-00283 |
| 31Y1-18490 | 31Y1-06731 | 31Y1-26410 |
| 31Y1-18480 | 31Y1-30111 | 31Y1-33870 |
| 31Y1-18110 | 31Y1-29930 | 31Y1-33710 |
| 31Y1-18210 | 31Y1-30290 | 31Y1-34010 |
| 31Y1-20430 | XKCC-01329 | 31Y1-28960 |
| 31Y1-31150 | 31Y2-03751 | 31Y1-34600 |
| 31Y1-31490 | 31Y2-08080 | 31Y1-36851 |
| 31Y1-34790 | XKCC-01422 | 31Y1-35840 |
| 31Y1-35030 | 31Y2-11800 | 31Y1-03710 |
| 31Y1-26580 | XKCC-00140 | XKCC-00397 |
| 31Y1-15880 | 31Y2-05920 | XKCC-00528 |
| 31Y1-15230 | 31Y2-11980 | XKCC-00436 |
| 31Y1-15700 | XKCC-00225 | 31Y1-35590 |
| 31Y1-28790 | 31Y2-11050 | 31Y1-26760 |
| 31Y1-14670 | 31Y2-11240 | 31Y1-35710 |
| 31Y1-16431 | XKCC-00678 | 31Y1-15045 |
| 31Y1-16280 | 31Y2-02690 | 31Y1-15546 |
| 31Y1-24501 | 31Y2-02490 | ZGAQ-02371 |
| 31Y1-24310 | 31Y2-02590 | 31Y1-36850 |

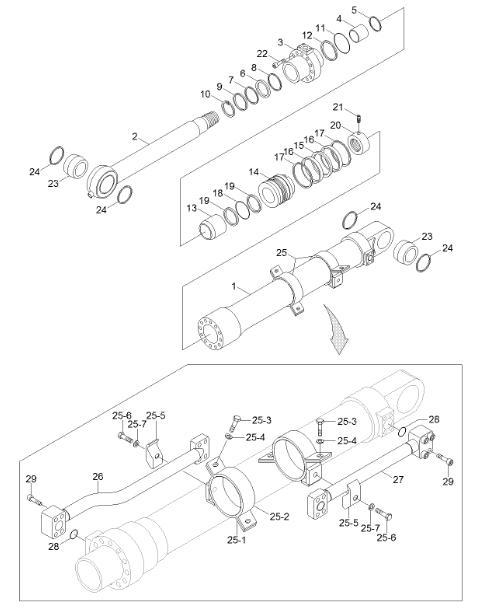

Parts on group:
| Pos. | Part No | Qty | Parts name |
| *. | 31N6-60115 | [1] | BUCKET CYLINDER ASSY |
| *. | 31N6-60116 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-15555 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-15565 | [1] | TUBE ASSY |
| 2 | 31Y1-15615 | [1] | ROD ASSY |
| 2 | 31Y1-15616 | [1] | ROD ASSY |
| 3 | 31Y1-15645 | [1] | GLAND |
| 4 | S732-085030 | [1] | BUSHING-DD2 |
| 5 | Y191-092000 | [1] | RING-SNAP |
| K6. | Y220-085011 | [1] | SEAL-ROD |
| K7. | Y180-085020 | [1] | RING-BACK UP |
| K8. | Y240-085013 | [1] | RING-BUFFER |
| K9. | Y110-085011 | [1] | WIPER-DUST |
| 10 | Y190-099000 | [1] | RING-SNAP |
| K11. | S631-115004 | [1] | O-RING |
| K12. | 31YC-BP115 | [1] | RING-BACK UP |
| 13 | 31YC-26060 | [1] | RING-CUSHION |
| 14 | 31Y1-15655 | [1] | PISTON |
| 14 | 31Y1-15656 | [1] | PISTON |
| K15. | Y420-125000 | [1] | SEAL-PISTON |
| K16. | Y310-125000 | [2] | RING-WEAR |
| K17. | Y440-125000 | [2] | RING-DUST |
| K18. | S632-060004 | [1] | O-RING |
| K18. | S632-065004 | [1] | O-RING |
| K19. | S642-060003 | [2] | RING-BACK UP |
| K19. | S642-065003 | [2] | RING-BACKUP,O-RING |
| 20 | 31YC-64030 | [1] | NUT-LOCK |
| 20 | 31YC-64155 | [1] | NUT-LOCK |
| 21 | S114-080144 | [1] | SCREW-SET |
| 22 | S109-160804 | [12] | BOLT-SOCKET |
| 23 | 31YC-11240 | [2] | BUSHING-PIN |
| 24 | Y000-080200 | [4] | SEAL-DUST |
| 25 | 31Y1-15665 | [2] | BAND ASSY |
| 25-1. | 31Y1-15675 | [1] | BAND SUB ASSY |
| 25-2. | 31YC-31500 | [1] | BAND |
| 53-3. | S011-100352 | [2] | BOLT-HEX |
| 25-4. | S411-100002 | [2] | WASHER-SPRING |
| 25-5. | 31YC-36010 | [1] | CLAMP-PIPE |
| 25-6. | S015-120502 | [1] | BOLT-HEX |
| 25-7. | S411-120002 | [1] | WASHER-SPRING |
| 26 | 31Y1-15685 | [1] | PIPE ASSY-R |
| 27 | 31Y1-15695 | [1] | PIPE ASSY-B |
| K28. | Y171-019004 | [2] | O-RING |
| 29 | S107-100454 | [8] | BOLT-HEX |
| K. | 31Y1-15705 | [1] | SEAL KIT |
| K. | 31Y1-15706 | [1] | SEAL KIT |
