31Y1-15236 31Y115236 Seal Kit Arm Cylinder For Hyundai 7-SERIES EXCAVATOR R200W7A R210LC7 R210LC7A R210LC7H R210NLC

Name: 31Y1-15236 31Y115236 Seal Kit Arm Cylinder For Hyundai 7-SERIES EXCAVATOR R200W7A R210LC7 R210LC7A R210LC7H R210NLC
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Trial order accepted

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

31Y1-15236 31Y115236 Seal Kit Arm Cylinder For Hyundai 7-SERIES EXCAVATOR

Iteam name	31Y1-15236 31Y115236 Seal Kit Arm Cylinder
Brand	SUNCAR
Fits brand	HYUNDAI
Part number	31Y1-15236 31Y115236
Market	North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Feature	Higher-toughness/Wear resistance/High&low temperature resistence
Function	Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Supply ability	550 sets per week
Transport mode	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
AppliC-A-Ted equipment	EXCAVATOR HYUNDAI
Original place	Guangdong province,China
Loading port	Huangpu port,China
Avaliability	In stock
CertifiC-A-Tion	ISO9001
Terms of payment	Western Union,T/T, Paypal,Bank transfer,Alipay
Delivery details	3-7 days after payment received(Public Holiday Excluded)
MOQ	Accept trial order
Type	seal kit
Standard or nonstandard	Standard

Compatible models:

7 SERIES WHEEL EXCAVATOR	R200W7A
7-SERIES CRAWLER EXCAVATOR	R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD220-7

Relative Parts:

XKCD-01026	31Y2-07770	31Y1-14050
31Y1-35030	31Y2-11800	31Y1-03710
31Y1-28790	31Y2-11050	31Y1-26760
31Y1-26580	XKCC-00140	XKCC-00397
31Y1-25260	31Y2-07660	31Y1-35451
31Y1-24501	31Y2-02490	ZGAQ-02371
31Y1-24370	31Y2-07860	XKCC-00589
31Y1-24350	31Y2-02600	XKCC-00097
31Y1-24310	31Y2-02590	31Y1-36850
31Y1-16431	XKCC-00678	31Y1-15045
31Y1-16280	31Y2-02690	31Y1-15546
31Y1-15880	31Y2-05920	XKCC-00528
31Y1-15700	XKCC-00225	31Y1-35590
31Y1-15230	31Y2-11980	XKCC-00436
31Y1-14670	31Y2-11240	31Y1-35710
31Y1-01049	31Y2-03030	31Y1-15047
31Y1-00999	31Y2-10230	31Y1-24090

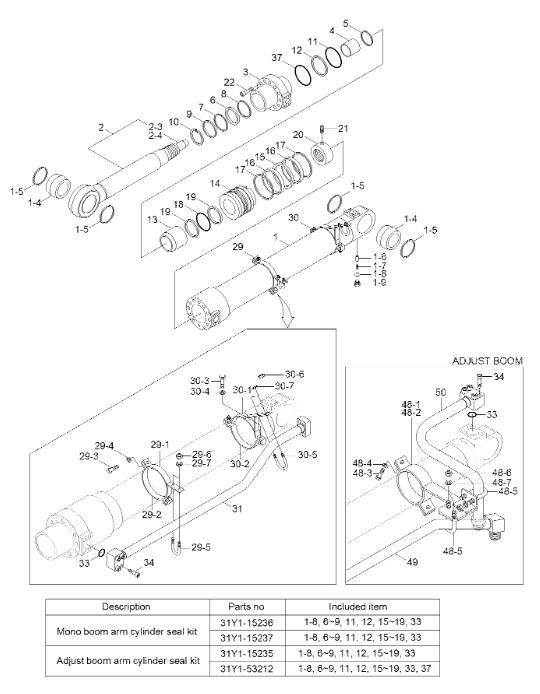

Parts on group:

Pos.	Part No	Qty	Parts name
*.	31N6-50137	[1]	ARM CYLINDER ASSY
*.	31N6-50138	[1]	ARM CYLINDER ASSY
*.	31N6-50139	[1]	ARM CYLINDER ASSY
*.	31N6-53215	[1]	ARM CYLINDER ASSY
*.	31N6-53216	[1]	ARM CYLINDER ASSY
*-1.	31Y1-15065	[1]	ARM CYL SUB ASSY
*-1.	31Y1-15067	[1]	ARM CYL SUB ASSY
*-1.	31Y1-44620	[1]	ARM CYL SUB ASSY
1	31Y1-15075	[1]	TUBE ASSY
1	31Y1-15076	[1]	TUBE ASSY
1	31Y1-15077	[1]	TUBE ASSY
1-4.	31YC-11141	[2]	BUSHING-PIN
1-5.	Y000-080200	[4]	SEAL-DUST
1-6.	31YC-2A070	[1]	VALVE-CHECK
1-7.	31YC-99071	[1]	SPRING-COIL
K1-8.	S631-014004	[1]	O-RING
1-9.	P220-110103	[1]	PLUG-HEX
2	31Y1-15125	[1]	ROD ASSY
2	31Y1-15126	[1]	ROD ASSY
N2-3.	@	[1]	SPEAR-CUSHION
N2-4.	@	[1]	RING-STOP
3	31Y1-21955	[1]	GLAND
3	31Y1-21956	[1]	GLAND
3	31Y1-28741	[1]	GLAND
4	S732-100040	[1]	BUSHING-DD2
5	Y191-107000	[1]	RING-SNAP
K6.	Y220-100011	[1]	SEAL-ROD,IUH
K6.	Y220-100013	[1]	SEAL-ROD
K7.	Y180-100020	[1]	RING-BACK UP
K8.	Y240-100013	[1]	RING-BUFFER
K8.	Y240-100012	[1]	RING-BUFFER
K9.	Y110-100011	[1]	WIPER-DUST
10	Y190-114000	[1]	RING-SNAP
K11.	S631-130004	[1]	O-RING
K12.	31YC-BP130	[1]	RING-BACK UP
K12.	31YC-CP130	[1]	RING-BACK UP
13	31YC-26010	[1]	RING-CUSHION
13	31YC-26011	[1]	RING-CUSHION
13	31YC-28030	[1]	RING-CUSHION
14	31Y1-15165	[1]	PISTON
14	31Y1-15166	[1]	PISTON
14	31Y1-28771	[1]	PISTON
K15.	Y420-140000	[1]	SEAL-PISTON
K15.	Y420-140002	[1]	SEAL-PISTON
K16.	Y310-140000	[2]	RING-WEAR
K16.	Y310-140103	[2]	RING-WEAR
K17.	Y440-140000	[2]	RING-DUST
K18.	S632-075004	[1]	O-RING
K19.	S642-075003	[2]	RING-BACK UP
20	31YC-64060	[1]	NUT-LOCK
20	31YC-68050	[1]	NUT-LOCK
21	S114-100164	[1]	SCREW-SET
22	S109-180904	[12]	BOLT-SOCKET
22	S109-180854	[14]	BOLT-SOCKET
29	31Y1-15175	[1]	BAND ASSY-R
29	31Y1-29170	[1]	BAND ASSY-R
29-1.	31Y1-15185	[1]	BAND SUB ASSY
29-2.	31YC-18635	[1]	BAND SUB ASSY
29-3.	S015-120452	[2]	BOLT-HEX
29-4.	S411-120002	[2]	WASHER-SPRING
29-5.	S071-023430	[1]	U-BOLT
29-6.	S201-101002	[2]	NUT-HEX
29-7.	S411-100002	[2]	WASHER-SPRINIG
30	31Y1-15196	[1]	BAND ASSY-B
30	31Y1-29200	[1]	BAND ASSY-B
30-1.	31Y1-15205	[1]	BAND SUB ASSY
30-2.	31Y1-18645	[1]	BAND SUB ASSY
30-3.	S015-120452	[4]	BOLT-HEX
30-4.	S411-120002	[4]	WASHER-SPRING
30-5.	S071-023430	[2]	U-BOLT
30-6.	S201-101002	[4]	NUT-HEX
30-7.	S411-100002	[4]	WASHER-SPRINIG
48	31Y1-20675	[1]	BAND ASSY-B
48-1.	31Y1-20685	[1]	BAND SUB ASSY
48-2.	31YC-32090	[1]	BAND
48-3.	S015-120452	[4]	BOLT-HEX
48-4.	S411-120002	[4]	WASHER-SPRING
48-5.	S071-023430	[2]	U-BOLT
48-6.	S201-101002	[4]	NUT-HEX
48-7.	S411-100002	[4]	WASHER-SPRINIG
31	31Y1-15216	[1]	PIPE ASSY-R
31	31Y1-15217	[1]	PIPE ASSY-R
48	31Y1-21345	[1]	PIPE ASSY-R
50	31Y1-20695	[1]	PIPE ASSY-B
K33.	Y171-024004	[2]	O-RING
34	S107-120554	[8]	BOLT-SOCKET
K37.	S632-140004	[1]	O-RING
K.	31Y1-15236	[1]	SEAL KIT
K.	31Y1-15237	[1]	SEAL KIT
K.	31Y1-15235	[1]	SEAL KIT
K.	31Y1-35212	[1]	SEAL KIT
N.	@	[AR]	NOT SUPPLIED PARTS
