31Y1-33420 31Y133420 Seal Kit Boom Cylinder For Hyundai 9/F-SERIES CRAWLER EXCAVATOR R320LC9 R330LC9A/LC9S/LC9SH HX330L
Price:
Negotiable
MOQ:
Trial order accepted
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

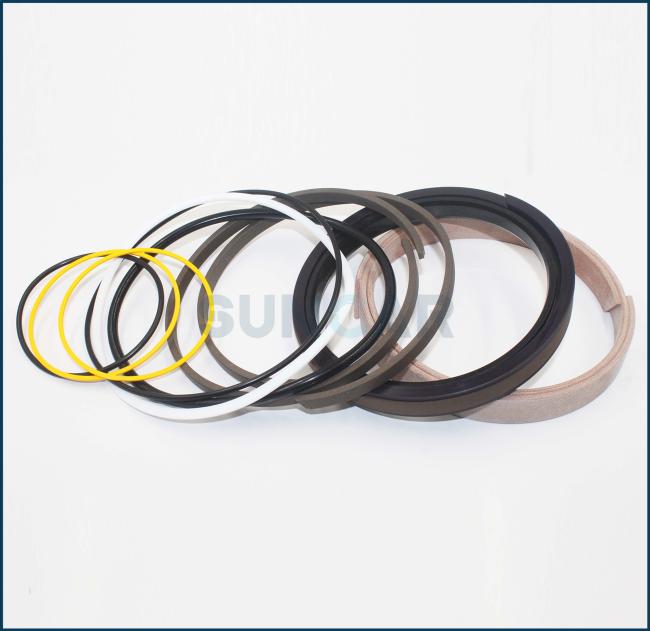

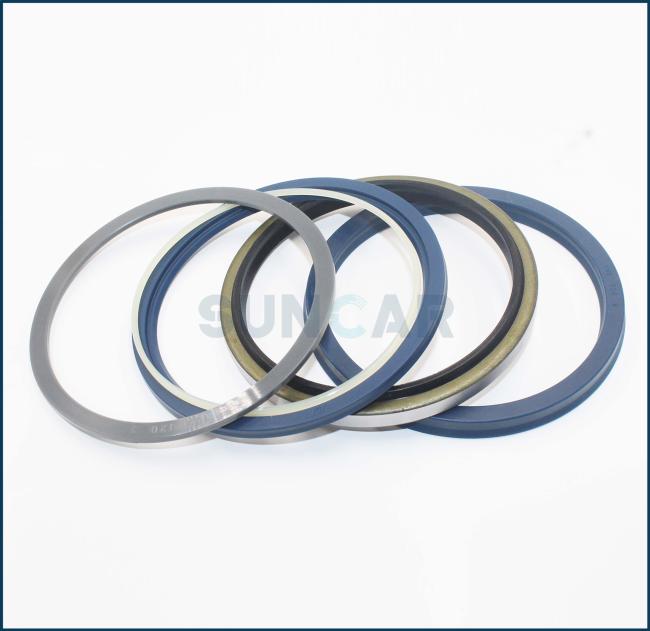

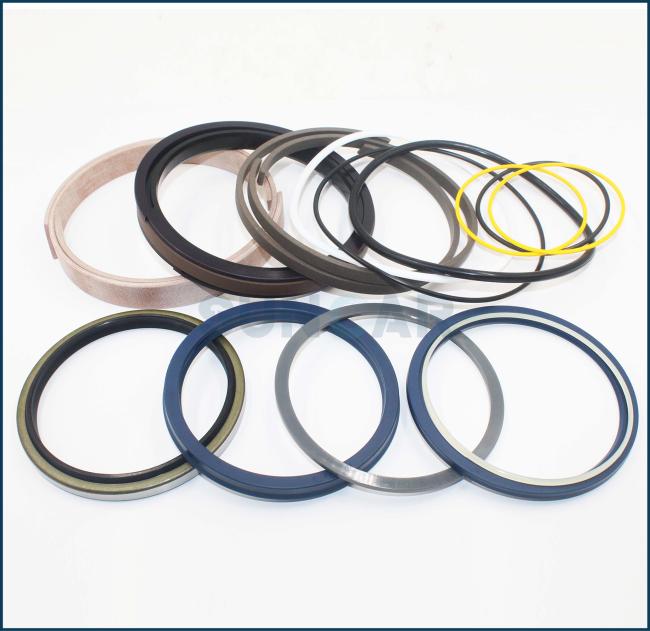

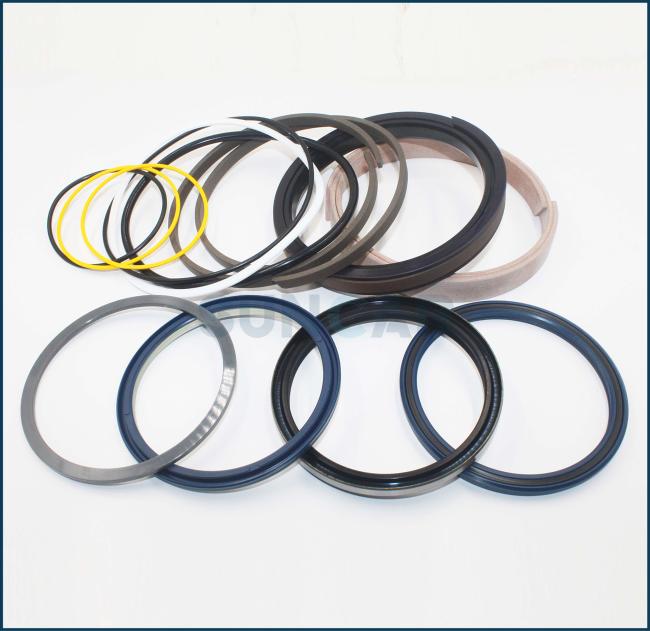

31Y1-33420 31Y133420 Seal Kit Boom Cylinder For Hyundai 9/F-SERIES CRAWLER EXCAVATOR R320LC9 HX330L R330LC9A/LC9S/LC9SH
| Iteam name | 31Y1-33420 31Y133420 Seal Kit Boom Cylinder |
| Brand | SUNCAR |
| Fits brand | HYUNDAI |
| Part number | 31Y1-33420 31Y133420 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | CRAWLER EXCAVATOR HYUNDAI |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Terms of payment |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Oil seal |
|
Standard or nonstandard |
Standard |
| compatible models |
Hyundai 9-SERIES CRAWLER EXCAVATOR R320LC9 R330LC9A/LC9S/LC9SH 9-SERIES CRAWLER EXCAVATOR HX330L |
Relative Parts:
| 31Y1-05612 | 91L3-2713 | 31Y-31320 |
| 31Y1-09990 | 31Y2-00900 | 31Y1-38470 |
| 31Y1-10160 | 31Y2-00630 | 31Y1-24420 |
| 31Y1-18250 | 31Y2-00750 | 31Y1-24440 |
| 31Y1-09860 | 000986 | 31Y1-23860 |
| 31Y1-32670 | 000984 | 31Y1-17660 |
| 31Y1-32450 | 000985 | 31Y1-24790 |
| 31Y1-32910 | 31Y2-01860 | 31Y1-01890 |
| 31Y1-15395 | 000987 | 31Y1-19550 |
| 31Y1-15390 | 000988 | 31Y1-38670 |
| 31Y1-15540 | 31Y2-05310 | 31Y1-29101 |
| 31Y1-15040 | 31Y2-04930 | 31Y1-18061 |
| 31Y1-21100 | 31Y2-05070 | 31Y1-04192 |
| 31Y1-19080 | 31Y2-04281 | 31Y1-16010 |
| 31Y1-19090 | 31Y2-06520 | 31Y1-04362 |
| 31Y1-33420 | XKCC-00551 | 31Y1-04461 |

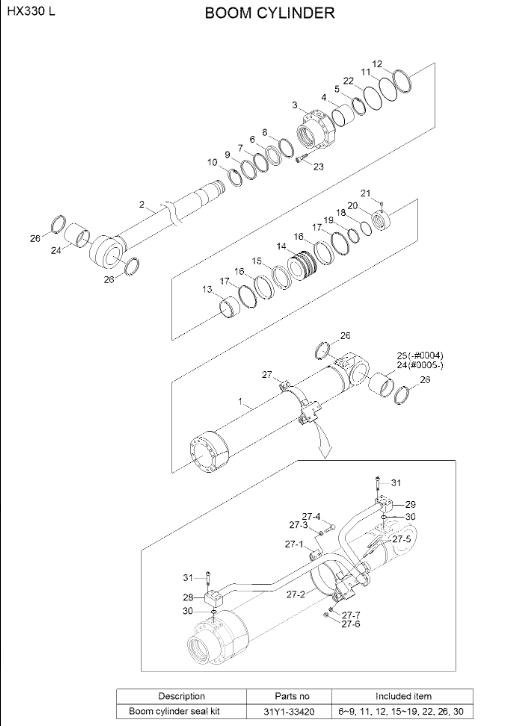

Parts on group:
| Pos. | Part No | Qty | Parts name |
| *. | 31K9-50110 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31Q9-50110GG | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31K9-50120 | [1] | BOOM CYLINDER ASSY-RH |
| *. | 31Q9-50120GG | [1] | BOOM CYLINDER ASSY-RH |
| *-1. | 31Y1-33170 | [1] | BOOM CYLINDER SUB |
| 1 | 31Y1-33180 | [1] | TUBE ASSY |
| 2 | 31Y1-33240 | [1] | ROD ASSY |
| 3 | 31Y1-33270 | [1] | GLAND |
| 4 | S732-105040 | [1] | BUSHING-DD2 |
| 5 | Y191-112000 | [1] | RING-SNAP |
| K6. | Y220-105013 | [1] | SEAL-ROD |
| K7. | Y180-105120 | [1] | RING-BACK UP |
| K8. | Y240-105012 | [1] | RING-BUFFER |
| K9. | Y110-105011 | [1] | WIPER-DUST |
| 10 | Y190-121000 | [1] | RING-SNAP |
| K11. | S631-140004 | [1] | O-RING |
| K12. | 31YC-BP140 | [1] | RING-BACK UP |
| 13 | 31YC-26090 | [1] | RING-CUSHION |
| 14 | 31Y1-33310 | [1] | PISTON |
| K15. | Y420-150000 | [1] | SEAL-PISTON |
| K16. | Y310-150003 | [2] | RING-WEAR |
| K17. | Y440-150202 | [2] | RING-DUST |
| K18. | S632-080004 | [1] | O-RING |
| K19. | S642-080003 | [2] | RING-BACK UP |
| 20 | 31YC-68090 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-145004 | [1] | O-RING |
| 23 | S109-200904 | [12] | BOLT-SOCKET |
| 24 | 61KH-73410 | [2] | BUSHING-PIN |
| 25 | 61QH-96410 | [1] | BUSHING |
| 26 | Y020-100100 | [4] | SEAL-DUST,DLI,KPU |
| 27 | 31Y1-33330 | [1] | BAND ASSY-LH |
| 27 | 31Y1-33341 | [1] | BAND ASSY-RH |
| 27-1. | 31Y1-33350 | [1] | BAND SUB ASSY-LH |
| 27-1. | 31Y1-33360 | [1] | BAND SUB ASSY-RH |
| 27-2. | 31Y1-33370 | [1] | BAND SUB ASSY |
| 27-3. | S411-120002 | [4] | WASHER-SPRING |
| 27-4. | S015-120452 | [4] | BOLT-HEX |
| 27-5. | S070-053442 | [2] | U-BOLT |
| 27-6. | S205-101002 | [4] | NUT-HEX |
| 27-7. | S411-100002 | [4] | WASHER-SPRINIG |
| 28 | 31Y1-33380 | [1] | PIPE ASSY-R,LH |
| 28 | 31Y1-33391 | [1] | PIPE ASSY-R,RH |
| 29 | 31Y1-33400 | [1] | PIPE ASSY-B,LH |
| 29 | 31Y1-33411 | [1] | PIPE ASSY-B,RH |
| K30. | Y171-024004 | [2] | O-RING |
| 31 | S107-120556 | [8] | BOLT-SOCKET |
| K. | 31Y1-33420 | [1] | SEAL KIT |
