USI Piston And Piston Rod Seal
Price:
Negotiable
MOQ:
100 pcs
Delivery Time:
3-7 days after payment received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

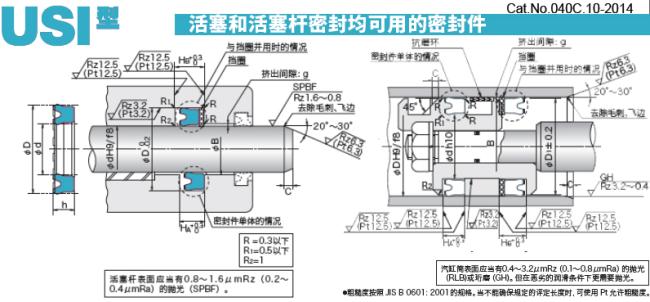

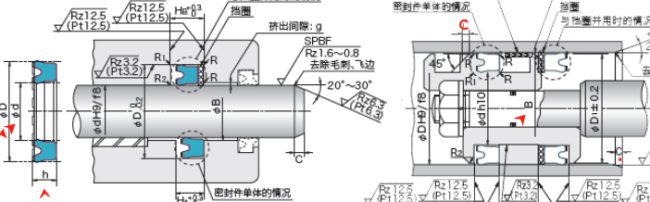

USI Piston And Piston Rod Seal
Description: USI can be used for both piston and rod seals. This packing has small section and ca be fitted in integrated groove.
Improvement has been made to prevent damages caused by back pressure.
| d | D | h | HA | HB | φD1 | C |
| 10 | 18 | 5 | 5.7 | 7.7 | 2 | 17 |
| 12 | 20 | 5 | 19 | |||
| 12.5 | 20 | 5 | 19 | |||
| 14 | 22 | 5 | 21 | |||
| 16 | 24 | 5 | 23 | |||
| 17 | 25 | 5 | 24 | |||
| 18 | 26 | 5 | 25 | |||
| 20 | 28 | 5 | 27 | |||
| 30 | 6 | 7 | 9 | 29 | ||
| 22 | 30 | 5 | 5.7 | 7.7 | 29 | |
| 22.4 | 30 | 5 | 29 | |||
| 23.5 | 31.5 | 5 | 30.5 | |||
| 24 | 32 | 5 | 31 | |||
| 25 | 33 | 5 | 32 | 2.5 | ||
| 35 | 6 | 7 | 9 | 34 | ||
| 26 | 34 | 5 | 5.7 | 8.7 | 33 | |
| 27 | 35 | 5 | 34 | |||
| 28 | 35.5 | 5 | 34.5 | |||
| 36 | 5 | 35 | ||||
| 30 | 38 | 5 | 37 | |||
| 40 | 6 | 7 | 10 | 39 | ||
| 31.5 | 41.5 | 6 | 40.5 | |||
| 32 | 42 | 6 | 41 | |||
| 33 | 43 | 6 | 42 | |||
| 34 | 44 | 6 | 43 | |||
| 35 | 45 | 6 | 44 | |||
| 35.5 | 45 | 6 | 44 | |||
| 45.5 | 6 | 44.5 | ||||
| 36 | 46 | 6 | 45 | |||
| 38 | 48 | 6 | 47 | |||
| 40 | 50 | 6 | 49 | |||
| 45 | 55 | 6 | 54 | |||
| 56 | 7 | 8 | 11 | 55 | ||
| 46 | 56 | 6 | 7 | 10 | 55 | |
| 50 | 60 | 6 | 59 | |||
| 53 | 63 | 6 | 62 | |||
| 55 | 65 | 6 | 64 | |||
| 56 | 66 | 6 | 65 | |||
| 58 | 68 | 6 | 67 | |||
| 60 | 70 | 6 | 69 | |||
| 71 | 7 | 8 | 11 | 70 | ||
| 61 | 71 | 6 | 7 | 10 | 70 | |
| 63 | 73 | 6 | 72 | |||
| 65 | 75 | 6 | 74 | |||
| 67 | 77 | 6 | 76 | |||
| 70 | 80 | 6 | 79 | |||
| 71 | 80 | 6 | 79 | |||
| 75 | 85 | 6 | 84 | |||
| 80 | 90 | 6 | 89 | |||
| 95 | 9 | 10 | 13 | 94 | 4 | |
| 85 | 95 | 6 | 7 | 10 | 94 | |
| 100 | 9 | 10 | 13 | 99 | ||
| 86 | 100 | 8.5 | 9.5 | 12.5 | 99 | |
| 89 | 104 | 9 | 10 | 13 | 103 | |
| 90 | 100 | 6 | 7 | 10 | 99 | |
| 105 | 9 | 10 | 13 | 104 | ||
| 95 | 110 | 9 | 109 | |||
| 96 | 111 | 9 | 110 | |||
| 98 | 112 | 8.5 | 9.5 | 12.5 | 111 | |
| 100 | 115 | 9 | 10 | 13 | 113 | |
| 105 | 120 | 9 | 118 | |||
| 106 | 120 | 8.5 | 9.5 | 12.5 | 118 | |
| 110 | 125 | 9 | 10 | 13 | 123 | |
| 112 | 125 | 9 | 123 | |||
| 115 | 130 | 9 | 128 | |||
| 118 | 132 | 8.5 | 9.5 | 12.5 | 130 | |
| 125 | 140 | 9 | 10 | 13 | 138 | |
| 132 | 145 | 8.5 | 9.5 | 12.5 | 143 | |
| 136 | 150 | 8.5 | 148 | |||
| 145 | 160 | 9 | 10 | 13 | 158 |
OEM Number For Your Reference:
| FU0064S0 | GN5418V0 | FU2469S0 | GN5728V0 |
| FU2464S0 | GN5723V0 | FU2470S0 | GN5707V0 |
| FU2465S0 | GN5724V0 | FU0320S0 | GN4791V0 |
| FU0116S0 | GN5719V0 | FU0321S0 | GN5715V0 |
| FU0150S0 | GN5720V0 | FU0355S0 | GN5729V0 |
| FU2466S0 | GN5725V0 | FU0357S0 | GN4794V0 |
| FU0180S0 | GN4778V0 | FU0382S0 | GN4796V0 |
| FU0212S0 | GN4780V0 | FU2055S0 | GN5730V0 |
| FU0214S0 | GN4781V0 | FU2471S0 | GN5731V0 |
| FU2467S0 | GN5726V0 | FU2263S0 | GN5732V0 |
| FU0260S0 | GN4784V0 | FU0424S0 | GN4799V0 |
| FU0267S0 | GN4786V0 | FU0451S0 | GN4801V0 |
| FU2468S0 | GN5727V0 | FU0452S0 | GN5716V0 |
| FU0276S0 | GN5019V1 | FU2472S0 | GN5733V0 |
| FU0279S0 | GN4787V0 | FU2240S0 | GN5365V0 |
| FU0567S0 | GN4804V0 | FU0497S0 | GN4050V0 |
| FU0572S0 | GN4805V0 | FU0939S0 | GN4820V0 |
| FU2662S0 | GN5709V0 | FU0942S0 | GN5023V0 |
| FU0619S0 | GN4335V0 | FU2475S0 | GN4757V0 |
| FU0679S0 | GN4693V0 | FU0984S0 | GN4687V0 |
| FU0694S0 | GN4810V0 | FU2476S0 | GN4982V1 |
| FU0722S0 | GN4766V0 | FU2372S0 | GN5734V0 |
| FU2473S0 | GN5641V0 | FU1021S0 | GN5735V0 |
| FU0746S0 | GN4676V0 | FU1024S0 | GN4698V0 |
| FU0750S0 | GN4812V0 | FU1051S0 | GN4822V0 |
| FU2474S0 | GN4629V0 | FU2477S0 | GN5736V0 |
| FU0786S0 | GN4814V0 | FU1067S0 | GN4824V0 |
| FU0809S0 | GN4816V0 | FU1082S0 | GN4512V0 |
| FU0828S0 | GN4697V0 | FU1125S0 | GN5198V0 |
| FU0849S0 | GN4651V0 | FU1135S0 | GN4826V0 |
| FU0879S0 | GN4818V0 | FU1157S0 | GN4480V0 |
| FU0901S0 | GN4692V0 | FU1179S0 | GN4827V0 |
| FU1195S0 | GN4593V0 | FU1291S0 | GN5737V0 |
| FU1204S0 | GN5414V0 | FU1306S0 | GN4830V0 |
| FU1252S0 | GN4481V0 | FU1343S0 | GN4551V0 |
