2438U587R100 Seal Repair Kit For Piston Rod Fits KOBELCO K909-A

Name: 2438U587R100 Seal Repair Kit For Piston Rod Fits KOBELCO K909-A
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: 10 Sets

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

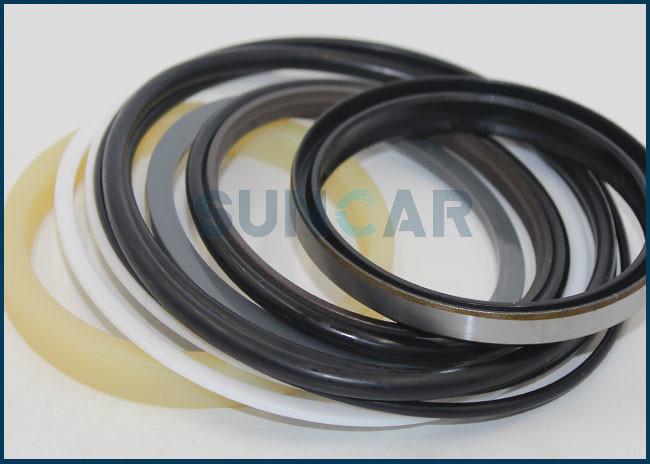

2438U587R100 Seal Repair Kit For Piston Rod Fits KOBELCO K909-A

Description: This seal kit is used in piston rod,adopt to good quality IDI+HBTS.

Product name	2438U587R100 Seal Repair Kit For Piston Rod Fits KOBELCO K909-A
Brand	SUNCAR
Part number	2438U587R100
Compatible model	KOBELCO K909-A
AppliC-A-Tion	Consruction machinery works;Piston rod;Cylinder;Kobelco
Transport	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
Original place	Guangdong provice,China
Loading port	Huangpu port,China
Avaliability	In stock
CertifiC-A-Tion	ISO9001
Trems of payment	Western Union, T/T, Money Gram,Paypal
Delivery time	3-7 days after payment received(Public Holiday Excluded)
MOQ	10 sets
Make up	IDI,oil seal;back-up ring;dust seal

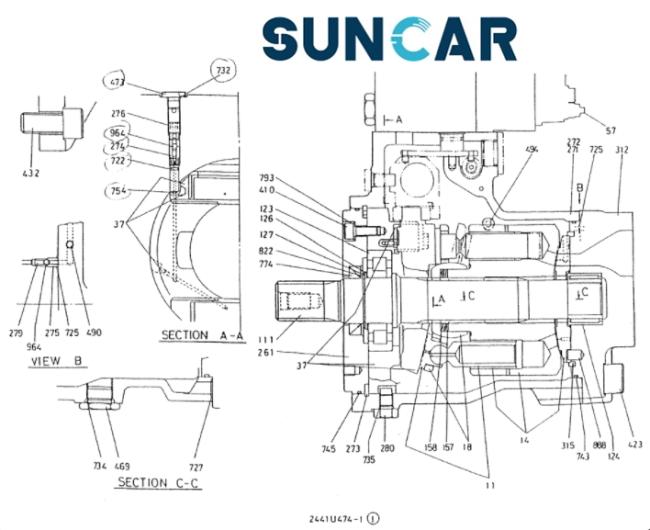

Parts on group (K909A):

Pos.	Part No	Qty	Parts name
. .	2441U474F1	[1]	PUMP, HYDR ASSY, CONSISTS OF THE FOLLOWING PARTS
. .	2441U474F2	[1]	PUMP, HYDR ASSY, CONSISTS OF THE FOLLOWING PARTS
. .	2441U474F3	[1]	PUMP, HYDR ASSY, CONSISTS OF THE FOLLOWING PARTS
. .	2441U474F4	[1]	HYDRAULIC PUMP
11	2441U474S11	[9]	PISTON
14	2441U474S14	[1]	CYLINDER
18	2441U474S18	[1]	PLATE
37	2441U474S37	[1]	REPAIR KIT
57	2436U971F1	[1]	CONTROL VALVE
83	2441U474S83	[1]	SLEEVE ASSY
84	2441U474S84	[1]	GUIDE, SPRING
111	2441U474S111	[1]	SHAFT
123	2441U474S123	[1]	BEARING
124	2441U474S124	[1]	NEEDLE BEARING
126	2441U474S126	[1]	SHIM
127	2441U474S127	[1]	SPACER
157	2441U474S157	[4]	SPRING
158	2441U474S158	[1]	SHIM
261	2441U474S261	[1]	COVER, FRONT
271	2441U474S271	[1]	BELT CASING, F1 - F3 ONLY
272	2441U474S272	[1]	CASING, F4 ONLY
273	2441U474S273	[1]	RETAINER
274	2441U474S274	[1]	RIGID TUBE
275	2441U474S275	[1]	SHEAT SEAT, F1 ONLY
276	2441U474S276	[1]	STOP
279	2441U474S279	[1]	STOPPER, F1 ONLY
280	2441U474S280	[1]	SCREW
312	2441U474S312	[1]	COVER, VALVE
315	2441U474S315	[1]	RING, GUIDE
402	ZS23C06050	[4]	CAPSCREW,Hex Socket Head, M6 x 50mm
406	ZS23C06030	[2]	SCREW,Hex Socket Head, M6 x 30mm
410	ZS23C10025	[4]	SCREW,Hex Socket Head, M10 x 25mm
423	ZS23C20050	[4]	SCREW,Hex Socket Head, M20 x 50mm
432	ZS23C20045	[4]	CAP,Hex Socket Head, M20 x 45mm
444	ZS23C12035	[10]	SCREW,Hex Socket Head, M12 x 35mm
469	2441U413S474	[1]	PLUG
473	2436U749S253	[2]	PLUG
474	2453U193S474	[1]	PLUG
486	2441U474S486	[1]	PLUG
490	2441U474S490	[16]	PLUG
494	2436U483S251	[1]	PLUG
531	2441U474S531	[1]	LEVER
532	2441U474S532	[1]	PISTON
534	2441U474S534	[1]	STOPPER
535	2441U474S535	[1]	STOPPER
543	2441U474S543	[1]	RING
544	2441U474S544	[1]	BOLT
545	2441U474S545	[1]	PIN
551	2441U474S551	[1]	COVER, F1 ONLY
552	2441U474S552	[1]	COVER, F2 - F4 ONLY
572	2441U474S572	[1]	COVER
615	2441U474S615	[1]	LEVER
617	2441U436S617	[1]	PIN
620	2441U436S620	[1]	PIN
671	2441U474S671	[1]	CNH, PISTON
672	2441U436S672	[1]	COVER
673	2441U474S673	[1]	SPRING, F2 & F3 ONLY
674	2441U474S674	[1]	SPRING, F2 & F4 ONLY
675	2441U474S675	[1]	PISTON
676	2441U474S676	[1]	SPRING F1 - F3 ONLY
677	2441U474S677	[1]	RING
678	2441U474S678	[1]	SPRING F1 & F3 ONLY
686	2441U474S686	[1]	RING
690	2441U474S690	[1]	WASHER
691	2441U474S691	[1]	CNH, SPRING
702	ZD12G30000	[4]	O-RING,299.30mm ID x 310.70mm OD x 5.70mm
715	ZD12G04000	[1]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm
722	ZD12P06000	[3]	O-RING
724	ZD12P08000	[2]	O-RING
725	ZD12P10000	[2]	O-RING
727	ZD12P14000	[4]	O-RING
732	ZD12P01600	[2]	O-RING
733	ZD12P02000	[1]	O-RING,2.4mm Thk x 19.8mm ID, 90 Duro
734	ZD12P02400	[1]	O-RING
735	ZD12P01200	[2]	O-RING
743	2441U474S743	[1]	O-RING
745	2441U474S745	[1]	O-RING
754	ZD12P00300	[1]	O-RING
759	ZD12P02100	[1]	O-RING,2.4mm Thk x 20.8mm ID, 90 Duro
774	2441U474S774	[1]	OIL SEAL
793	2441U474S793	[4]	WASHER, SEALING
801	ZN11C08007	[2]	NUT
805	ZN12C20016	[2]	NUT
822	ZR16X04500	[1]	RING
888	2441U474S888	[1]	PIN
924	2441U436S924	[1]	SCREW
926	2441U436S926	[1]	SET OF SCREWS
950	2441U474S930	[2]	SCREW
964	2441U474S964	[2]	BALL
