150-27-00410 1502700410 Floating Seal Komatsu Machinery Parts
150-27-00410 1502700410 Floating Seal Komatsu Machinery Parts
The mechanical face seal rings are manufactured from a close grained cast iron material to offer the very best combination of wear and corrosion resistance. The excellent tribological characteristics of this material allow mechanical face seals from FTL Technology to be used in appliC-A-Tions with a rotary speed up to 10m/s. Under extreme service conditions, the metallurgical qualities of our cast iron material provide outstanding resistance against seizure and scoring.
The seal rings are statically sealed and have their face load generated by two toric O ring seals. These are critical elements to ensure maximum performance of the overall seal system.
|
Product name |
150-27-00410 1502700410 Floating Seal Komatsu Machinery Parts |
|
Part name |
150-27-00410 1502700410 |
|
Feature |
Higher-toughness/Wear Resistance/High&Low Temperature resistence |
|
Paking details |
PP bag inside,carton box outside. |
| Model | Excavators PC200 PC200LL PC220 PC228 PC228US PC240 Komatsu |
|
Supply ability |
550 sets per week |
|
Transport |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Original place |
Guangdong provice,China |
|
Loading port |
Huangpu port,China |
|
Avaliability |
In stock |
|
CertifiC-A-Tion |
ISO9001 |
|
Payment ways |
Western Union, L/C, T/T, Money Gram,Paypal |
|
Delivery details |
3-7 days after payment received(Public Holiday Excluded) |
|
MOQ |
10 sets |
|
Type |
Floating seal |

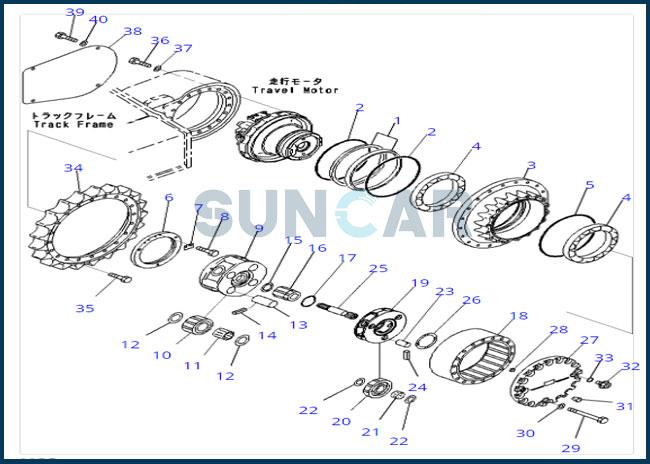

Relative Parts:
| 1 | 708-8F-00170 | MOTOR ASS'Y | 2 |
| 150-27-00410 | FLOATING SEAL ASS'Y | 2 | |
| 2 | 150-27-00264 | • SEAL RING ASS'Y | 1 |
| •• SEAL RING | 2 | ||
| 3 | 14S-27-00110 | • O-RING ASS'Y | 1 |
| •• O-RING | 2 | ||
| 4 | 20Y-27-31220 | HUB | 2 |
| 5 | 20Y-27-22230 | BEARING | 4 |
| 6 | 20Y-27-22280 | O-RING | 2 |
| 7 | 20Y-27-22261 | LOCK | 2 |
| 8 | 20Y-27-22270 | LOCK | 2 |
| 9 | 01010-81020 | BOLT | 4 |
| 10 | 20Y-27-22170 | CARRIER | 2 |
| 11 | 20Y-27-22140 | GEAR | 8 |
| 12 | 20Y-27-22220 | BEARING | 8 |
| 13 | 20Y-27-21250 | WASHER | 16 |
| 14 | 20Y-27-21230 | PIN | 8 |
| 15 | 20Y-27-21290 | PIN | 8 |
| 16 | 20Y-27-13310 | WASHER | 2 |
| 17 | 20Y-27-22130 | GEAR | 2 |
| 18 | 20Y-27-22240 | WASHER | 2 |
| 19 | 20Y-27-22150 | GEAR | 2 |
| 20 | 20Y-27-22160 | CARRIER | 2 |
| 21 | 20Y-27-22120 | GEAR | 6 |
| 22 | 20Y-27-22210 | BEARING | 6 |
| 23 | 20Y-27-21240 | WASHER | 12 |
| 24 | 20Y-27-21220 | PIN | 6 |
| 25 | 20Y-27-21280 | PIN | 6 |
| 26 | 20Y-27-31210 | SHAFT | 2 |
| 27 | 20Y-27-21310 | WASHER | 2 |
| 28 | 20Y-27-31230 | COVER | 2 |
| 29 | 20Y-27-22250 | BUTTON | 2 |
| 30 | 20Y-27-13281 | BOLT | 36 |
| 31 | 01643-31645 | WASHER | 36 |
| 32 | 07049-01012 | PLUG | 4 |
| 33 | 07044-12412 | PLUG | 6 |
| 34 | 07002-12434 | O-RING | 6 |
| 35 | 20Y-27-11582 | SPROCKET | 2 |
| 36 | 20Y-27-11561 | BOLT | 40 |
| 37 | 01010-61660 | BOLT | 36 |
| 38 | 01643-31645 | WASHER | 36 |
| 39 | 20Y-30-21191 | COVER | 2 |
| 40 | 01010-81230 | BOLT | 8 |
| 41 | 01643-31232 | WASHER | 8 |
