2401-9167AKT 24019167AKT Travel Motor Seal Repair Kit DOOSAN Solar Parts
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
2401-9167AKT 24019167AKT Travel Motor Seal Repair Kit DOOSAN Solar Parts
Description:Seal Kit(Motor) 2401-9167AKT KOMATSU genuine,Hydraulic moter seal kit use in travel moter which pay an important role in cushioning when the excavator starts to walk and brake.
.
| Product Name | 2401-9167AKT 24019167AKT Travel Motor Seal Repair Kit DOOSAN Solar Parts |
| Brand | SUNCAR |
| MOQ | 10 sets |
| Part number | 2401-9167AKT 24019167AKT |
| Feuture | Toughness/Wear resistance/High&low temperature resistence |
| Payment | L/C, D/A, D/P, T/T, Western Union, ,Paypal |
| Model | SOLAR 400LC-V |
| Paking | PP bag inside,carton box outside. |
| Original place | Guangdong,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Availability |
In stock |
| Compatible equipment | Construction machinery parts |
| Loading port | Huangpu,China |
| Condition | 100% new |
| Compatible equipment make | DOOSAN Solor |

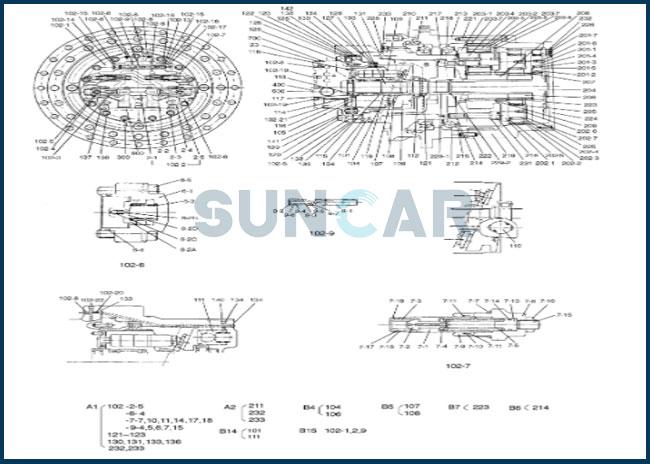

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| -. | 2401-9167A | [2] | MOTOR;TRAVEL |
| 100 | 20460-62304 | [1] | MOTOR;PISTON |
| 102-15. | 95113-01800 | [2] | O-RING 1BP-18 |
| 102-18. | 94341-06162 | [2] | WASHER |
| 121 | 20461-52101 | [1] | SEAL;OIL |
| 122 | 20461-65205 | [1] | O-RING |
| 123 | 20461-66701 | [1] | O-RING |
| 125 | 20461-69408 | [1] | PISTON;BRAKE |
| 127 | 20461-69504 | [4] | DISC |
| 128 | 20361-40845 | [4] | PIN |
| 129 | 20461-51302 | [8] | SPRING |
| 130 | 20461-66703 | [1] | O-RING |
| 131 | 20381-19807 | [1] | O-RING |
| 133 | 95113-01000 | [4] | O-RING |
| 134 | 15096-01010 | [6] | PLUG |
| 135 | 21961-40807 | [1] | ORIFICE |
| 136 | 95113-01800 | [2] | O-RING |
| 137 | 20461-52406 | [2] | PLUG |
| 142 | 91511-05050 | [1] | SCREW;DRIVE |
| 2-1. | 21961-50214 | [1] | PLUNGER |
| 2-2. | 21961-50306 | [2] | VALVE;CHECK |
| 2-3. | 21961-50403 | [2] | SPRING |
| 2-4. | 21961-50627 | [2] | PLUG |
| 2-5. | 95113-02100 | [2] | O-RING |
| 200 | 20940-65420 | [1] | BOX;GEAR |
| 201 | 20943-60143 | [1] | HOLDER A S/A |
| 201-1. | 20941-61063 | [1] | HOLDER A |
| 201-2. | 20941-61653 | [3] | GEAR;PLANETARY A |
| 201-3. | 20941-60427 | [3] | BEARING;NEEDLE |
| 201-4. | 20941-63912 | [3] | RACE;INNER |
| 201-5. | 20941-62223 | [3] | WASHER;THRUST |
| 201-7. | 20941-62382 | [1] | PLATE;THRUST |
| 202-2. | 20941-61720 | [4] | GEAR;PLANETARY B |
| 202-3. | 20941-60428 | [4] | BEARING;NEEDLE |
| 202-4. | 20941-63911 | [4] | RACE;INNER |
| 202-5. | 20941-62222 | [4] | WASHER;THRUST |
| 202-6. | 20941-63307 | [4] | SCREW |
| 202-7. | 20941-62380 | [1] | PLATE;THRUST |
| 203-3. | 20941-60429 | [4] | BEARING;NEEDLE |
| 203-4. | 20941-61925 | [4] | SHAFT;GEAR C |
| 203-7. | 20941-62224 | [8] | WASHER;THRUST |
| 204 | 20941-61365 | [1] | GEAR;DRIVE |
| 206 | 20941-61421 | [1] | GEAR;SUN B |
| 208 | 20941-61503 | [1] | GEAR;SUN C |
| 209 | 20941-63005 | [1] | RING;SNAP |
| 210 | 20941-60180 | [1] | FLANGE |
| 211 | 20366-99838 | [1] | SEAL;FLOATING |
| 212 | 20367-99011 | [2] | BEARING;ANGULAR |
| 213 | 20941-63542 | [1] | HOUSING |
| 214 | 20946-92625 | [1] | SHIM 1.0T |
| 214 | 20946-92626 | [1] | SHIM 0.5T |
| 214 | 20941-62724 | [1] | SHIM 0.3T |
| 214 | 20941-62725 | [1] | SHIM 0.1T |
| 214 | 20941-62726 | [1] | SHIM 0.05T |
| 215 | 20941-62609 | [4] | PIN |
| 216 | 92703-20110 | [4] | BOLT M20X110 |
| 217 | 92703-18500 | [16] | BOLT M18X50 |
| 218 | 20946-92631 | [4] | PLATE |
| 219 | 20941-64211 | [1] | GEAR;RING |
| 221 | 92703-14110 | [26] | BOLT M14X110 |
| 222 | 20941-62610 | [3] | PIN |
| 229 | 20943-60201 | [1] | COUPLING ASS'Y |
| 229-1. | 20941-60901 | [1] | COUPLING |
| 229-2. | 93711-60631 | [1] | PIN;SPRING |
| 23 | 95113-01100 | [1] | O-RING |
| 231 | 94101-20511 | [4] | WASHER;SPRING |
| 232 | 95113-02400 | [3] | O-RING |
| 233 | 95113-01400 | [4] | O-RING |
| 300 | 92703-14110 | [3] | BOLT M14X110 |
| 400 | 20631-33836 | [1] | PLATE;NAME |
| 6-1. | 21961-50718 | [1] | CAP |
| 6-2. | 21963-50701 | [1] | PISTON S/A |
| 6-2A. | 21961-51405 | [1] | PISTON |
| 6-2B. | 21961-41502 | [1] | GUIDE;SPRING |
| 6-2D. | 21961-40405 | [1] | SPRING |
| 6-3. | 21961-50422 | [1] | SPRING |
| 6-4. | 95123-04500 | [1] | O-RING |
| 7-10. | 95113-02100 | [1] | O-RING |
| 7-11. | 95713-02100 | [2] | RING;BACK-UP |
| 7-13. | 21961-41509 | [1] | GUIDE;SPRING |
| 7-14. | 95113-01250 | [1] | O-RING |
| 7-17. | 95113-01500 | [1] | O-RING |
| 7-18. | 95712-01500 | [2] | RING;BACK-UP |
| 7-6. | 21961-40636 | [1] | PLUG |
| 7-7. | 21001-00182 | [1] | O-RING |
| 9-1. | 20461-55804 | [1] | SPOOL A |
| 9-3. | 20461-59102 | [1] | FILTER |
| 9-4. | 95113-00600 | [1] | O-RING |
| 9-5. | 95113-00500 | [1] | O-RING |
| 9-6. | 95712-00600 | [1] | RING;BACK UP |
| 9-7. | 95712-00500 | [1] | RING;BACK UP |
| A1. | 2046A-65123 | [1] | SEAL KIT(MOTOR) |
| A1. | 2401-9167AKT | [1] | SEAL KIT(MOTOR) |
Related Parts Number:
| 1.180-00465 | 1.407-00006 |
| 1.18000465 | 1.40700006 |
| 2.180-01161 | 2.180-01229 |
| 2.18001161 | 2.18001229 |
| 2.180-01233 | 203-60-63101 |
| 2.18001233 | 2036063101 |
| 203-60-63102 | 203-60-63110 |
| 2036063102 | 2036063110 |
| 2046A-35174 | 2046A-82120 |
| 2046A35174 | 2046A82120 |
| 204645A-65123 | 2046A-65119 |
| 204645A65123 | 2046A65119 |
| 20S-60-82120 | 20T-60-87120 |
| 20S6082120 | 20T6087120 |
| 2401-9082K | 2401-9140K |
| 24019082K | 24019140K |
| 2401-6292KT | 2401-9234KT |
| 24016292KT | 24019234KT |
| 2401-9278KT | 2401-9301AKT |
| 24019278KT | 24019301AKT |
| 3302255-0133 | 2401-9237KT |
| 33022550133 | 24019237KT |
