Packing 8058352 Hitachi Parts For EX125WD-5 EX200-5 ZX470LC-5B
Price:
Negotiable
MOQ:
10 sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
Packing 8058352 Hitachi Parts For EX125WD-5 EX200-5 ZX470LC-5B
Description: Gasket seal is a seal together wih a gap placed in the annular groove of the sleeve.The sleeve rotates with the shaft. Sealing ring through the clearance after compression elastic pressure on the fixed part.Hole wall can play the role of sealing. All contact surfaces need to be hardened and polished. The seal ring is made of chromium bearing wear-resistant cast iron, which can be used for sliding speed less than 100m/s.
| Product name | Packing 8058352 - Hitachi Parts For CHR70, EX125WD-5 EX200-5 |
| Brand | SUNCAR |
| MOQ | Trial order is accepted |
| Sample order | Yes |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Packing | PP bag inside,carton box outside. |
|
Place of origin |
Guangdong province,China |
| Compatible equipment | Hitachi |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal |
| AppliC-A-Tion | Construction machinery seal |
| Supply ability | 550 pcs per week |
| Material | Rubber |
| Seal style | Hydraulic Gasket Seal,Gearbox Seal;Packing;Mechanical Seal |
| Shipping weight(kg) | 0.1406 |
Compatible Equipment Model:
| ZX450 | ZX450-3 | ZX450-3F | ZX450H | ZX450H-HHE |
| ZX450LC-3-DH | ZX460LCH-AMS | ZX460LCH-HCME | ZX470-5G | ZX470H-3 |
| ZX470H-3-HCMC | ZX470H-3F | ZX470H-5G | ZX470LC-5B | ZX470LC-5G |
| ZX470LCH-5B | ZX470LCH-5G | ZX470LCR-5G | ZX470R-3 | ZX470R-3F |
| ZX520LCR-3 | ZX520LCH-3F | ZX520LCH-3 | ZX500LC-3F | ZX500LCH |
| ZX470R-5G | ZX480MT | ZX480MTH | ZX500LC | ZX500LC-3 |
| ZX520LCR-3F | E330D | E336D | E336D2 | K5V200DT |
Here Are Some Oem Number For Your Reference:
| 714-07-12290 | 7140712290 | 714-16-19220 |
| 419-15-12122 | 4191512122 | 569-15-12860 |
| 07018-31104 | 701831104 | 144-15-22881 |
| 07018-31004 | 701831004 | 562-15-19220 |
| 16602-52291 | 1660252291 | 133-15-12870 |
| 16602-52281 | 1660252281 | 22W-75-15440 |
| 16382-52511 | 1638252511 | 362-15-19220 |
| 419-15-12210 | 16Y-15-00025 | 232-15-19270 |
| 419-15-12190 | 16Y-15-00027 | 714-07-12740 |
| 419-15-12580 | 16Y-15-00080 | 714-08-19220 |
| 714-08-19230 | 16Y-15-00044 | 103-15-29260 |
| 714-07-19320 | 582-15-19240 | 103-15-29270 |
| 714-07-49210 | 154-15-22811 | 144-15-22871 |
| 714-07-49220 | 198-15-29210 | 145-15-42810 |
| 103-15-12820 | 195-15-29210 | 145-15-42820 |
| 124-15-41920 | 427-15-19210 | 113-15-12851 |
| 415-15-12750 | 198-15-29220 | 113-15-29220 |
| 562-15-19210 | 238-15-19220 | 113-15-29250 |
| 714-16-19210 | 113-15-12870 | 113-15-29260 |
| 714-11-19230 | 238-15-19210 | 113-15-29240 |
| 415-15-12360 | 714-12-39210 | 714-12-17170 |
| 425-15-19260 | 714-12-39230 | 714-12-17180 |
| 287-15-19210 | 7720-50-2710 | 103-15-29210 |
| 714-16-19230 | 14Y-22-13270 | 113-15-12840 |
| 714-10-19220 | 421-33-11440 | 113-15-12861 |
| 714-08-19210 | 421-33-11480 | 568-15-12860 |
| 415-15-12370 | 425-33-11410 | 155-15-12820 |

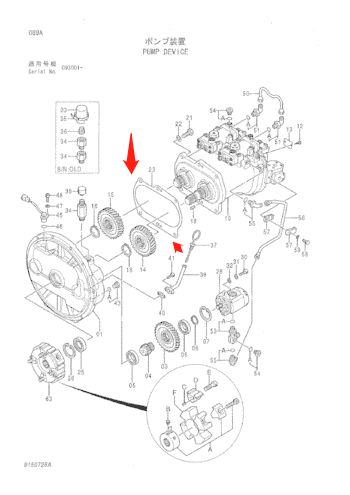

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 9150726 | [1] | PUMP DEVICE | |
| -9152668 | [1] | PUMP DEVICE | |
| 1 | 1020336 | [1] | CASING;GEAR |
| 3 | 3063840 | [1] | GEAR;PILOT |
| 4 | 3055594 | [1] | SHAFT;GEAR |
| 5 | 958740 | [2] | BRG.;BALL |
| 6 | 962002 | [1] | RING;RETAINING |
| 7 | 991725 | [1] | RING;RETAINING |
| 10 | +++++++ | [1] | PUMP;UNIT |
| 12 | M492564 | [2] | SCREW;DRIVE |
| 13 | 3075798 | [1] | NAME-PLATE |
| 14 | 3063842 | [1] | GEAR |
| 15 | 3063843 | [1] | GEAR |
| 16 | 4274552 | [2] | RING;RETAINING |
| 18 | 4099290 | [2] | PIN;SPRING |
| 21 | J901645 | [6] | BOLT |
| 22 | A590916 | [6] | WASHER;SPRING |
| 23 | 8058352 | [1] | PACKING |
| 25 | 4310055 | [1] | SEAL;OIL |
| 26 | 991725 | [1] | RING;RETAINING |
| 28 | 4276918 | [1] | PUMP;GEAR |
| 30 | M341028 | [2] | BOLT;SOCKET |
| 31 | 984054 | [2] | WASHER;SPRING |
| 32 | 4114402 | [2] | WASHER |
| 33 | 4277223 | [1] | CAP |
| 34 | 4317633 | [2] | ADAPTER |
| 34 | 4379209 | [1] | ADAPTER |
| 35 | 4055312 | [1] | CLIP;BAND |
| 36 | 4234782 | [1] | PLUG |
| 36 | 4379582 | [1] | CAP |
| 37 | 4340855 | [1] | GAUGE;LEVEL |
| 39 | 9743977 | [1] | PIPE |
| 40 | 9742779 | [1] | PACKING |
| 41 | M340816 | [2] | BOLT;SOCKET |
| 43 | 9134111 | [1] | PLUG |
| 43A. | 4509180 | [1] | O-RING |
| 45 | 4265372 | [1] | SENSOR;REVOL. |
| 46 | 4306888 | [1] | O-RING |
| 47 | A590106 | [1] | WASHER;PLANE |
| 48 | M340616 | [1] | BOLT;SOCKET |
| 50 | 4369148 | [1] | PIPE;E |
| 51 | 4179837 | [2] | FITTING;PIPE |
| 51A. | 957366 | [1] | O-RING |
| 53 | 4278547 | [1] | ADAPTER |
| 53A. | 4506418 | [1] | O-RING |
| 54 | 9134110 | [2] | PLUG |
| 54A. | 957366 | [1] | O-RING |
| 55 | 4179837 | [2] | FITTING;PIPE |
| 55A. | 957366 | [1] | O-RING |
| 56 | 3071564 | [1] | PIPE |
| 57 | 9736515 | [2] | CLAMP |
| 58 | J900830 | [1] | BOLT |
| 59 | A590908 | [1] | WASHER;SPRING |
| 63 | 4310056 | [1] | COUPLING |
| 63A. | 4340960 | [1] | HUB |
| 63B. | 4334899 | [2] | SCREW;SET |
| 63C. | 4101345 | [4] | PIN;SPRING |
| 63D. | 4334892 | [4] | INSERT |
| 63E. | 4334894 | [4] | BOLT;SOCKET |
| 63F. | 4334891 | [1] | ELEMENT |
