China 9108066 Piston Pilot Valve Hitachi Parts For EX60-2 EX300-2 EX100-2 for sale

9108066 Piston Pilot Valve Hitachi Parts For EX60-2 EX300-2 EX100-2

Price Negotiable

Price: Negotiable

MOQ: 10 pcs

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

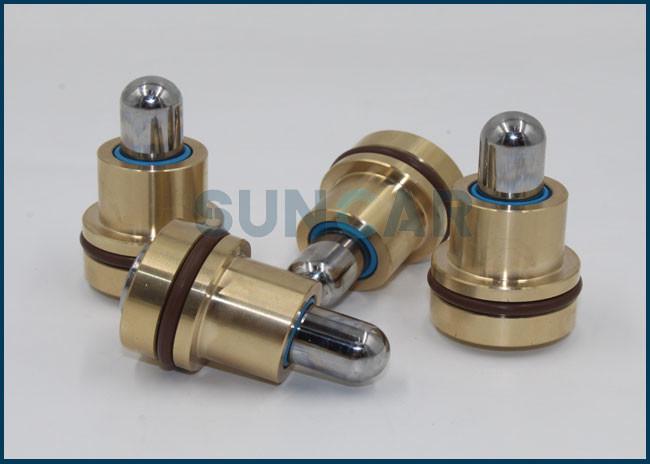

9108066 Piston Pilot Valve Hitachi Parts For EX60-2 EX300-2 EX100-2

Description: A pilot valve is a small valve that controls a limited-flow control feed to a separate piloted valve. Typically, this separate valve controls a high pressure or high flow feed.Valve pusher tool used for fitting a snap -in motor cycle and scooter tubeless valve onto the rim. The fitment is done by using the tool to push the rear of the valve into the rim hole until it 'snaps' into place.

Product name	9108066 Pusher Assy Hitachi Parts For EX-2 EX-3 EX-5 Supplier Valve
Brand name	SUNCAR
Warranty	180 days(6 Months) from the day of shipment
Loading Port	Huangpu port,China
Stock	Yes
Terms of payments	Western Union, L/C, T/T, Bank Transfer, Paypal
OEM number	9108066
Original place	Guangdong provice,China
AppliC-A-Tion	Excavator Hitachi parts
Shipping weight (kg)	0.1406
Delivery time	3-5 days after payment received(public holiday excluded)
Condition	100% New
Compatible equipment	Excavator Hitachi
Quality
Type	Construction device;Excavator parts
AppliC-A-Tion industry	Building material shops, Machinery repair shops, Manufacturing plant,Construction work,Energy &mining

AppliC-A-Ted Models:

EX60-2	EX100-2	EX120-2
EX200-2	EX220-2	EX300-2
EX350-2	EX400-2	EX60-3
EX100-3	EX120-3	EX200-3
EX220-3	EX300-3	EX350-3
EX400-3	EX60-5	EX100-5
EX120-5	EX200-5	EX220-5
EX300-5	EX400-5

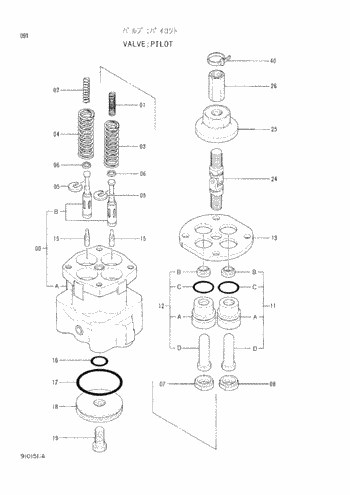

Relative Parts:

Pos.	Part No	Qty	Parts name
	9101511	[1]	VALVE;PILOT
0	7024552	[1]	CASING ASS'Y
0	7025204	[1]	CASING ASS'Y
0	7025204	[1]	CASING ASS'Y
00A.	+++++++	[1]	CASING
00B.	+++++++	[4]	SPOOL
1	4201915	[2]	SPRING;COMPRES.
2	4166686	[2]	SPRING;COMPRES.
3	4195421	[2]	SPRING;COMPRES.
4	4186544	[2]	SPRING;COMPRES.
5	4286796	[4]	SPACER
6	4173208	[20]	SHIM
7	4177896	[2]	GUIDE;SPRING
8	4286797	[2]	GUIDE;SPRING
11	9107447	[2]	PUSHER ASS'Y
11A.	3058790	[1]	BUSHING
11B.	4276152	[1]	SEAL;OIL
11C.	A810025	[1]	O-RING
11D.	3058791	[1]	PUSHER
12	9108066	[2]	PUSHER ASS'Y
12A.	3058790	[1]	BUSHING
12B.	4276152	[1]	SEAL;OIL
12C.	A810025	[1]	O-RING
12D.	3051298	[1]	PUSHER
13	4269475	[1]	PLATE
15	4184929	[4]	PISTON
16	4286874	[1]	SEAL;WASHER
16	4287626	[1]	O-RING
17	A810060	[1]	O-RING
18	4184954	[1]	PLATE
19	M341225	[1]	BOLT;SOCKET
24	4183035	[1]	JOINT;UNIVERSAL
24	4285209	[1]	JOINT;UNIVERSAL
25	4253746	[1]	CAM
26	4182067	[1]	JOINT;SCREW
40	+++++++	[1]	CLIP;BAND
