DKBI3 Double Lip Frame Dust Seal Hydraulic Cylinder Wiper Seals
DKBI3 Double Lip Frame Dust Seal Hydraulic Cylinder Wiper Seals
Description: Made by , DKB dust seal is used to prevent dust, dirt, sand, and metal chips from entering the hydraulic cylinder. Due to reducing the intrusion of external contaminants into the sliding element creates a risk of scratches. Besides, the special design of the lip of the dust ring can achieve an excellent dustproof effect. The DKB type has a strong wear resistance, a small permanent deformation, and is characterized by the use of proven external mechanical shock resistance. The diameter of the seal groove is not only tightly fitted to the metal, but also the dust seal can be securely mounted at an appropriate position in the axially formed groove.
Products Details:
| Product name | DKBI3 Double Lip Frame Dust Seal Hydraulic Cylinder Wiper Seals |
| Brand | SUNCAR |
| Temperature | -20~+100℃ |
| Speed | ≤20m/s |
| Press | 0-31.5 mpa |
| AppliC-A-Tion | Engine, Hydraulic pumps, vacuum pumps, mixers, actuators |
| Material | PTFE+Stainless Steel |
Size Infoemation:

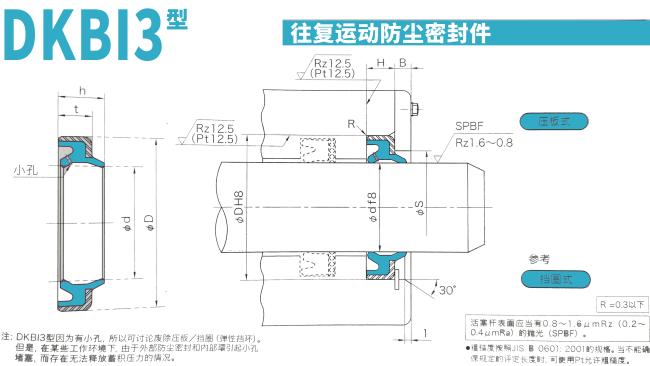

| d | D | t | h | H | B |
| 20 | 32 | 6 | 9 | 6+0.5;6+0.3 | 4 |
| 25 | 37 | ||||
| 30 | 42 | ||||
| 32 | 44 | ||||
| 35 | 47 | 7 | 10 | 7+0.5;7+0.3 | |
| 40 | 52 | ||||
| 45 | 57 | ||||
| 50 | 62 | ||||
| 55 | 69 | 8 | 11 | 8+0.6;8+0.4 | |
| 60 | 74 | ||||
| 65 | 79 | ||||
| 70 | 84 | ||||
| 75 | 89 | ||||
| 80 | 94 | 12 | |||
| 85 | 99 | 11 | |||
| 90 | 104 | ||||
| 95 | 109 | ||||
| 100 | 114 | ||||
| 105 | 121 | 9 | 12 | 9+0.6;9+0.4 | 5 |
| 110 | 126 | ||||
| 115 | 131 | ||||
| 120 | 136 | ||||
| 130 | 146 | ||||
| 140 | 160 | 10 | 14 | 10+0.6;10+0.4 |
OEM NO. For Your Reference:
| FD3720E0 | FD0995F1 | FD0995F2 | FD4196E1 |
| FD3828G0 | FD1301E1 | FD1301E2 | FD4272I3 |
| FD3913E0 | FD1664E1 | FD1664E2 | FD4326E2 |
| FD3976E0 | FD1870E1 | FD1870E2 | FD4438F1 |
| FD4046E1 | FD2041E2 | FD2041E3 | FD4533E1 |
| FD4046E1 | FD2342F1 | FD2342F2 | FD4196E2 |
| FD6722E0 | FD2633G1 | FD2633G2 | FD4272I2 |
| FD4196E0 | FD2831E1 | FD2831E2 | FD4326E3 |
| FD4196E0 | FD3033E4 | FD3033E3 | FD4438F2 |
| FD4272I0 | FD3187E1 | FD3187E2 | FD4533E2 |
| FD4326E0 | FD3381E2 | FD3381E1 | FD4046E3 |
| FD1301E3 | FD3493E5 | FD3493E3 | FD6722E3 |
| FD4438F0 | FD3596E3 | FD3596E2 | FD4046E4 |
| FD4326E1 | FD3720E2 | FD3720E1 | FD6722E2 |
| FD4533E0 | FD3828G2 | FD3828G3 | FD0995F0 |
| FD4533E3 | FD3913E2 | FD3913E3 | FD1664E0 |
| FD6722E1 | FD3976E1 | FD3976E2 | FD1870E0 |
♣Advantage:
● Insensibility against shock loads and pressure peaks
● High resistance against extrusion
● Sufficient lubriC-A-Tion due to pressure medium between the sealing lips
● Suitable for hardest working conditions
● Easy installation
