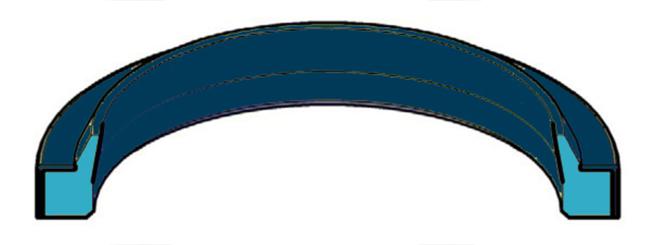

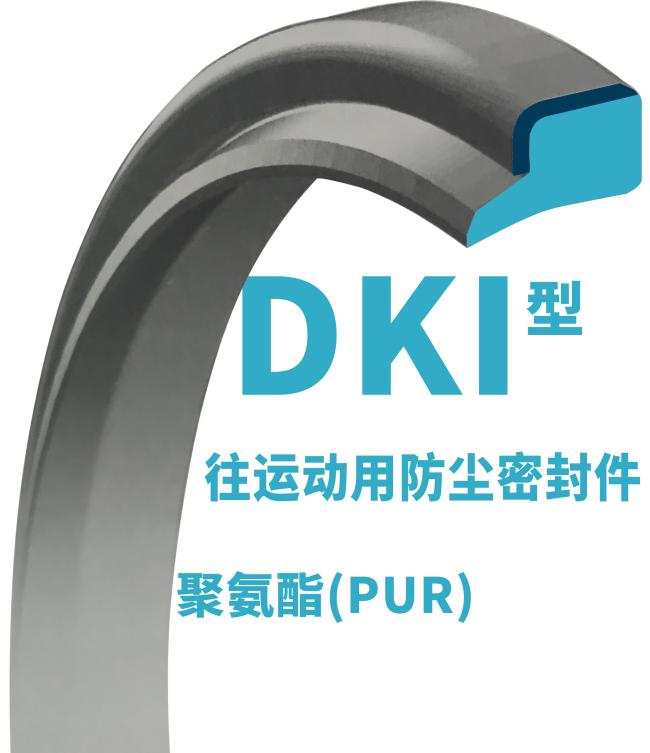

DKI Hydraulic Wiper Dust Seal
DKI Hydraulic Wiper Dust Seal
DKI Wiper Seal, DKI Wiper Seal metal skeleton reciproC-A-Ting incompetent sports dust seal, dust seal ring, a hole with rotating glyph ring, combination seal ring (GSF, GSJ) nylon product, J type dust ring conveying With more than 2,000 varieties. Certainly, it is widely used in petroleum O-rings, O-rings for the chemical industry, O-rings for metallurgy, O-rings for mining, O-rings for construction machinery, O for beer equipment. Besides, the sealing ring, O-ring for transportation, O-ring for shipbuilding, O-ring for textile, etc. Wiper seal can be used not only in industrial production but also in the textile industry.
Detail Information:
| d | D | t | h | H |
| 6.3 | 16 | 5 | 7 | 5+0.5;5+0.3 |
| 7.1 | 17 | |||
| 8 | 18 | |||
| 9 | 19 | |||
| 10 | 20 | |||
| 11.2 | 21 | |||
| 12.5 | 23 | |||
| 14 | 24 | |||
| 15 | 25 | |||
| 16 | 26 | |||
| 18 | 30 | 6 | 9 | 6+0.5;6+0.3 |
| 20 | 32 | |||
| 22.4 | 34.2 | |||
| 25 | 37 | |||
| 27 | 39 | |||
| 28 | 40 | |||
| 30 | 42 | |||
| 31.5 | 44 | 7 | 10 | 7+0.5;7+0.3 |
| 32 | 44 | |||
| 35 | 47 | |||
| 35.5 | 47.5 | |||
| 38 | 50 | |||
| 40 | 52 | |||
| 45 | 57 | |||
| 47 | 59 | |||
| 50 | 62 | |||
| 53 | 67 | 8 | 11 | 8+0.6;8+0.4 |
| 55 | 69 | |||
| 56 | 70 | |||
| 60 | 75 | |||
| 63 | 77 | |||
| 64 | 78 | |||
| 65 | 79 | |||
| 67 | 81 | |||
| 70 | 84 | |||
| 80 | 94 | |||
| 100 | 114 | |||
| 105 | 121 | 9 | 12 | 9+0.6;9+0.4 |
| 106 | 122 | |||
| 108 | 125 | |||
| 110 | 126 | |||
| 112 | 128 | |||
| 115 | 136 | |||
| 118 | 134 | |||
| 120 | 136 | |||
| 125 | 141 | |||
| 130 | 146 | |||
| 140 | 160 | 10 | 14 | 10+0.6;10+0.4 |
| 145 | 165 | |||
| 150 | 170 | |||
| 155 | 175 | |||
| 160 | 180 | |||
| 165 | 185 | |||
| 170 | 190 | |||
| 200 | 225 | 12 | 17 | 12+0.7;12+0.5 |
| 220 | 245 | |||
| 236 | 261 | |||
| 245 | 270 | |||
| 260 | 285 | |||
| 265 | 290 | |||
| 280 | 310 | 16 | 22 | 16+0.7;16+0.5 |
| 290 | 320 | |||
| 300 | 330 |
Component Seals Part:
| Oil seal |
TC,TCK, SC,SB,TCZ,TCV,TCN,TC4,TB4,TCJ,SA1J,VAJ,KA3J,QC,QLFY,SBB,MG, WT,WTT,OKC3,MOX,MOD,MOY,CFW,TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC, DB etc |
| Rod seal | IDI,ISI,IUIS,IUH,UNI,SPNO,SPN,SPNS |
| Buffer seal | HBTS, HBY,HBTY,URE,HBY-PARKER,HBY- |
| Ring | O Ring, D Ring, V RING, U RING |
| Piston seal |
SPG, SPGW2,SPWV,SPGO,SPGO-A,SPGA,OK,OK-WYS, KDAS/DAS,SPG,SPGM,SPGN,SPGC,OHM-MYS,CPI,CPH,ODI,OSI,OUIS,OUHR,OKH,OUY. |
| Piston rod seal | UPI,USI,UPH,USH,V99F,V96H,UN |
| Rotary seal | DLI,DLI2,VAY |
| Wear ring | WR, KZT, RYT |
| Wiper seal | DH, DKB, DKBI, DKI, DLI, DWI, LBH, LPI, VAY |
| Dust seal | DKI,DWI,DWIR,DKBI,DKBI3,DKBZ,DKH,DKB,GA,DSI,LBI,LBH,LBHK,DSPB,DHS,FA |
Some OEM number here for your reference:
| FD0064A0 | FD3913A0 | FD3313A0 |
| FD0095A0 | FD3957A0 | FD3366A0 |
| FD0142A0 | FD3976A0 | FD3381A0 |
| FD0199A0 | FD4046A0 | FD3447A0 |
| FD0258A0 | FD4142A0 | FD3493A0 |
| FD0332A0 | FD4168A0 | FD3546A0 |
| FD0412A0 | FD4187E0 | FD3596A0 |
| FD0513A0 | FD4196A0 | FD3720A0 |
| FD0586A0 | FD4232A0 | FD3828A0 |
| FD0677A0 | FD4272E0 | FD2729A0 |
| FD0815A0 | FD4317A0 | FD2831A0 |
| FD0995A0 | FD4326A0 | FD2985A0 |
| FD1203A0 | FD4393A0 | FD3033A0 |
| FD1301A0 | FD4438A0 | FD3089A0 |
| FD1503A0 | FD4476A0 | FD3187A0 |
| FD1536A0 | FD4492A0 | FD2217A0 |
| FD1664A0 | FD4533A0 | FD2342A0 |
| FD1803A0 | FD4578A0 | FD2633A0 |
| FD1870A0 | FD4615A0 | FD4733A0 |
| FD2041A0 | FD4663E0 | FD5622A0 |
| FD5480A0 | FD5451E0 | FD5396A0 |
| FD2149A0 | FD4704A0 | FD5584E0 |
