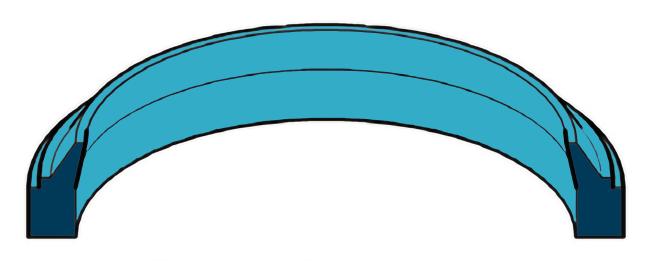

GHP Series Dust Wiper Seals in Piston Rod Seal
GHP Series Dust Wiper Seals in Piston Rod Seal
GHP wiper or dust seal represent an essential component for all hydraulic and pneumatic equipment. The main feature of GHP is to provide complete protection against impurities such as dust, fluids or other types of contamination which could eventually reach the sealing system through the rod and cause damage to all internal components of the cylinder. This type of wiper seal is suitable for appliC-A-Tions particularly exposed to dusty and humid enviornments and it is also very easy to fit or assemble.
| Product name | GHP Series Dust Wiper Seals in Piston Rod Seal |
| Brand | SUNCAR |
| Medium | Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others. |
| Temparature | -35~+100℃ |
| Material | PUR U801 |
| Speed | 0.8m/s |
| Applied device | Industrial hydraulic / Machine tools / Presses |
| Material strength | Higher mechanical strength, high abrasion, wear and extrusion resistance, as well as high tear and elongation at break resistance. Also have good flexibility and very good aging and ozone resistance. |
| Shipping ways | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
Detail Info. :
| d | D | t | H | d | D | t | H |
| 6 | 12 | 3 | 5 | 105 | 113 | 5 | 10 |
| 8 | 14 | 3 | 5 | 110 | 122 | 5 | 10 |
| 10 | 16 | 3 | 5 | 120 | 132 | 5 | 10 |
| 12 | 18 | 3 | 5 | 125 | 137 | 5 | 10 |
| 14 | 20 | 3 | 5 | 130 | 142 | 5 | 10 |
| 16 | 22 | 3 | 5 | 135 | 145 | 5 | 10 |
| 18 | 24 | 3 | 5 | 140 | 152 | 5 | 10 |
| 20 | 28 | 4 | 7 | 145 | 157 | 5 | 10 |
| 22 | 30 | 4 | 7 | 150 | 162 | 5 | 10 |
| 25 | 33 | 4 | 7 | 160 | 172 | 5 | 10 |
| 28 | 36 | 4 | 7 | 170 | 182 | 5 | 10 |
| 30 | 38 | 4 | 7 | 180 | 192 | 5 | 10 |
| 32 | 40 | 4 | 7 | 190 | 202 | 5 | 10 |
| 35 | 43 | 4 | 7 | 200 | 212 | 5 | 10 |
| 36 | 44 | 4 | 7 | 220 | 236 | 5 | 10 |
| 40 | 48 | 4 | 7 | 230 | 246 | 5 | 10 |
| 45 | 53 | 4 | 7 | 240 | 256 | 5 | 10 |
| 50 | 58 | 4 | 7 | 250 | 266 | 5 | 10 |
| 55 | 63 | 4 | 7 | 260 | 276 | 5 | 10 |
| 56 | 64 | 4 | 7 | 270 | 286 | 5 | 10 |
| 60 | 68 | 4 | 7 | 280 | 296 | 5 | 10 |
| 63 | 71 | 4 | 7 | 290 | 306 | 5 | 10 |
| 65 | 73 | 4 | 7 | 300 | 320 | 5 | 10 |
| 70 | 78 | 4 | 7 | 310 | 330 | 5 | 10 |
| 75 | 83 | 4 | 7 | 320 | 340 | 5 | 10 |
| 80 | 88 | 4 | 7 | 360 | 380 | 5 | 10 |
| 85 | 93 | 4 | 7 | 400 | 420 | 5 | 10 |
| 90 | 98 | 4 | 7 | 95 | 103 | 4 | 7 |
Characteristics:
-
Good seating at the outer diameter.
-
Very good wiping action.
-
Wiper can be used for a wide.
-
Temperature range.
-
No twisting in the housing and no pressure build-up between seal and wiper.
-
Some OEM number here for your reference:
| FD3720E0 | FD0995F1 | FD0995F2 | FD4196E1 |
| FD3828G0 | FD1301E1 | FD1301E2 | FD4272I3 |
| FD3913E0 | FD1664E1 | FD1664E2 | FD4326E2 |
| FD3976E0 | FD1870E1 | FD1870E2 | FD4438F1 |
| FD4046E1 | FD2041E2 | FD2041E3 | FD4533E1 |
| FD4046E1 | FD2342F1 | FD2342F2 | FD4196E2 |
| FD6722E0 | FD2633G1 | FD2633G2 | FD4272I2 |
| FD4196E0 | FD2831E1 | FD2831E2 | FD4326E3 |
| FD4196E0 | FD3033E4 | FD3033E3 | FD4438F2 |
| FD4272I0 | FD3187E1 | FD3187E2 | FD4533E2 |
| FD4326E0 | FD3381E2 | FD3381E1 | FD4046E3 |
| FD1301E3 | FD3493E5 | FD3493E3 | FD6722E3 |
| FD4438F0 | FD3596E3 | FD3596E2 | FD4046E4 |
| FD4326E1 | FD3720E2 | FD3720E1 | FD6722E2 |
Component Seals Part:
| Oil Seal |
TC,TCK, SC,SB,TCZ,TCV,TCN,TC4,TB4,TCJ,SA1J, VAJ,KA3J,QC,QLFY,SBB,MG,WT,WTT,OKC3, MOX,MOD,MOY,CFW,TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC, DB |
| Rod Seal | IDI,ISI,IUIS,IUH,UNI,SPNO,SPN,SPNS |
| Buffer Seal | HBTS, HBY,HBTY,URE,HBY-PARKER,HBY- |
| Ring | O Ring, D Ring, V RING, U RING |
| Piston seal |
SPG, SPGW2,SPWV,SPGO,SPGO-A,SPGA,OK,OK-WYS, KDAS/DAS,SPG,SPGM,SPGN,SPGC,OHM-MYS, CPI,CPH,ODI,OSI,OUIS,OUHR,OKH,OUY. |
| Piston Rod Seal | UPI,USI,UPH,USH,V99F,V96H,UN |
| Rotary Seal | DLI,DLI2,VAY |
| Wear Ring | WR, KZT, RYT |
| Wiper Seal | DH, DKB, DKBI, DKI, DLI, DWI, LBH, LPI, VAY |
| Dust Seal |
DKI,DWI,DWIR,DKBI,DKBI3,DKBZ,DKH,DKB,GA,DSI,LBI,LBH, LBHK,DSPB,DHS,FA |
