XKAY-00553 XKAY00553 Swing Motor Seal Kit For Hyundai HCE Parts R160LC-7
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
XKAY-00553 Swing Motor Seal Kit For Hyundai HCE Parts R160LC-7
Description: XKAY-00553 XKAY00533 swing motor seal kit Hyundai HCE part,compatible for R160LC-7 R170W-7 R180LC-7 R200W-7 R210LC-7A R210LC-9 R215LC-7 R450LC-A R480LC-9 R500LC-7 R520LC-9 R210LC-7 R510LC-7.The main function is protect oil from flowing and oil resistance.
| Product name | XKAY-00553 Swing Motor Seal Kit For Hyundai HCE Parts R160LC-7 |
| Brand name | SUNCAR |
| MOQ | 10 sets |
| Feuture |
Oil resistance;long life;weather resistance;temparature resistance. |
| AppliC-A-Tion | For standard and sour gas appliC-A-Tion |
| Terms of payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Packing details | PP bag inside,carton box outside. |
| Original place | Guangdong provice,China |
| Shipping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Warranty | 180 days from the days of shippment |
| OEM number | XKAY-00553,XKAY00553 |
|
CertifiC-A-Tion |
ISO9001 |
|
Stock |
Have enough stock for selling |
| Compatible equipment | Excavator;HYUNDAI |
| Loading port | Huangpu port,China |
| Condition | 100% new |
| Supply ability | 2200 sets per month |
| Compatible model | R160LC-7 R170W-7 R180LC-7 R200W-7 R210LC-7A R210LC-9 R215LC-7 R450LC-A R480LC-9 R500LC-7 R520LC-9 R210LC-7 R510LC-7 |
| Advantage | High and low temperature resistance;High and low pressure resistance;Waterproof;weather resistance;Long life. |
| Standard or nonstandard | Standard |
Soem Oem Number Here For Your Reference:
| XKAY-00553 | XKAY-01060 | K9008336 | K9004885 |
| XKAH-00616 | XKAY-00553 | K9006619 | K9003804 |
| MA5511 | MA5503 | K9005726 | K9002875 |
| K1000101KT | K9000476 | K9001903 | K90019003 |
| MA5507 | 0816217 | K9004885A | K9002069 |

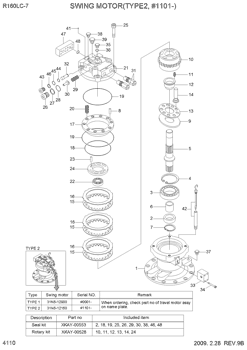

Parts on group SWING MOTOR(TYPE 2, #1101-):
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| *-1. | 31N5-12130 | [1] | SWING MOTOR UNIT |
| *-1. | 31N5-12130 | [1] | SWING MOTOR UNIT |
| 1. | XKAY-01394 | [1] | BODY |
| 1. | XKAY-02153 | [1] | BODY |
| K2. | XKAY-00521 | [1] | SEAL-OIL |
| 3. | XKAY-00522 | [1] | BEARING-ROLLER |
| 4. | XKAY-00523 | [1] | RING-SNAP |
| 5. | XKAY-00524 | [1] | SHAFT |
| 6. | XKAY-00525 | [1] | BUSHING |
| 7. | XKAY-00526 | [1] | RING-STOP |
| 8. | XKAY-00625 | [1] | PIN |
| 9. | XKAY-00527 | [1] | PLATE-SHOE |
| *-R. | XKAY-00528 | [1] | ROTARY KIT |
| 1-A. | XKAY-00529 | [1] | CYLINDER BLOCK KIT |
| 10. | XKAY-00633 | [1] | BLOCK-CYLINDER |
| 11. | XKAY-00531 | [9] | SPRING |
| 24. | XKAY-00544 | [1] | PLATE-VALVE |
| 1-B. | XKAY-00532 | [1] | RETAINER KIT |
| 12. | XKAY-00533 | [1] | GUIDE-BALL |
| 13. | XKAY-00534 | [1] | PLATE-SET |
| 1-C. | XKAY-00534 | [1] | PLATE-SET |
| NK14. | XKAY-00536 | [9] | PISTON ASSY |
| 15. | XKAY-00537 | [3] | PLATE-FRICTION |
| 16. | XKAY-00538 | [3] | PLATE |
| 17. | XKAY-00632 | [1] | PISTON-BRAKE |
| K18. | XKAY-00468 | [1] | O-RING |
| K19. | XKAY-00540 | [2] | O-RING |
| 20. | XKAY-00541 | [20] | SPRING |
| 21. | XKAY-00630 | [1] | COVER-REAR |
| 22. | XKAY-00543 | [1] | BEARING-NEEDLE |
| 23. | XKAY-00382 | [2] | PIN |
| K25. | XKAY-00546 | [4] | BOLT-WRENCH |
| K26. | XKAY-00309 | [2] | PLUG |
| 27. | XKAY-00141 | [2] | RING-BACK UP |
| 28. | XKAY-00310 | [2] | O-RING |
| K29. | XKAY-00311 | [2] | SPRING |
| K30. | XKAY-00312 | [2] | CHECK |
| 31. | XKAY-00313 | [2] | RELIEF VALVE ASSY |
| 32. | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS |
| 33. | XKAY-00315 | [1] | TIME DELAY VALVE ASSY |
| 34. | XKAY-00149 | [3] | BOLT-WRENCH |
| 35. | XKAY-00150 | [3] | PLUG |
| 36. | XKAY-00151 | [3] | O-RING |
| 37. | XKAY-00140 | [1] | PLUG |
| K38. | XKAY-00975 | [1] | PLUG |
| 39. | XKAY-00548 | [1] | PLUG |
| 41. | XKAY-00277 | [2] | RIVET |
| 42. | XKAY-01986 | [1] | GAUGE-LEVEL |
| 42-1. | XKAY-01988 | [1] | PLUG |
| 43. | XKAY-00322 | [2] | PLUG |
| 44. | XKAY-00247 | [2] | O-RING |
| 45. | XKAY-00324 | [2] | O-RING |
| K46. | XKAY-00322 | [2] | PLUG |
| 47. | XKAY-00551 | [1] | FLANGE |
| K48. | XKAY-00552 | [2] | O-RING |
| K. | XKAY-00553 | [1] | SEAL KIT |
