420-00238 42000238 Pilot Valve Seal Kit Fits DOOSAN SOLAR DH220-5
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
420-00238 42000238 Pilot Valve Seal Kit Fits DOOSAN SOLAR DH220-5
Decsription:
| Product name | Excavator Parts Pilot Valve Seal Kit For All C-A-T and SUNCARSUNCARSUNCARSUNCARVOLVO Series |
| Brand name | SUNCAR |
| Fit brand | DOOSAN-DAEWOO,SOLAR |
| OEM Number | 420-00238;42000238 |
| MOQ | 10 sets |
| Material | Fluorine rubber main oil seal + imported o-ring |
| Feuture |
Sealing performance/Wear resistance/High&low temperature resistence |
| Terms Of Payment | T/T, Western Union,Alipay,paypal |
| Packing details | PP bag inside,carton box outside. |
| Original Place | Guangdong provice,China |
| Shipping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Warranty | 180 days from the day after shippment |
| OEM &ODM Service | Provided |
|
CertifiC-A-Tion |
ISO9001 |
|
Stock |
Have rich stock for selling |
| Loading Port | Huangpu port,China |
| Condition | 100% new |
| Compatible model |
OTHER: DOOSAN-DAEWOO (NOW LOADING DATABASE) SOLAR Komatsu |

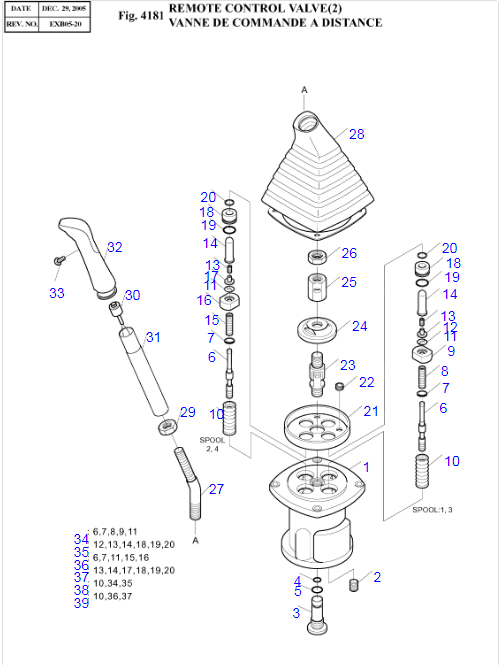

Parts on group :
| Pos. | Part No | Qty | Parts name |
| -. | 420-00237 | [1] | REMOTE CONTROL VALVE(L.H.) |
| -. | 420-00238 | [1] | REMOTE CONTROL VALVE(R.H.) |
| 1 | J95C1001 | [1] | CNH |
| 2 | WPT18 | [1] | PLUG |
| 3 | J95C1002 | [1] | PLUG |
| 4 | P0010A | [1] | O-RING |
| 5 | P0014 | [1] | O-RING |
| 6 | J95C1003 | [4] | SPOOL |
| 7 | J95C1004 | [1] | SHIM |
| 8 | JA0D3001 | [2] | SPRING(1.3) |
| 9 | JA0D3002 | [2] | SEAT;SPRING(1.3) |
| 10 | J95C1007 | [4] | SPRING |
| 11 | JA0D3003 | [4] | STOPPER |
| 12 | J97A5011 | [2] | STOPPER(1.3) |
| 13 | JA0D3004 | [4] | SPRING |
| 14 | JA0D3005 | [4] | ROD;PUSH |
| 15 | JA0D3006 | [2] | SPRING(2.4) |
| 16 | JA0D3007 | [2] | SEAT;SPRING(2.4) |
| 17 | J97A5012 | [2] | STOPPER(2.4) |
| 18 | JA0D3008 | [4] | PLUG |
| 19 | P0020 | [4] | O-RING |
| 20 | RSY12 | [4] | SEAL;ROD |
| 21 | J95C1010 | [1] | PLATE |
| 22 | J95C1011 | [1] | BUSHING |
| 23 | J95C1012 | [1] | JOINT AS'Y |
| 24 | J95C1013 | [1] | PLATE;SWASH |
| 25 | J95C1014 | [1] | NUT;HEX. |
| 26 | HNM14-1 | [1] | NUT;HEX. |
| *. | J97A1006LK | [1] | JOYSTICK SUB AS'Y(L.H) |
| *. | J97A1006RK | [1] | JOYSTICK SUB AS'Y(R.H) |
| 27 | J97A1001 | [1] | . CONNECTOR |
| 28 | J97A1003 | [1] | . BOOT(L.H) |
| 28 | J97A1002 | [1] | . BOOT(R.H) |
| 36 | JA0D3011 | [1] | SPOOL KIT(2.4) |
| 37 | JA0D3012 | [1] | PLUG KIT (2.4) |
| 38 | JA0D3013 | [1] | KIT AS'Y(1.3) |
| 39 | JA0D3014 | [1] | KIT AS'Y(2.4) |
