China JIS B 2401 P Series O-Ring For Mounting , Dynamic for sale

JIS B 2401 P Series O-Ring For Mounting , Dynamic

Price Negotiable

Price: Negotiable

MOQ: 100 sets

Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)

Brand: SUNCAR

Product Description

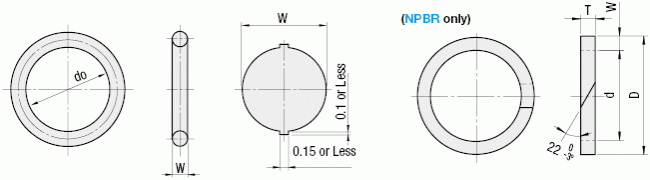

JIS Nominal Number	W	I.D.				Matching Material

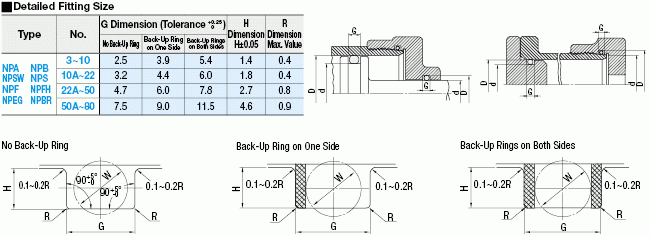

JIS Nominal Number	W	do	NPA, NPB Tolerance	NPS, NPSW NPEG Tolerance	NPF, NPFH Tolerance	d	Tolerance	D	Tolerance
P3	1.9±0.08	2.8	±0.14	±0.21	±0.16	3	0	6	0.05
P4		3.8	±0.14	±0.21	±0.16	4	-0.05	7	0
P5		4.8	±0.15	±0.22	±0.18	5		8
P6		5.8	±0.15	±0.22	±0.18	6		9
P7		6.8	±0.16	±0.24	±0.19	7		10
P8		7.8	±0.16	±0.24	±0.19	8		11
P9		8.8	±0.17	±0.25	±0.20	9		12
P10		9.8				10		13
P10A	2.4±0.09	9.8				10	0	14	0.06
P11		10.8	±0.18	±0.27	±0.21	11	-0.06	15	0
P11.2		11	±0.18	±0.27	±0.21	11.2		15.2
P12		11.8	±0.19	±0.28	±0.22	12		16
P12.5		12.3				12.5		16.5
P14		13.8				14		18
P15		14.8	±0.20	±0.30	±0.24	15		19
P16		15.8	±0.20	±0.30	±0.24	16		20
P18		17.8	±0.21	±0.31	±0.25	18		22
P20		19.8	±0.22	±0.33	±0.26	20		24
P21		20.8	±0.23	±0.34	±0.27	21		25
P22		21.8	±0.24	±0.36	±0.28	22		26
P22A	3.5±0.1	21.7				22	0	28	0.08
P22.4		22.1				22.4	-0.08	28.4	0
P24		23.7				24		30
P25		24.7	±0.25	±0.37	±0.30	25		31
P25.5		25.2	±0.25	±0.37	±0.30	25.5		31.5
P26		25.7	±0.26	±0.39	±0.31	26		32
P28		27.7	±0.28	±0.42	±0.33	28		34
P29		28.7	±0.29	±0.43	±0.34	29		35
P29.5		29.2				29.5		35.5
P30		29.7				30		36
P31		30.7	±0.30	±0.45	±0.36	31		37
P31.5		31.2	±0.31	±0.46	±0.37	31.5		37.5
P32		31.7	±0.31	±0.46	±0.37	32		38
P34		33.7	±0.33	±0.49	±0.39	34		40
P35		34.7	±0.34	±0.51	±0.40	35		41
P35.5		35.2				35.5		41.5
P36		35.7				36		42
P38		37.7	±0.37	±0.55	±0.44	38		44
P39		38.7				39		45
P40		39.7				40		46
P41		40.7	±0.38	±0.57	±0.45	41		47
P42		41.7	±0.39	±0.58	±0.48	42		48
P44		43.7	±0.41	±0.61	±0.49	44		50
P45		44.7	±0.41	±0.61	±0.49	45		51
P46		45.7	±0.42	±0.63	±0.50	46		52
P48		47.7	±0.44	±0.66	±0.52	48		54
P50		49.7	±0.45	±0.67	±0.54	50		56
P50A	5.7±0.13	49.7	±0.45	±0.67	±0.54	50	0	60	0.1
P52		51.6	±0.47	±0.70	±0.56	52	-0.1	62	0
P53		52.6	±0.48	±0.72	±0.57	53		63
P55		54.6	±0.49	±0.73	±0.58	55		65
P56		55.6	±0.50	±0.75	±0.60	56		66
P58		57.6	±0.52	±0.78	±0.62	58		68
P60		59.6	±0.53	±0.79	±0.63	60		70
P62		61.6	±0.55	±0.82	±0.66	62		72
P63		62.6	±0.56	±0.84	±0.67	63		73
P65		64.6	±0.57	±0.85	±0.68	65		75
P67		66.6	±0.59	±0.88	±0.70	67		77
P70		69.6	±0.61	±0.91	±0.73	70		80
P71		70.6	±0.62	±0.93	±0.74	71		81
P75		74.6	±0.65	±0.97	±0.78	75		85
P80		79.6	±0.69	±1.03	±0.82	80		90

Iron rubber O-rings are interchangeable with JISB2401 (P, G).

Characteristics of iron rubber
1. High tensile strength
2. High tensile strength
3. High flexibility
4. Load resistance
5. Wear resistance

OEM Numbers:

FR 0318	FR 0307	FR 0311	FR 0286
FR 0383	FR 0463	FR 0361	FR 0475
FR 0457	FR 0310	FR 0133	FR 0149
FR 0458	FR 0092	FR 0469	FR 0476
FR 0278	FR 0250	FR 0138	FR 0477
FR 0350	FR 0465	FR 0470	FR 0285
FR 0489	FR 0364	FR 0158	FR 0468
FR 0329	FR 0380	FR 0363	FR 0462
FR 0246	FR 0375	FR 0377	FR 0474
FR 0460	FR 0466	FR 0472	FR 0467
FR 0461	FR 0113	FR 0379	FR 0337
